Ricoh C231 - Color Drum (Option)

INSTALLATION PROCEDURE
3-17
SM C231/C237/C238
Installation
3.2.4 COLOR DRUM (OPTION)
There are three types of color drum units:
•
B4 Size: For the C231 B4 model
•
Legal Size: For the C231 Legal model
•
A4 Size: For the C231 A4 model

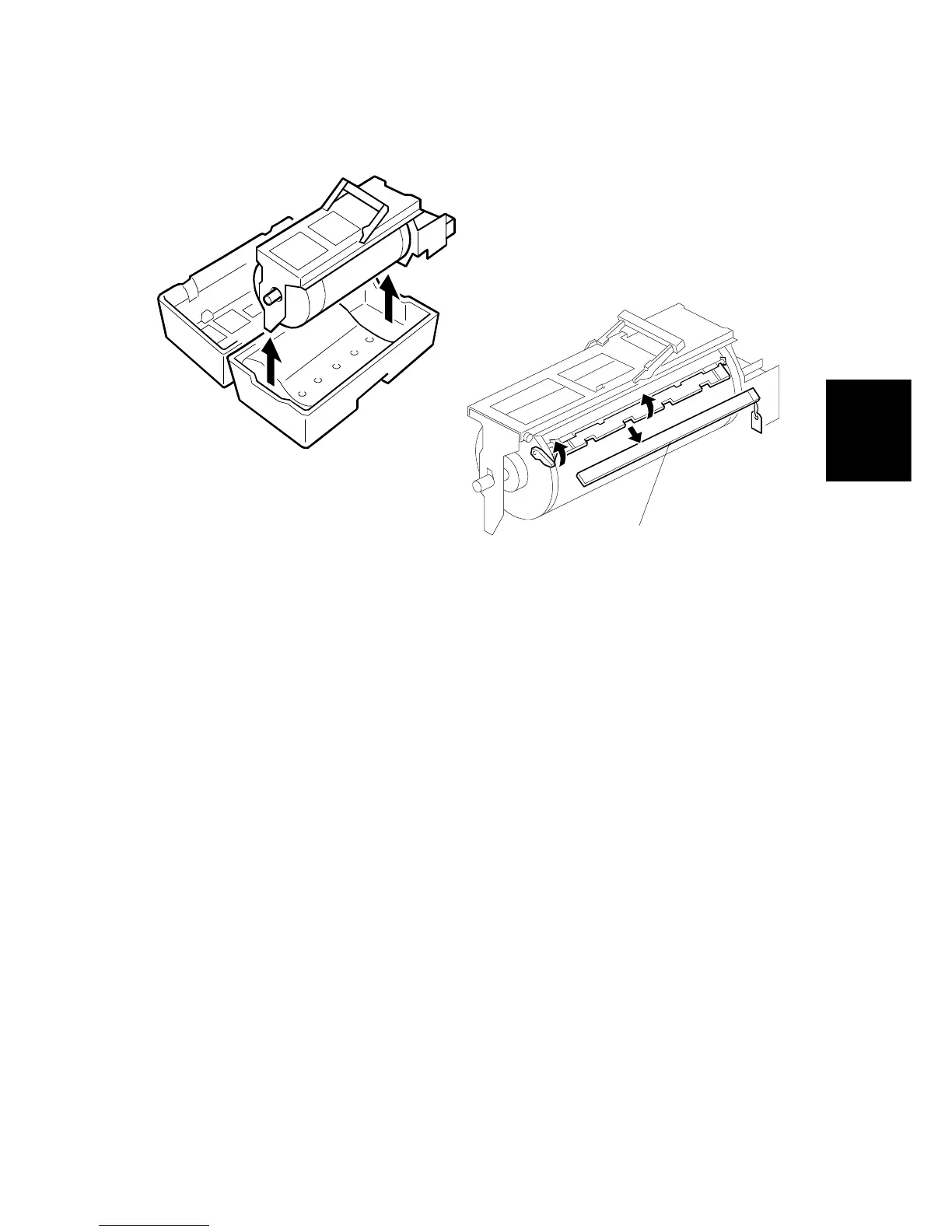

1. Remove the protective sheet [A] from the drum unit.
2. Remove the tape securing the ink holder.
3. Attach a color indicator decal to the drum case. The decal must be the same
color as the ink in use.
4. Remove the drum unit.
a) Leave the master wrapped around the removed drum to protect the drum
from dust and drying.
b) Keep the removed drum unit in the drum case.
5. Install the color drum unit.
The color drum indicator on the operation panel stays lit when a color drum is
mounted in the machine.
6. Install the colored ink.
a) Remove the ink cartridge cap.
b) Insert the ink cartridge into the ink holder.
7. Cycle ink into the drum by pressing the “Economy Mode “ key while holding
down the “0” key. The drum will turn 40 rotations to supply ink to the drum.
Repeat step 7 if nesessary.
C231I537.WMF
C231I534.WMF
[A]
