EXTERIOR COVER REMOVAL
6-1
SM C231/C237/C238
Replacement
and
Adjustment
6. REPLACEMENT AND ADJUSTMENT
6.1 EXTERIOR COVER REMOVAL
6.1.1 ADF

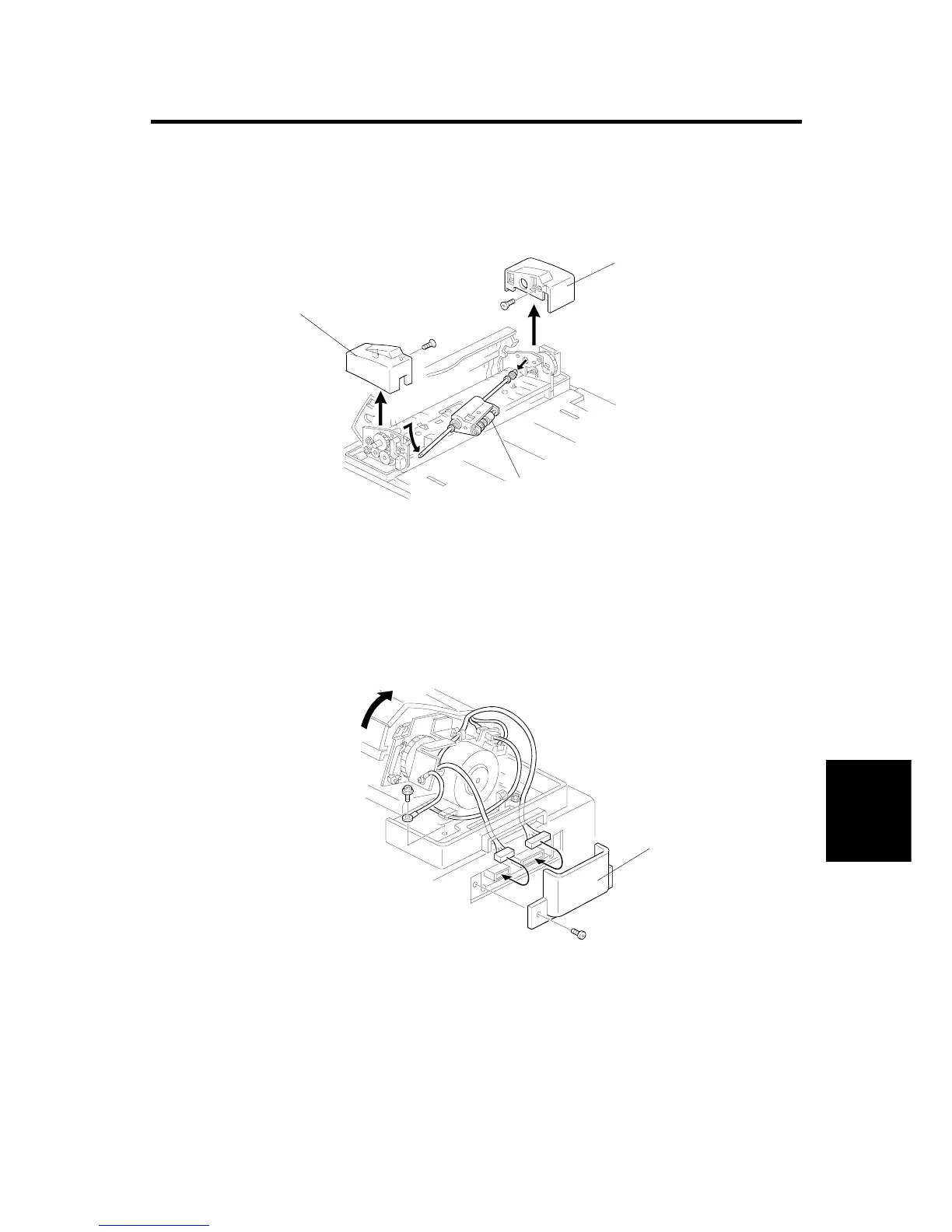

First, remove the ADF roller assembly [A].
A: ADF Roller Assembly
B: ADF Upper Front Cover (1 screw, 1 hook)
C: ADF Upper Rear Cover (1 screw, 2 hooks)
Remove the connector cover, then remove the harness and ground wire.
D: Connector Cover (1 screw)
C231R500.WMF
C231P501.WMF
[A]
[B]
[C]
[D]
