MASTER FEED SECTION
6-17
SM C231/C237/C238
Replacement
and
Adjustment
6.5 MASTER FEED SECTION
6.5.1 MASTER MAKING UNIT REMOVAL
First, turn off the main switch and disconnect the power plug.
Then open the scanner unit.

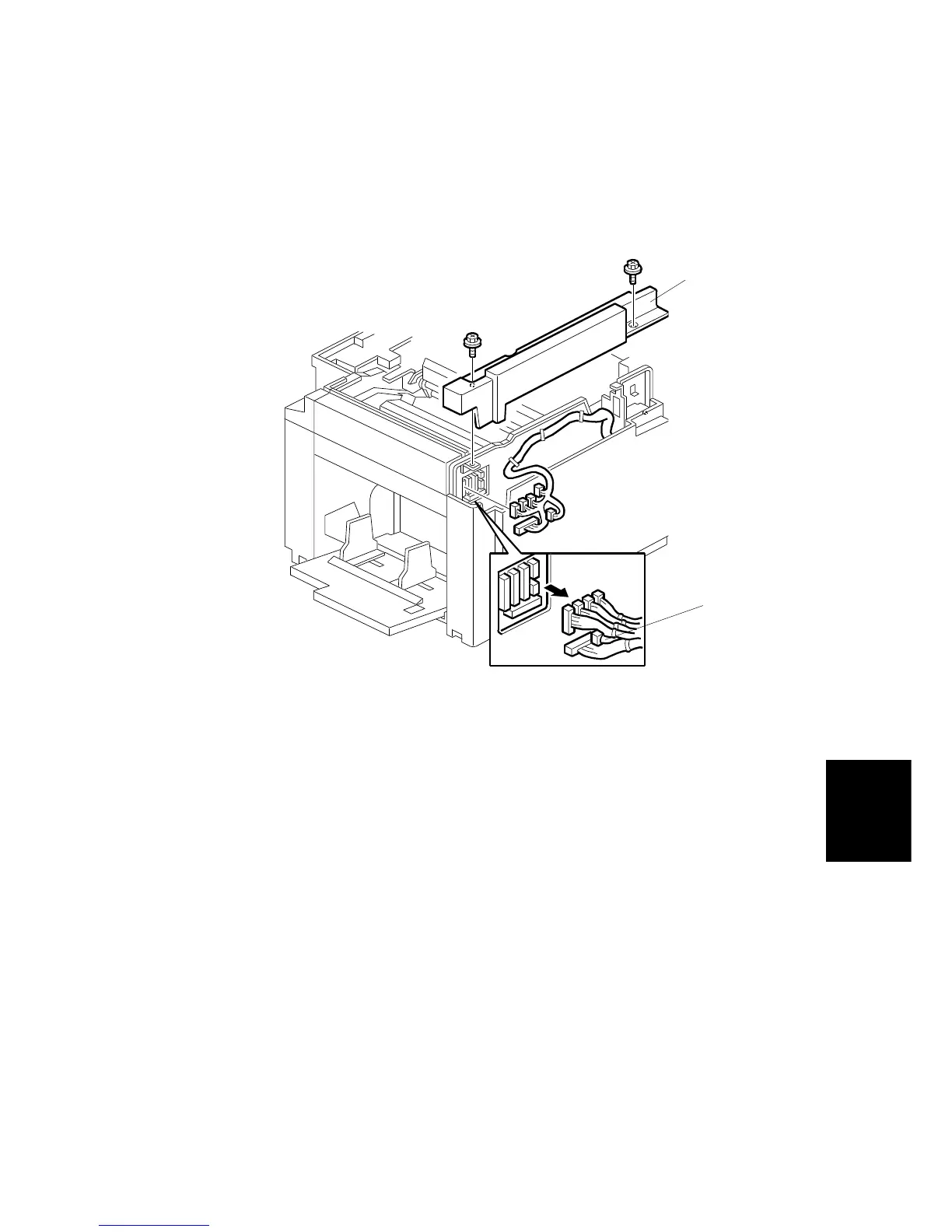

A: Rear upper cover (2 screws)
B: Disconnect 6 connectors
C231R521.WMF
[A]
[B]
