MASTER FEED
SM 6-21 C267
C267 Service
Manual
6.7.6 MASTER MAKING UNIT SLIDE-OUT MECHANISM

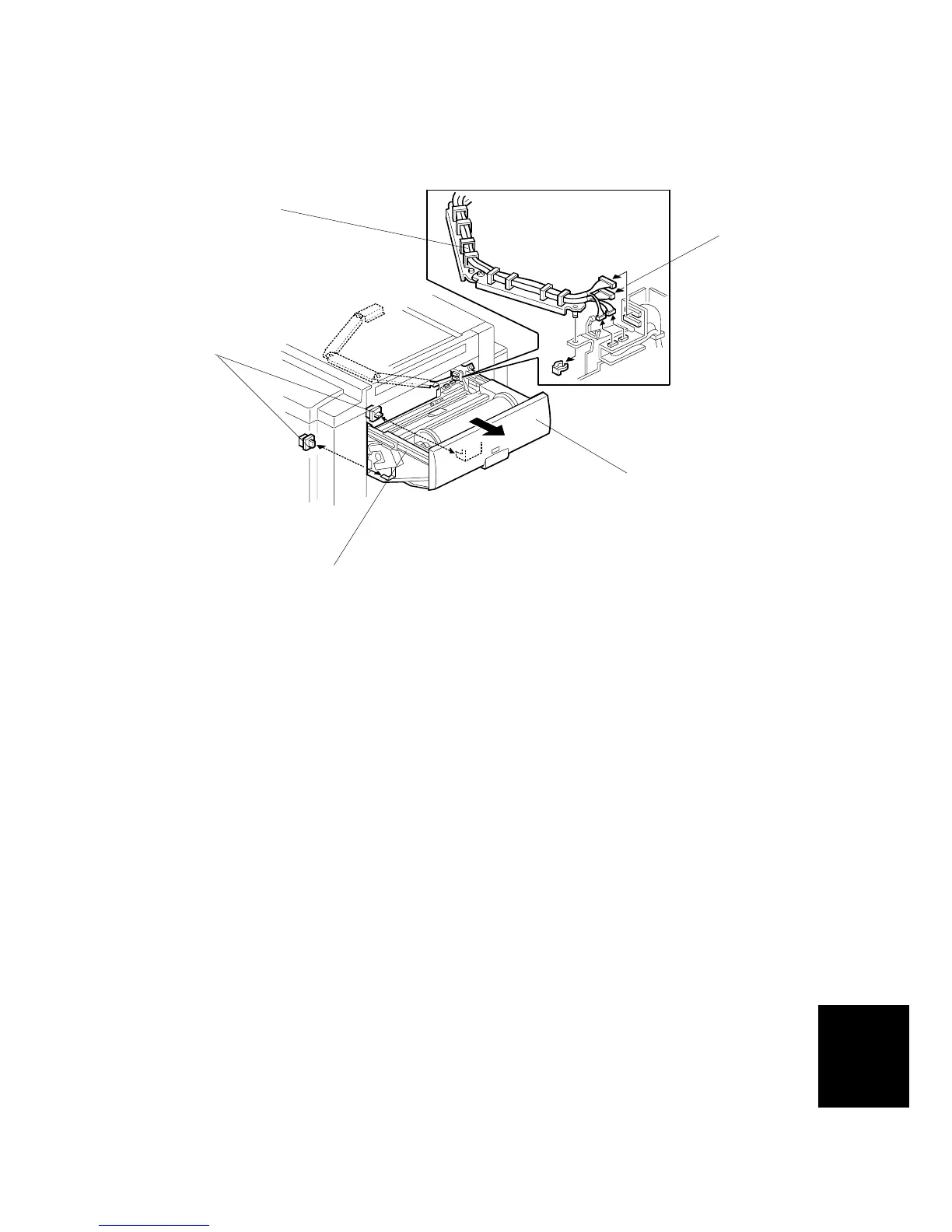

The master making unit [A] can be pulled out along the guide rails [B].
There are four cable connectors [C] behind the master making unit. The bundle of
harnesses [D] is placed in the space between the scanner and the drum, and
connected to the MPU.
There are two master making unit set switches [E] for safety, because this model
does not have a unit locking mechanism. Both sensors must be on, or the machine
will not start. When one of the sensors detects the unit is open, the operation panel
displays a message.
C267D031.WMF
[A]
[C]
[D]
[B]
[E]
