Ricoh C231 - Thermal Head

MASTER FEED
SM 3-17 C267
C267 Service
Manual

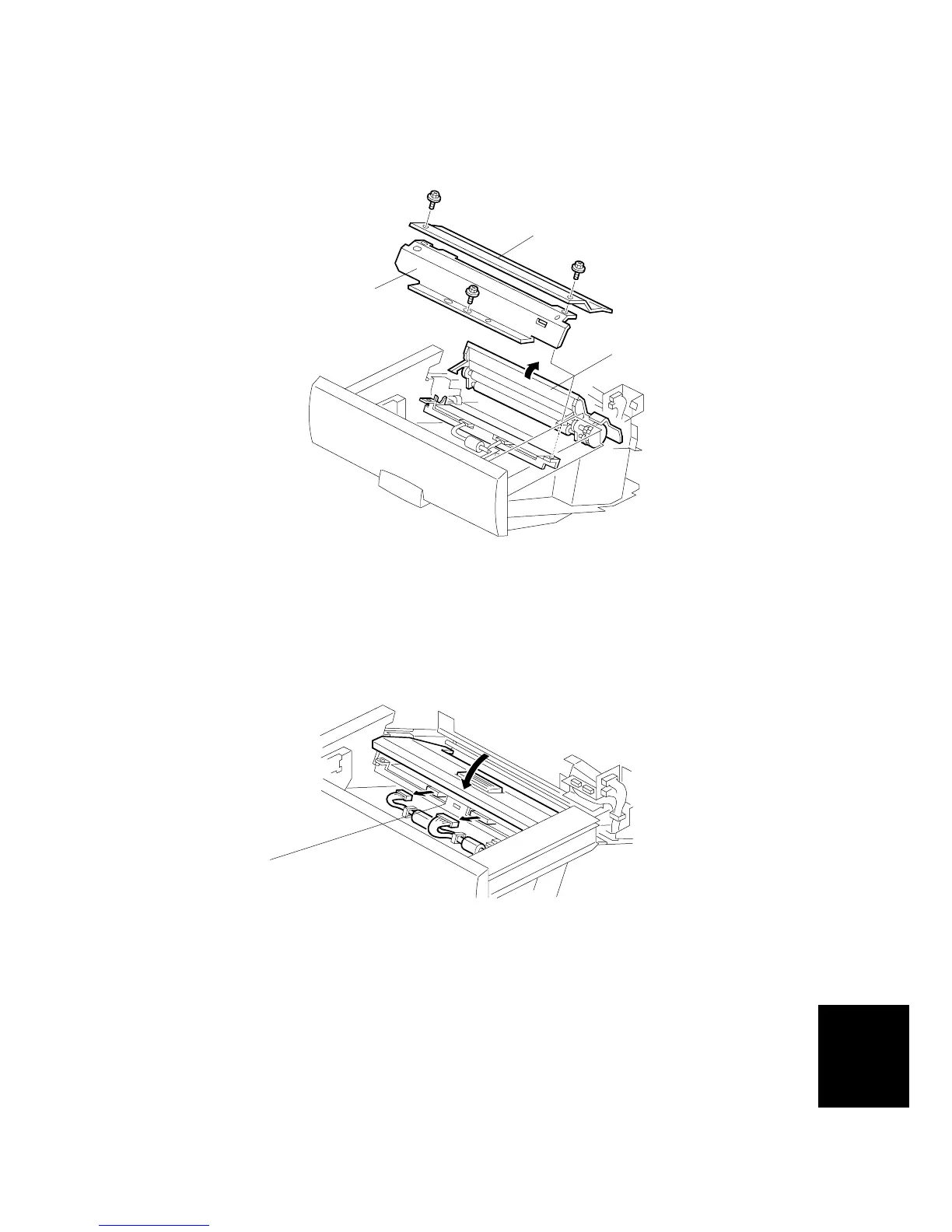

3.5.3 THERMAL HEAD
• Master making unit ( 3.5.1)
[A]: Open the platen roller unit.
[B]: Thermal head upper cover ( x 2)
[C]: Thermal head side cover ( x 1)
• Close the platen roller unit.
[D]: Thermal head ( x 2)
C267R054.WMF
C267R055.WMF
[A]
[B]
[C]
[D]
