ORIGINAL FEED SECTION
6-15
SM C231/C237/C238
Replacement
and
Adjustment

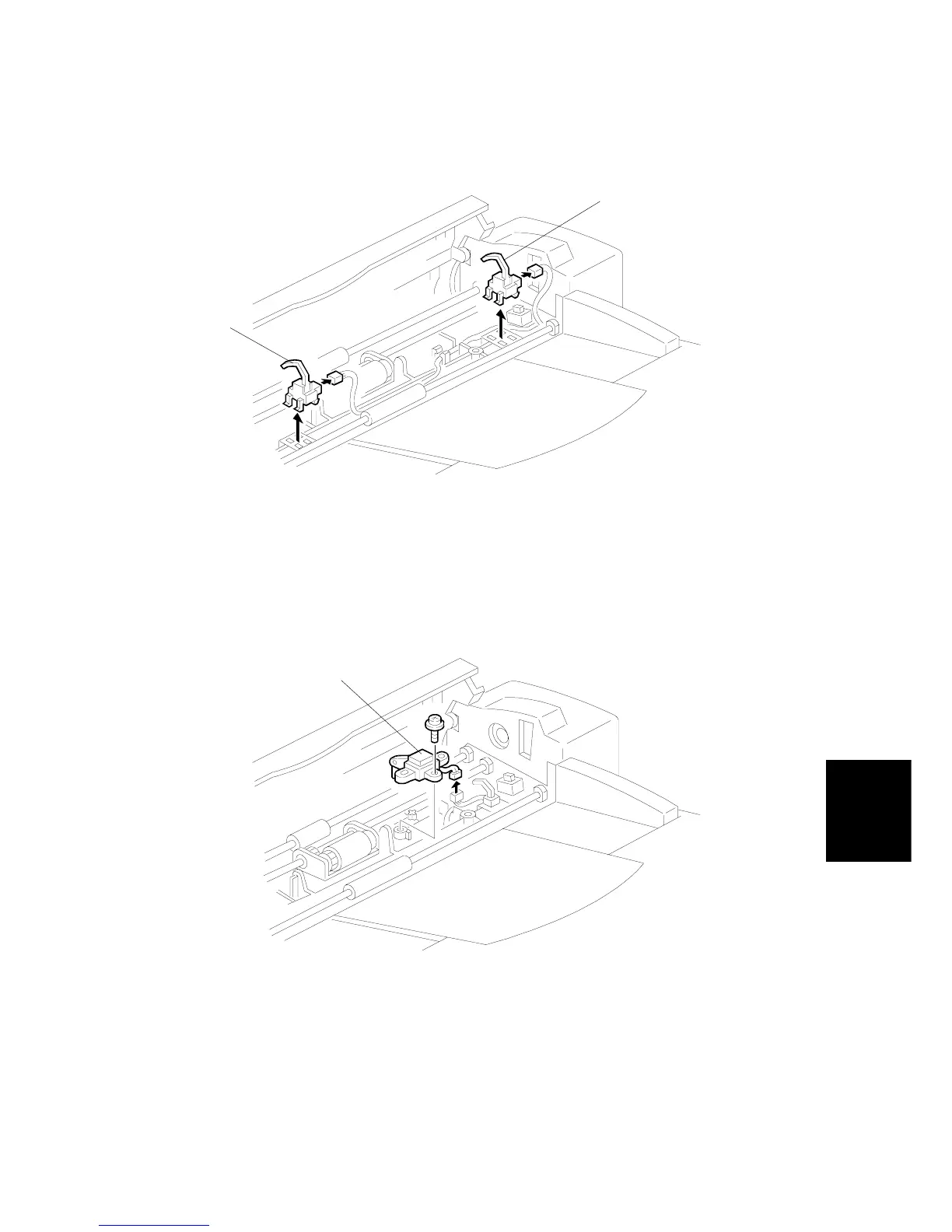

6.4.8 DOCUMENT SENSOR
A: Document Sensor
B: This sensor has no function
6.4.9 SCAN LINE SENSOR
A: Scan Line Sensor (1 screw)
C231P515.WMF
C231P516.WMF
[A]
[B]
[A]
