Ricoh C231 - Main Motor Pulley Position Adjustment

DRUM AND DRIVE SECTION
6-48
C231/C237/C238 SM
6.9.8 MAIN MOTOR PULLEY POSITION ADJUSTMENT

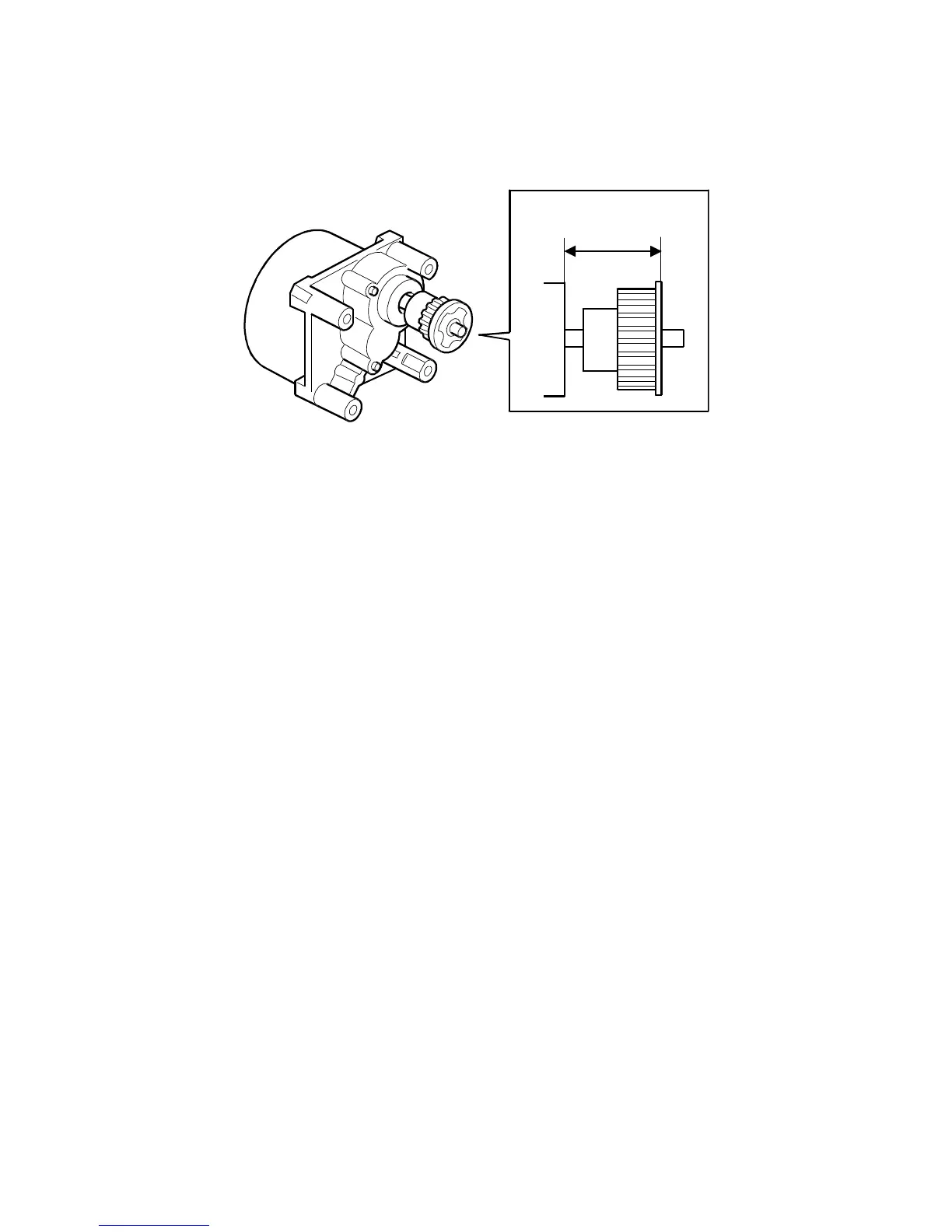

After installing the pulley onto the main motor shaft, refer to the above illustration
for the correct position of the pulley.
C231R546.WMF
38
±
0.1 mm
