DRUM AND DRIVE SECTION
6-47
SM C231/C237/C238
Replacement
and
Adjustment

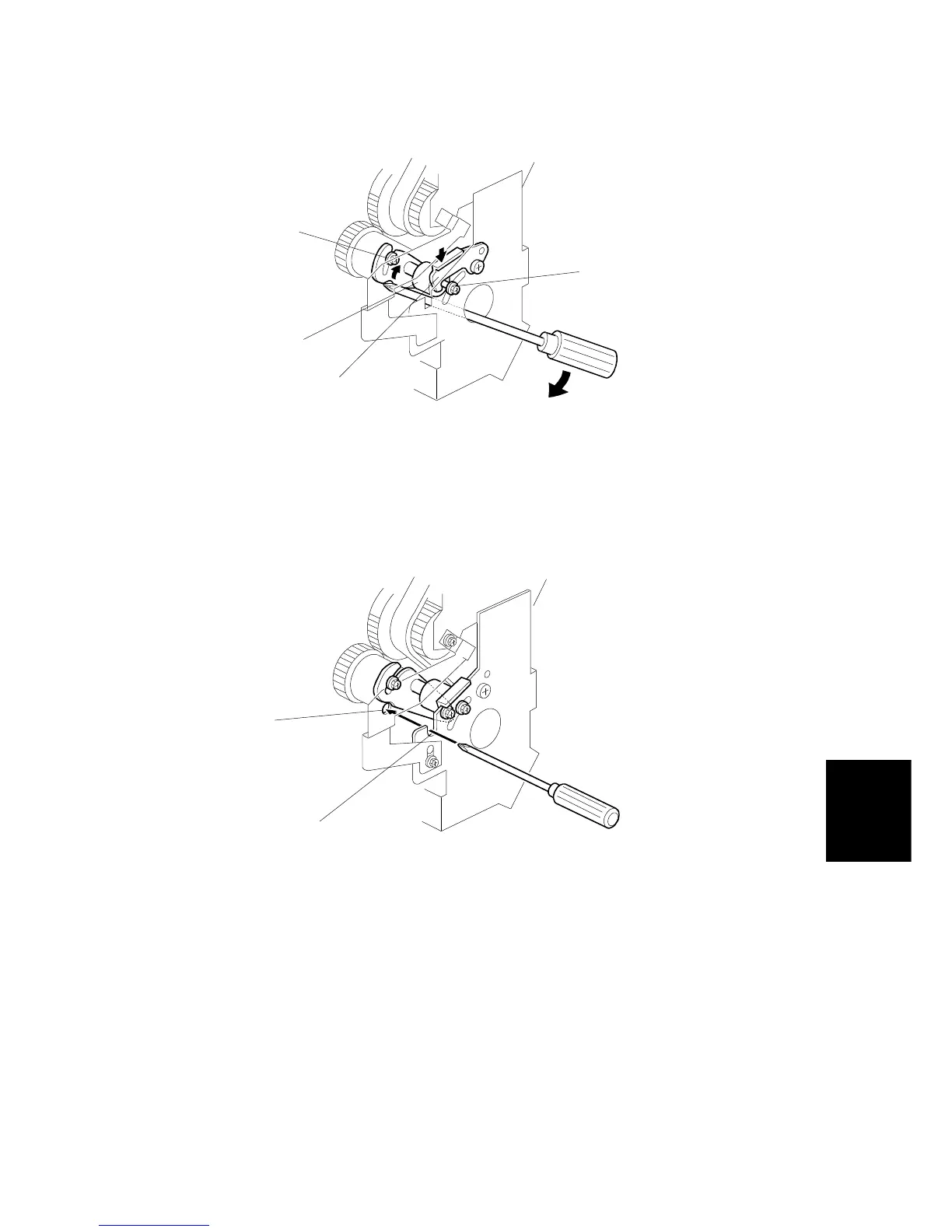

4. Lift up the tension roller [E] with a screwdriver as shown.
5. Hook the stopper [F] onto the shaft [A].
6. Remove the screwdriver.
7. Insert a screwdriver through spaces [D] and [E].
NOTE:
This is to set the shaft [A] in line.
8. Tighten the screws [A], [B], and [C],shown on page 6-46 in the sequence listed.
9. Remove the screwdriver.
C231R540.WMF
C231R541.WMF
[A]
[B]
[E]
[F]
[D]
[E]
