PAPER FEED
SM 3-29 C267
C267 Service
Manual

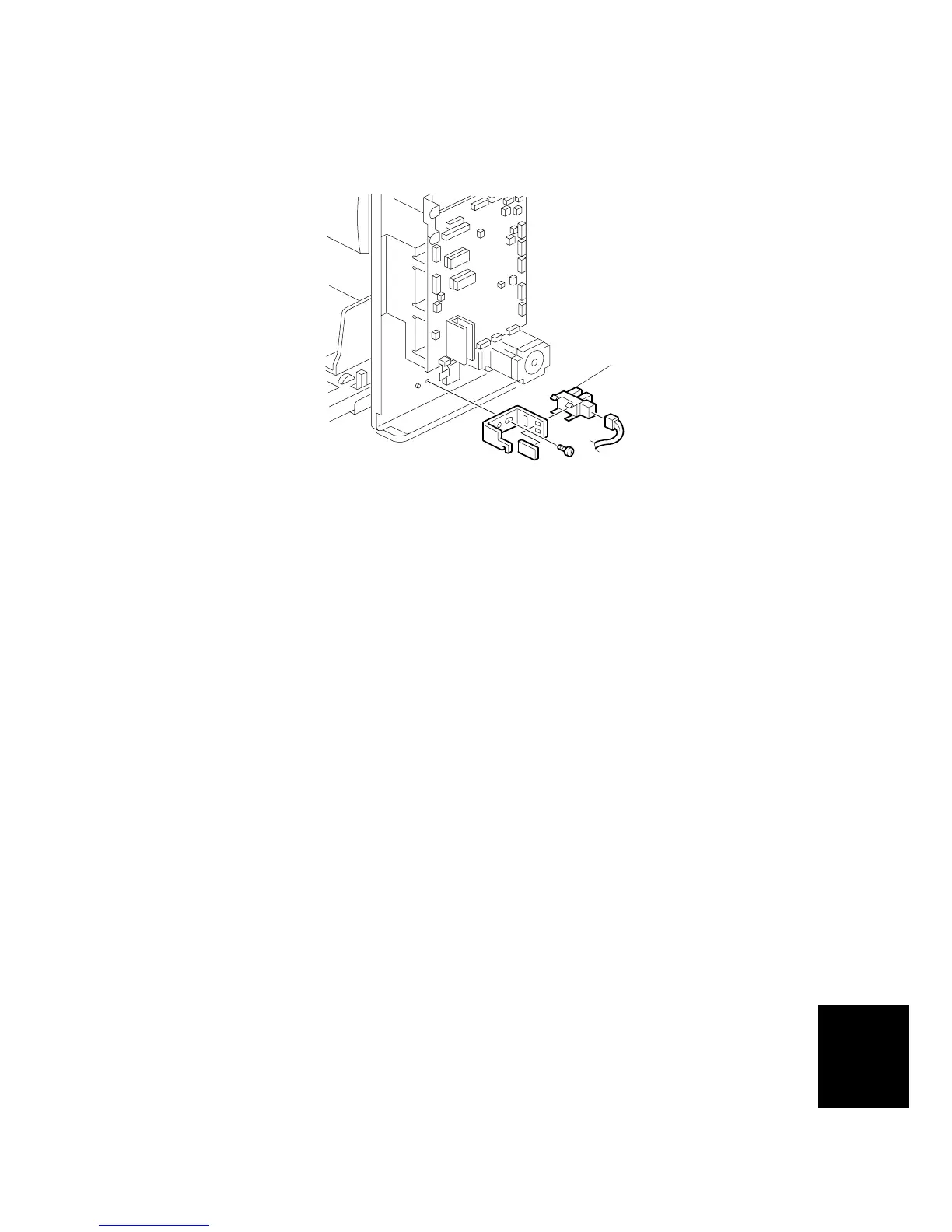

3.7.2 PAPER TABLE LOWER LIMIT SENSOR
• Rear cover ( 3.2.3)
[A]: Paper table lower limit sensor ( x 1, x 1)
C267R034.WMF
[A]
