PAPER DELIVERY
2-44
C231/C237/C238 SM
2.7.2 PAPER DELIVERY UNIT DRIVE MECHANISM

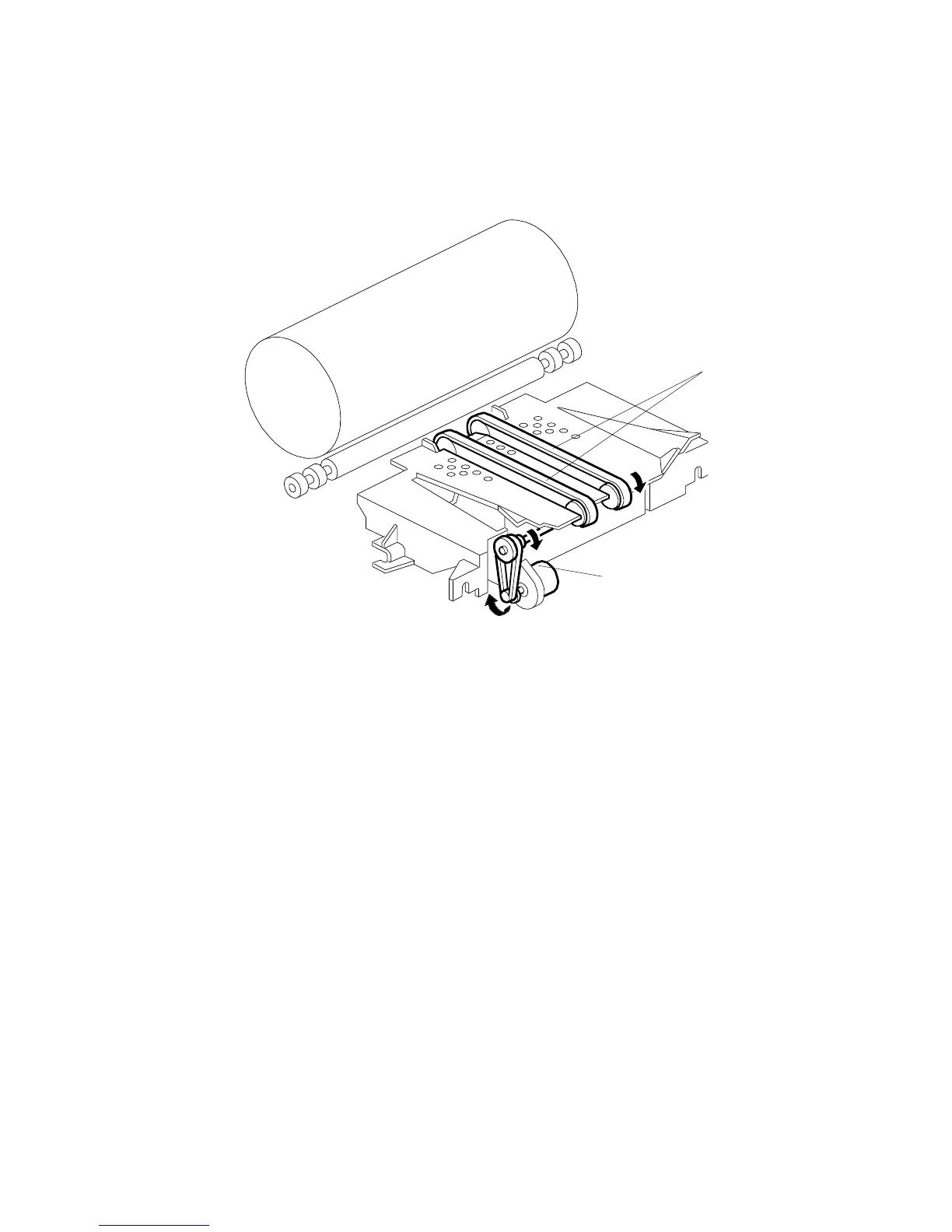

The vacuum fan inside the unit holds the paper against the transport belts [A] to
deliver the paper onto the delivery table. The transport belts are driven by an
independent dc motor (the paper delivery motor [B]).
C231D550.WMF
[A]
[B]
