Ricoh C231 - Main Drive Timing Belt Tension Adjustment

DRUM AND DRIVE SECTION
6-46
C231/C237/C238 SM
6.9.7 MAIN DRIVE TIMING BELT TENSION ADJUSTMENT
PURPOSE:
After the timing belt is replaced, correct belt tension must be applied
using the procedure below.
1. Turn off the main switch and disconnect the power plug.
2. Remove the rear cover (5 screws). (See 6.1.5 Other Covers.)

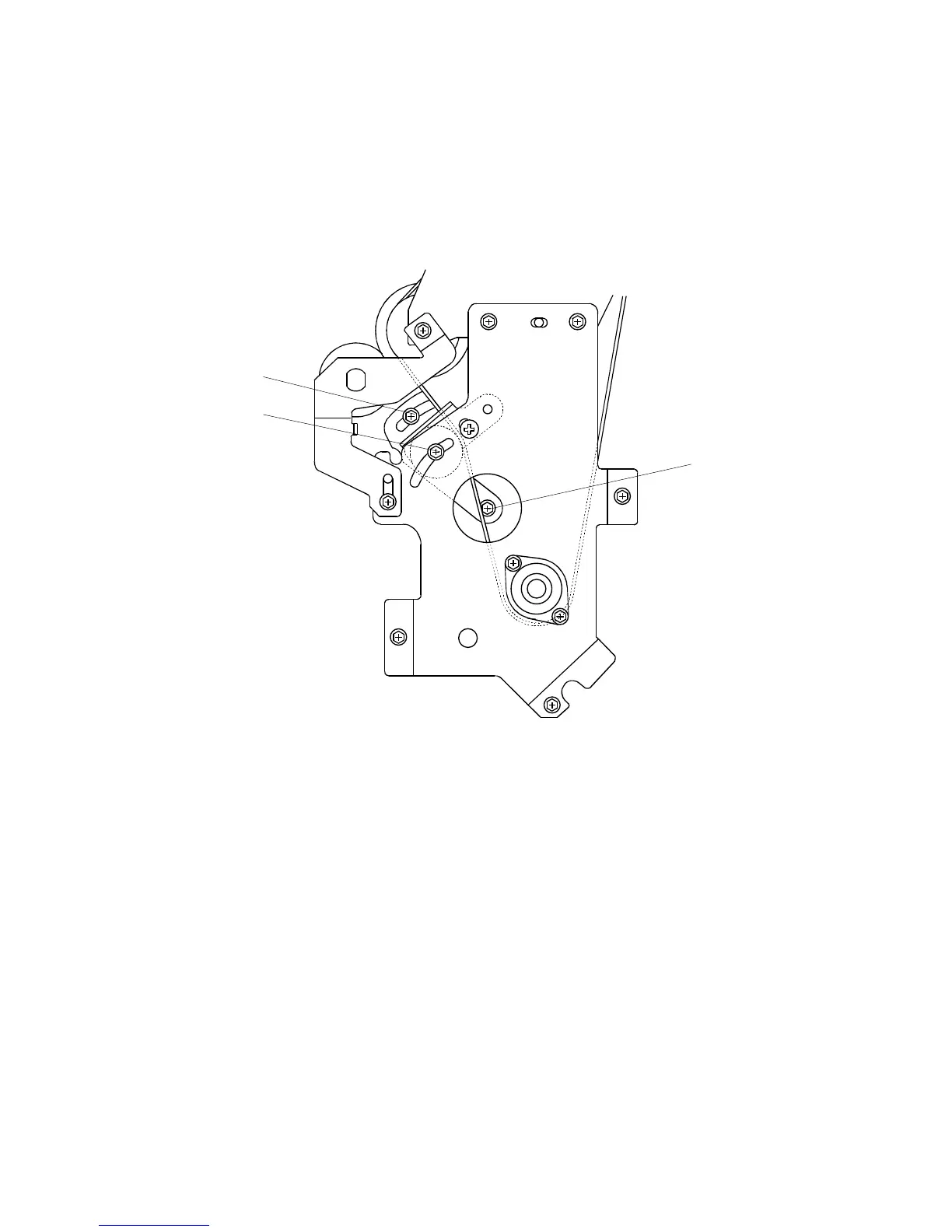

3. Loosen the screws [A], [B], and [C].
C231R539.WMF
[A]
[B]
[C]
