Ricoh C231 - Cloth Screen; Drum; Preparation

DRUM
SM 3-43 C267
C267 Service
Manual
3.9 DRUM
3.9.1 PREPARATION
Before attempting any of the procedures in this section, wipe off the ink around the
ink roller. To do this, set SP2-10 (ink detection) to off, and feed paper until ink ends.

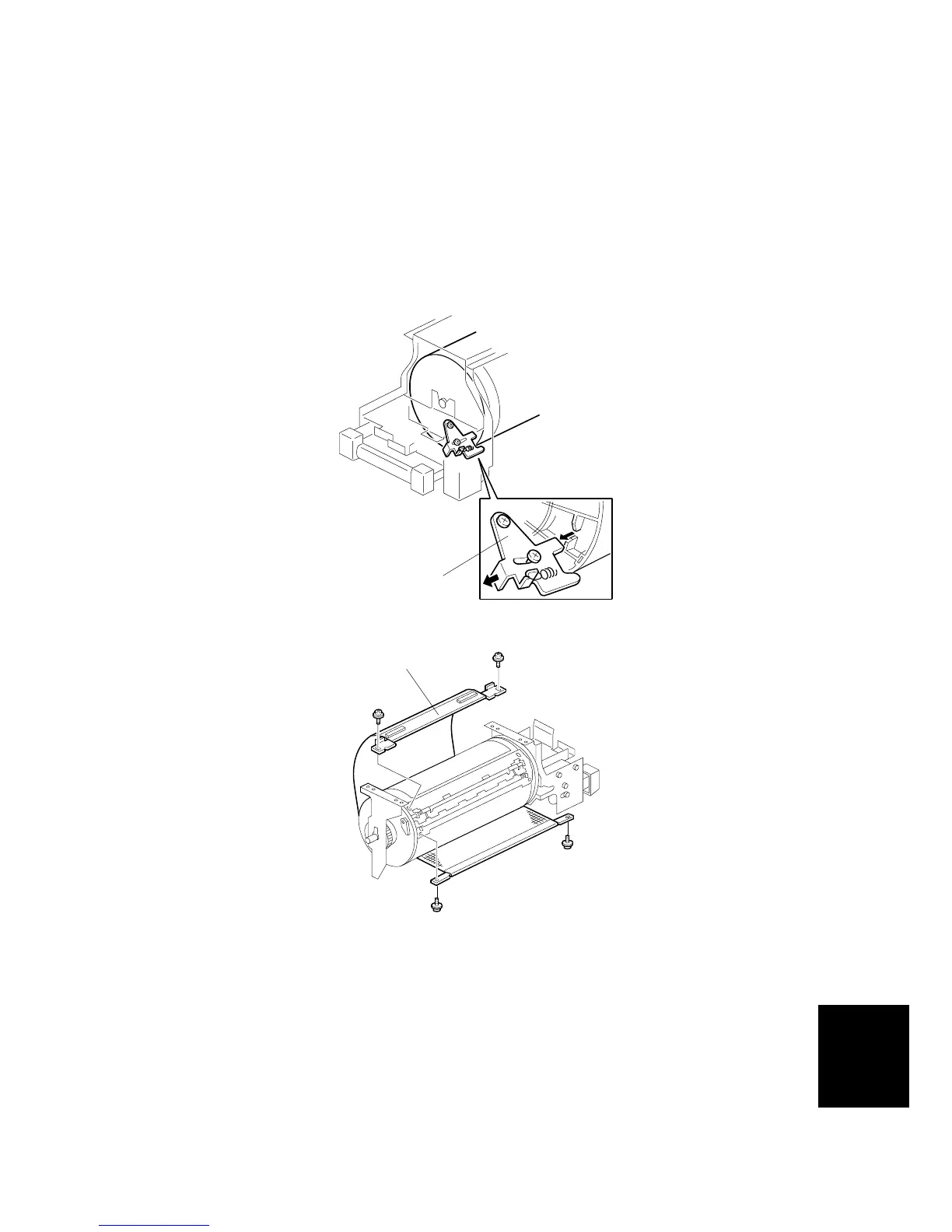

3.9.2 CLOTH SCREEN
• Remove the drum
1. Remove the drum upper bracket ( x 4).
2. Release the stopper [A], then rotate the drum until the master clamper faces
top.
3. Remove the cloth screen [B] ( x 4).
C267R909.WMF
C267R073.WMF
[A]
[B]
