EXTERIOR COVER REMOVAL
6-3
SM C231/C237/C238
Replacement
and
Adjustment

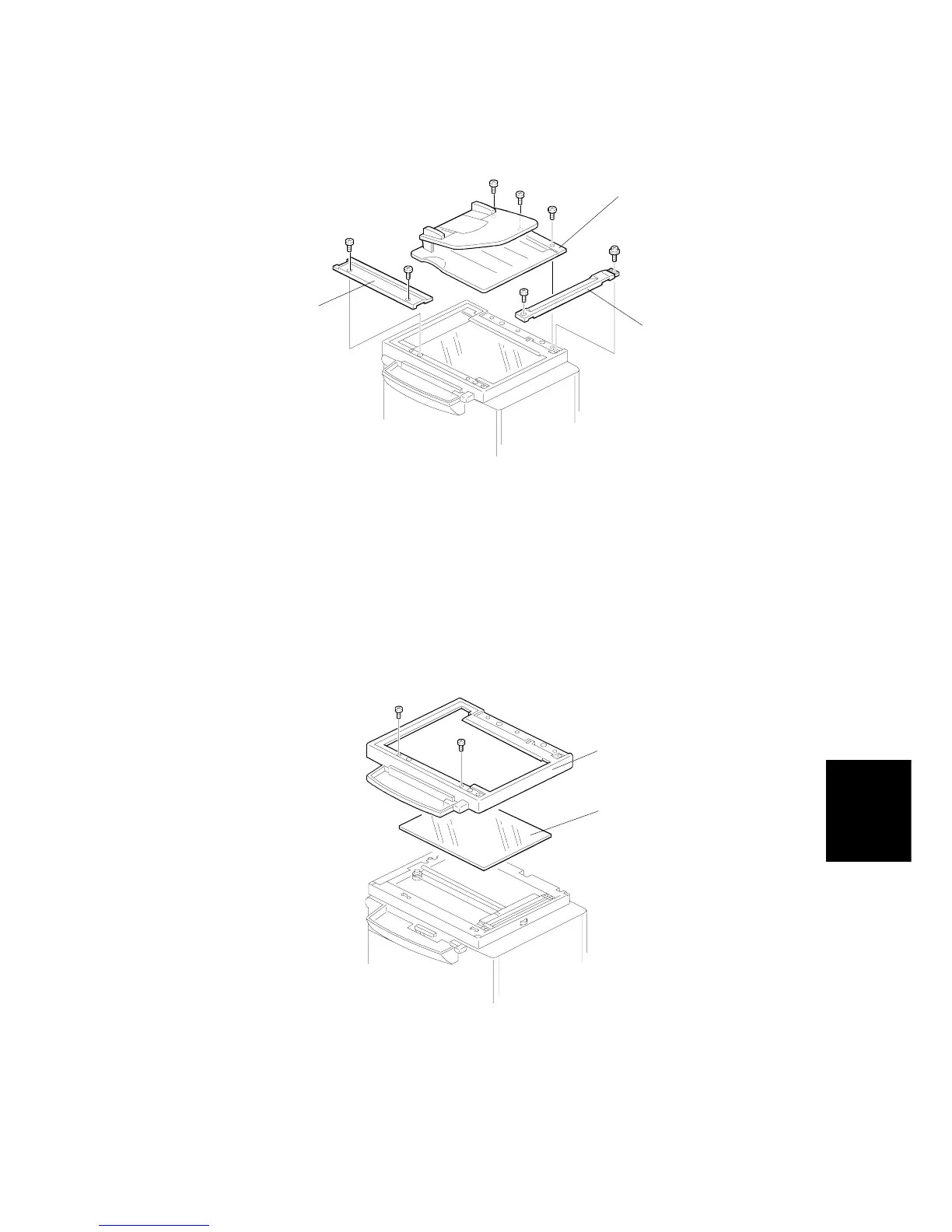

6.1.3 PLATEN COVER AND UPPER COVERS
A: Platen Cover (3 tapping screws)
B: Horizontal Upper Cover (2 silver screws)
C: Vertical Upper Cover (1 silver screw, 1 screw)
6.1.4 TOP COVER AND EXPOSURE GLASS
A: Top Cover (2 screws)
B: Exposure Glass
C231P504.WMF
C231P505.WMF
[A]
[B]
[C]
[A]
[B]
