JAM DETECTION
SM 6-45 C231/C237/C238
6.10.2 DF JAM (P JAM LOCATION INDICATOR)
Feeding in the original

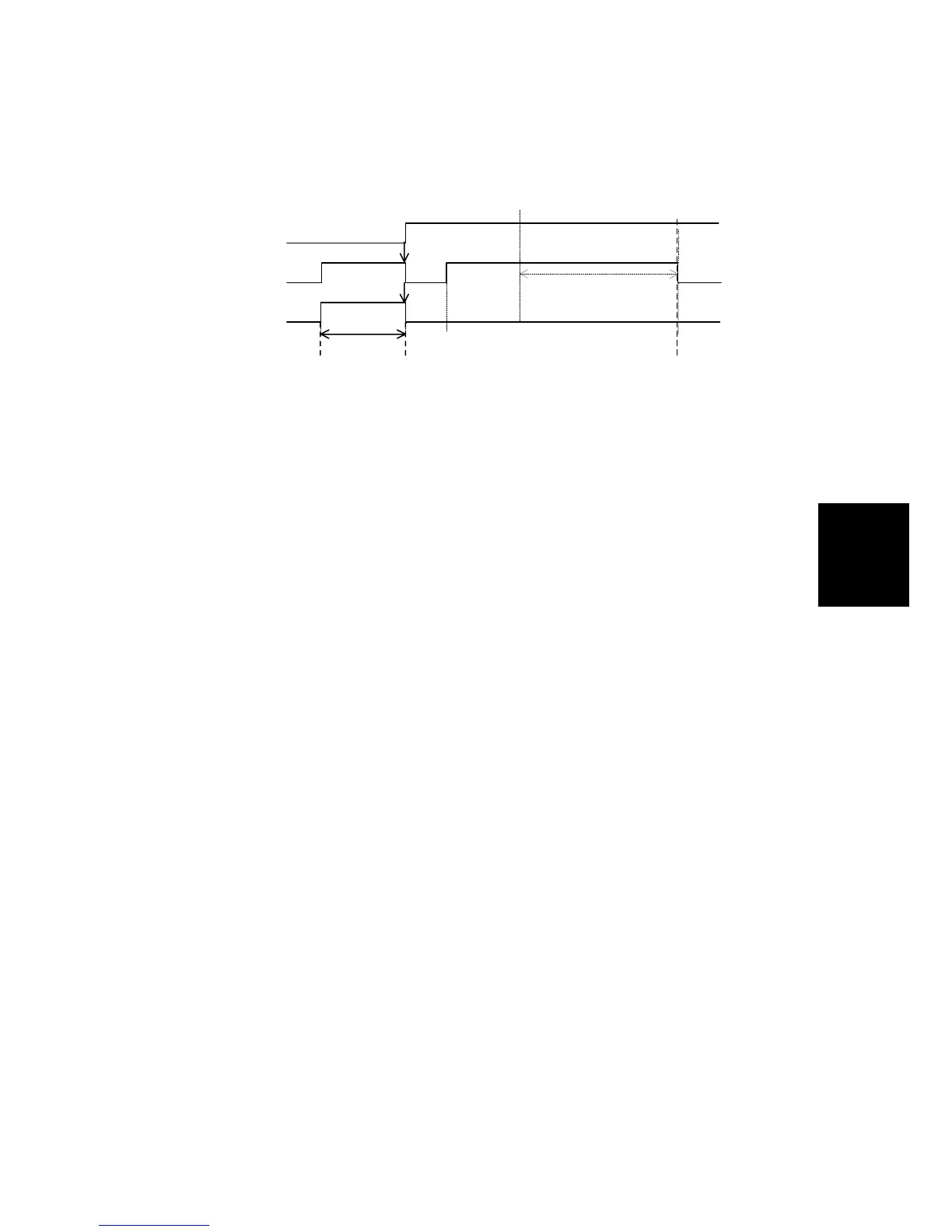

Jam check timing:
When an original is placed in the DF.
Check 1:
If the DF motor has operated for 5.0 seconds since the start key was
pressed, and the DF registration sensor still doesn’t detect the original,
the P jam indicator lights.
Feeding out the original
Jam check timing:
During original feed-out.
Check 2:
When the DF has fed the original length plus 80 mm, the DF registration
sensor still detects the original, the P jam indicator lights.
Turning on the main switch/closing the DF cover
Jam check timing:
Just after turning the main switch on, and when the DF cover
is closed.
Check:
If the DF registration sensor detects an original, the P jam indicator lights.
DF re
