Ricoh C231 - Sp8-9 Data Printout - Power Failure

SP8-9 DATA PRINTOUT – POWER FAILURE
SM 5-21 C267
C267 Service
Manual

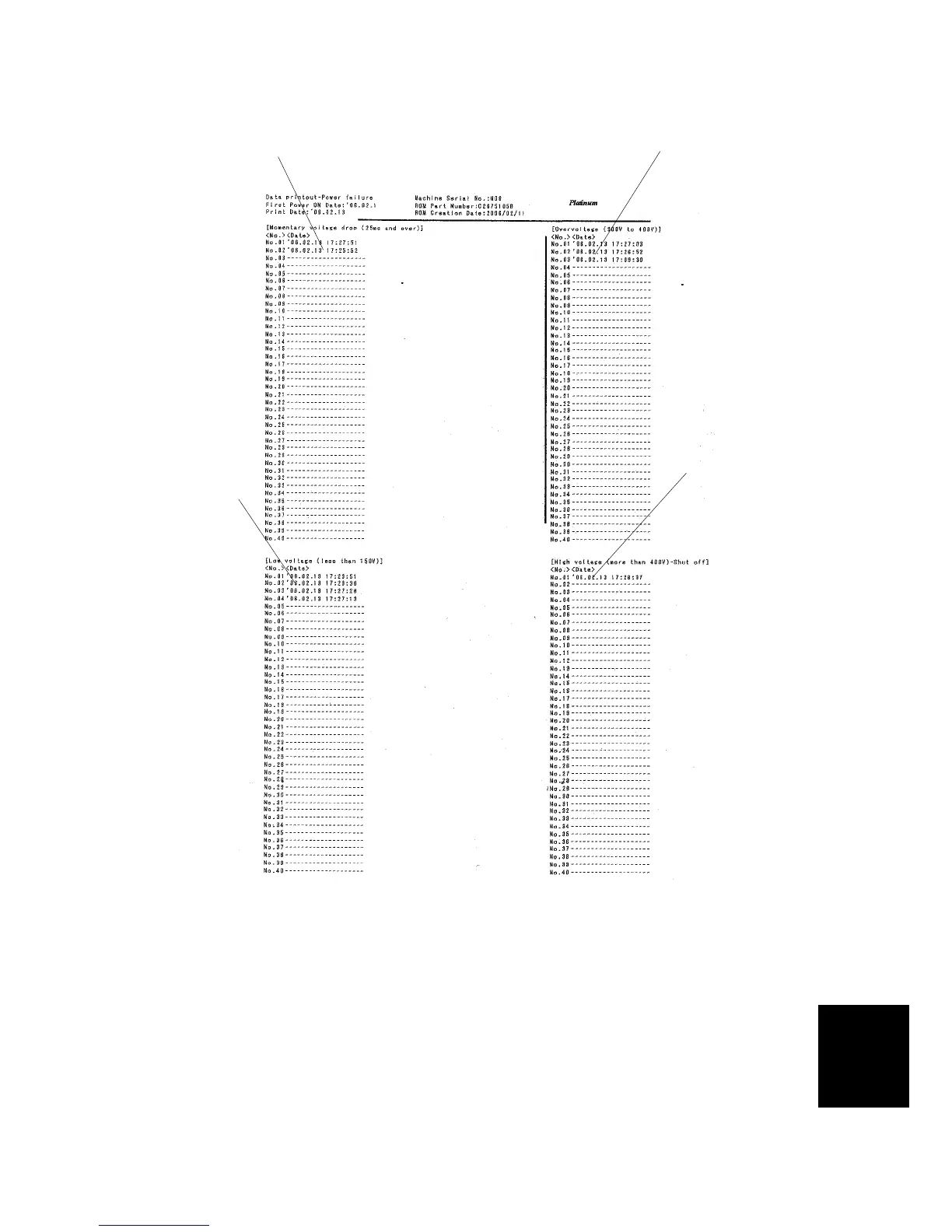

5.9.4 SP8-9 DATA PRINTOUT – POWER FAILURE
[A]: Momentary Voltage Drop
[B]: Over voltage
[C]: Low voltage
[D]: High voltage
The machine collects information about unusual voltages from the power outlet and
you can check this data with SP 8-9 Data printout – Power failure
See section 6.11 for more information about the four types of data ([A] to [D]).
C267S901.WMF
[A]
[B]
[C]
[D]
