OVERALL ELECTRICAL CIRCUIT
C600 8-10 SM
2.4 OVERALL ELECTRICAL CIRCUIT

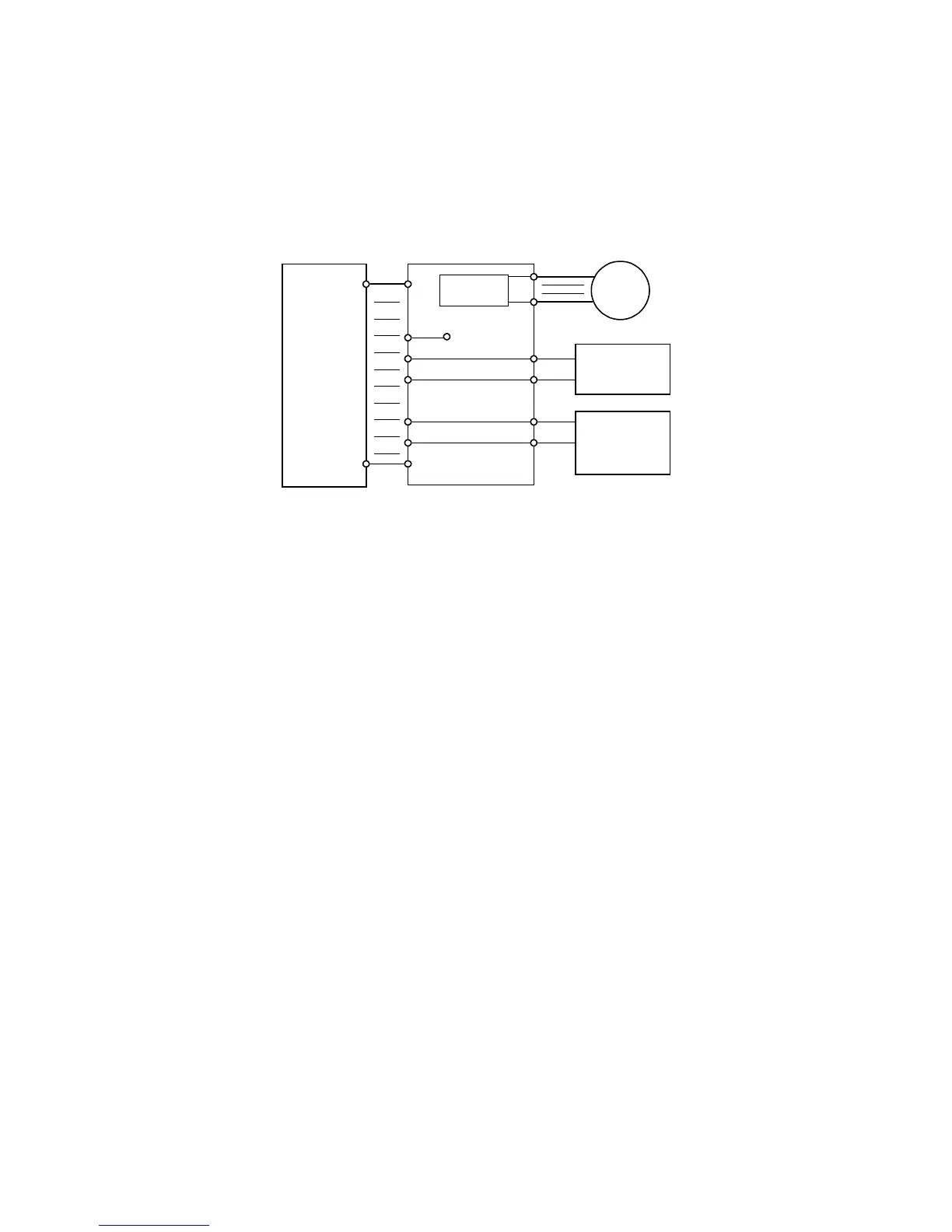

The copier directly controls the DF pick-up solenoid, stamp solenoid, and DF feed
clutch through the DF drive board. The sensor signals are directly sent to the
copier through the DF drive board. The DF drive board has a driver for the DF
transport motor and the drive signals are sent from the copier.
When the DF connector is connected to the copier IOB board, the DF connection
signal to the copier goes to 5 V. Then the copier detects that the DF is connected.
