SCANNER AND OPTICS
2-7
SM C231/C237/C238
Detailed
Section
Descriptions
2.1.5 PICK-UP AND FEED (ADF)

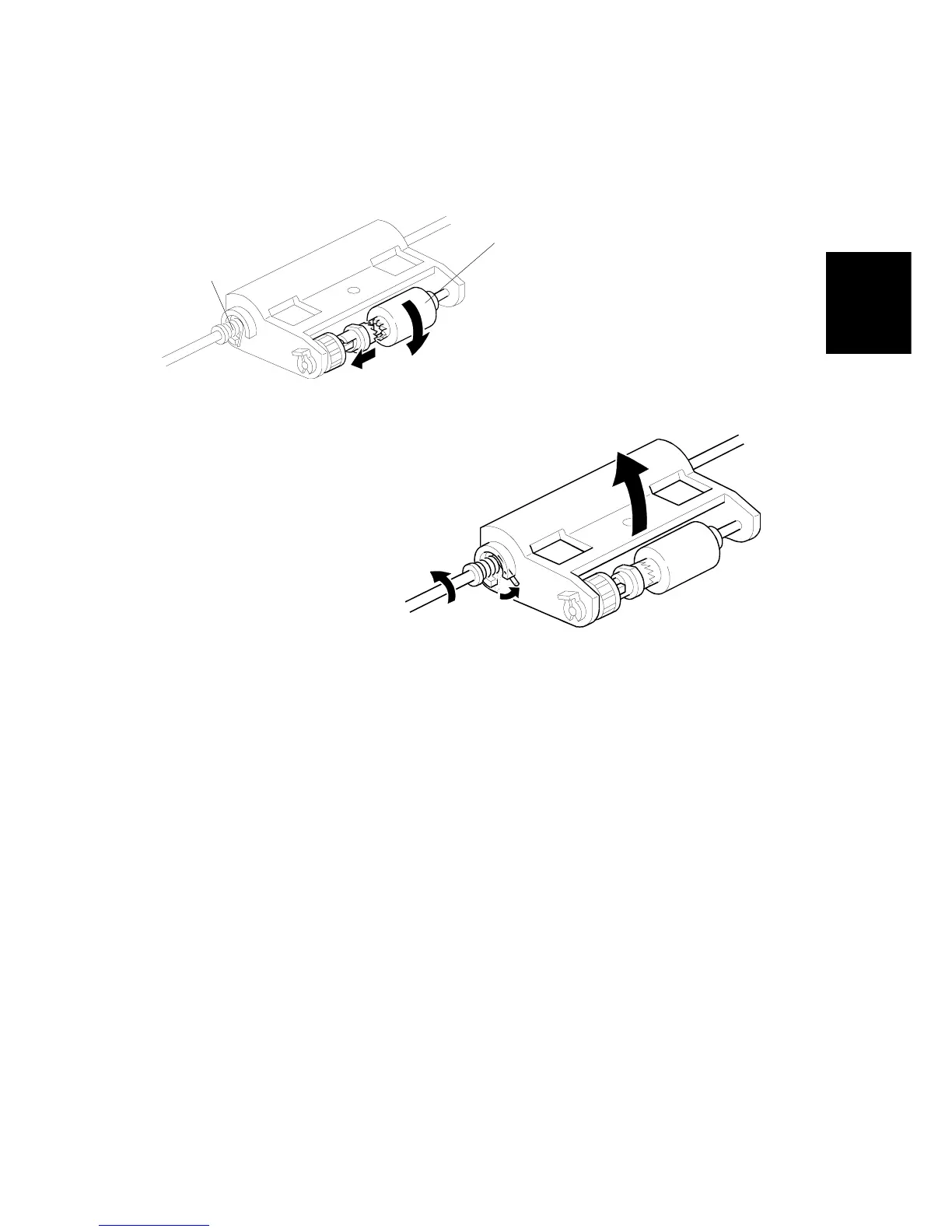

When the ADF motor starts, the mechanical clutch [A] engages and lowers the
pick-up roller [B] into contact with the document. Then the machine begins feeding
the original stack, beginning with the top page. After the last page is scanned, the
ADF motor reverses briefly to raise the pick-up roller back to the standby position.
C231D507.WMF
C231D506.WMF
[A]
[B]
