FEED CLUTCH/PICK-UP SOL/TRANSPORT MOTOR REPLACEMENT
C600 8-16 SM
3.9 FEED CLUTCH/PICK-UP SOL/TRANSPORT MOTOR
REPLACEMENT
1. Remove the rear cover (2 screws).
- Feed Clutch -
2. Replace the feed clutch [A] (1 E-ring and 1 connector).
- Pick-up Solenoid -
3. Replace the pick-up solenoid [B] (3 screws and 1 connector).
- Transport Motor -
4. Remove the transport motor bracket [C] (2 screws).
5. Remove the transport motor [D] (2 screws, 1 connector).

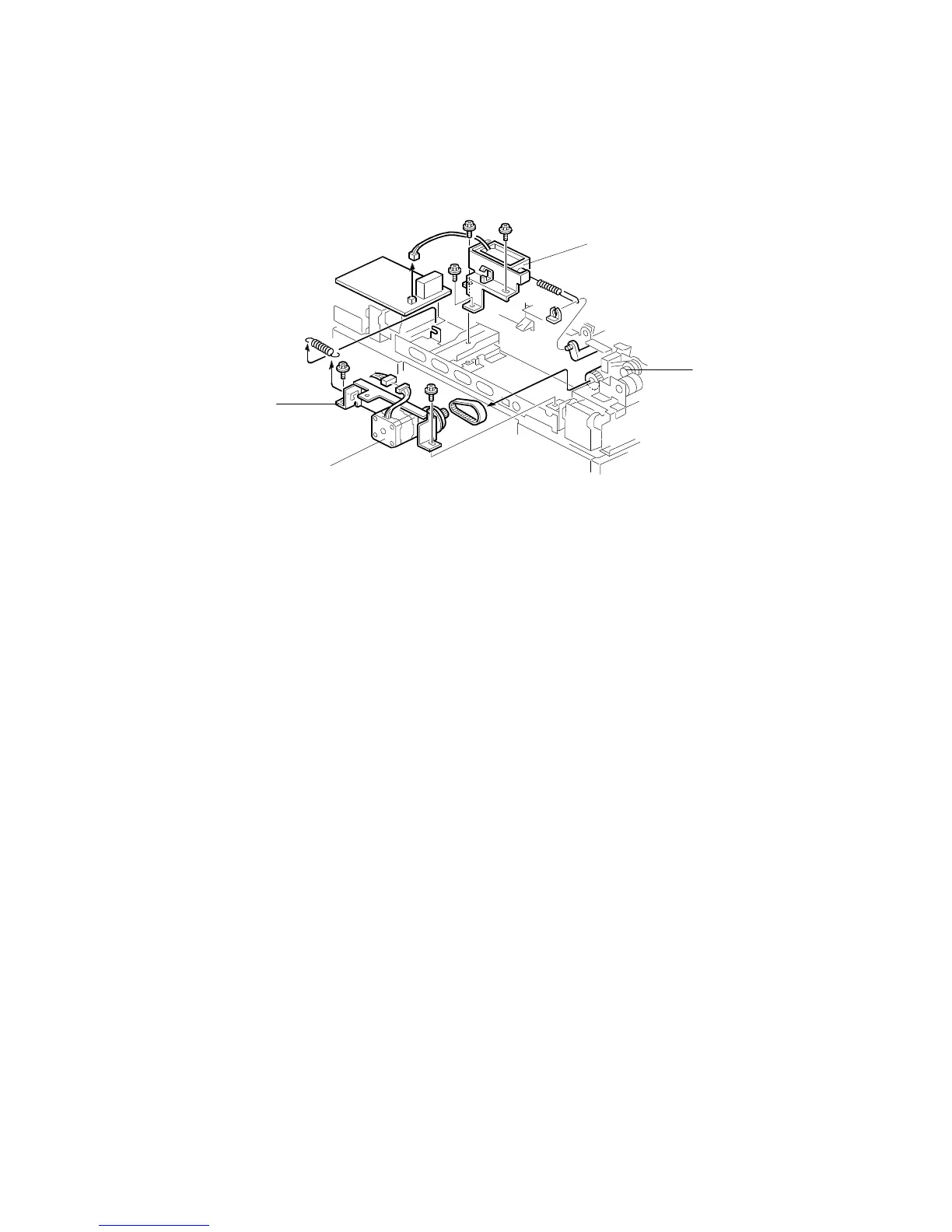

C600R109.WMF
[C]
[A]
[B]
[D]
