Ricoh C231 - Adf Motor and Covers; R0 and R1 Rollers

ORIGINAL FEED SECTION
6-13
SM C231/C237/C238
Replacement
and
Adjustment

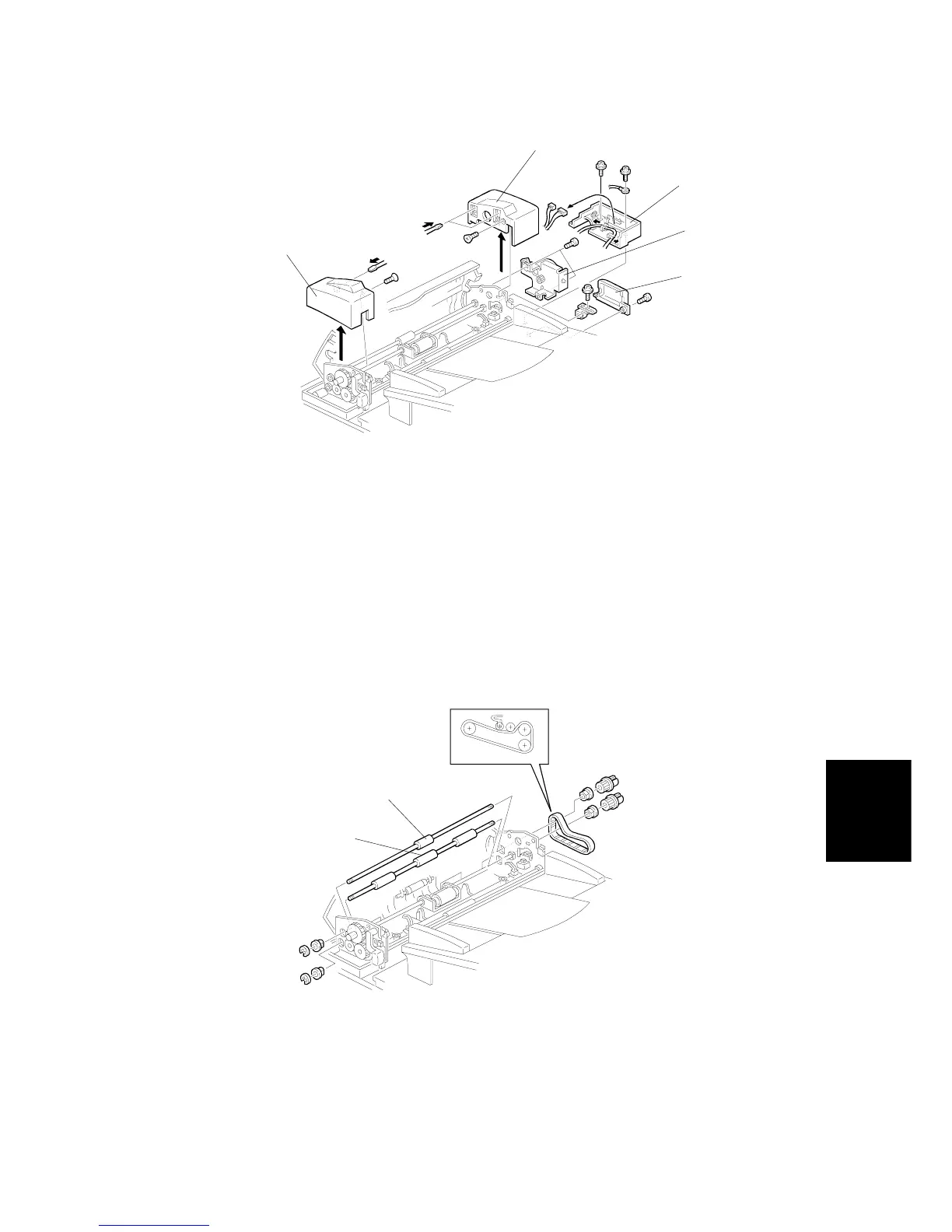

6.4.5 ADF MOTOR AND COVERS
A: ADF Upper Front Cover (1 screw, 1 hook)
B: ADF Upper Rear Cover (1 screw, 2 hooks)
C: ADF Lower Rear Cover (2 screws)
D: Connector Cover (1 screw)
E: ADF Motor (2 screws)
6.4.6 R0 AND R1 ROLLERS
A: R0 Roller (1 E-ring, 1 gear, 2 bushings)
B: R1 Roller (1 E-ring, 1 gear, 2 bushings)
C231P511.WMF
C231P512.WMF
[A]
[B]
[C]
[D]
[E]
[A]
[B]
