PAPER FEED
C267 3-28 SM
3.7 PAPER FEED
3.7.1 PICK-UP ROLLER / PAPER FEED ROLLER / FRICTION PAD
z Move the separation pressure slider [E] to position 1.

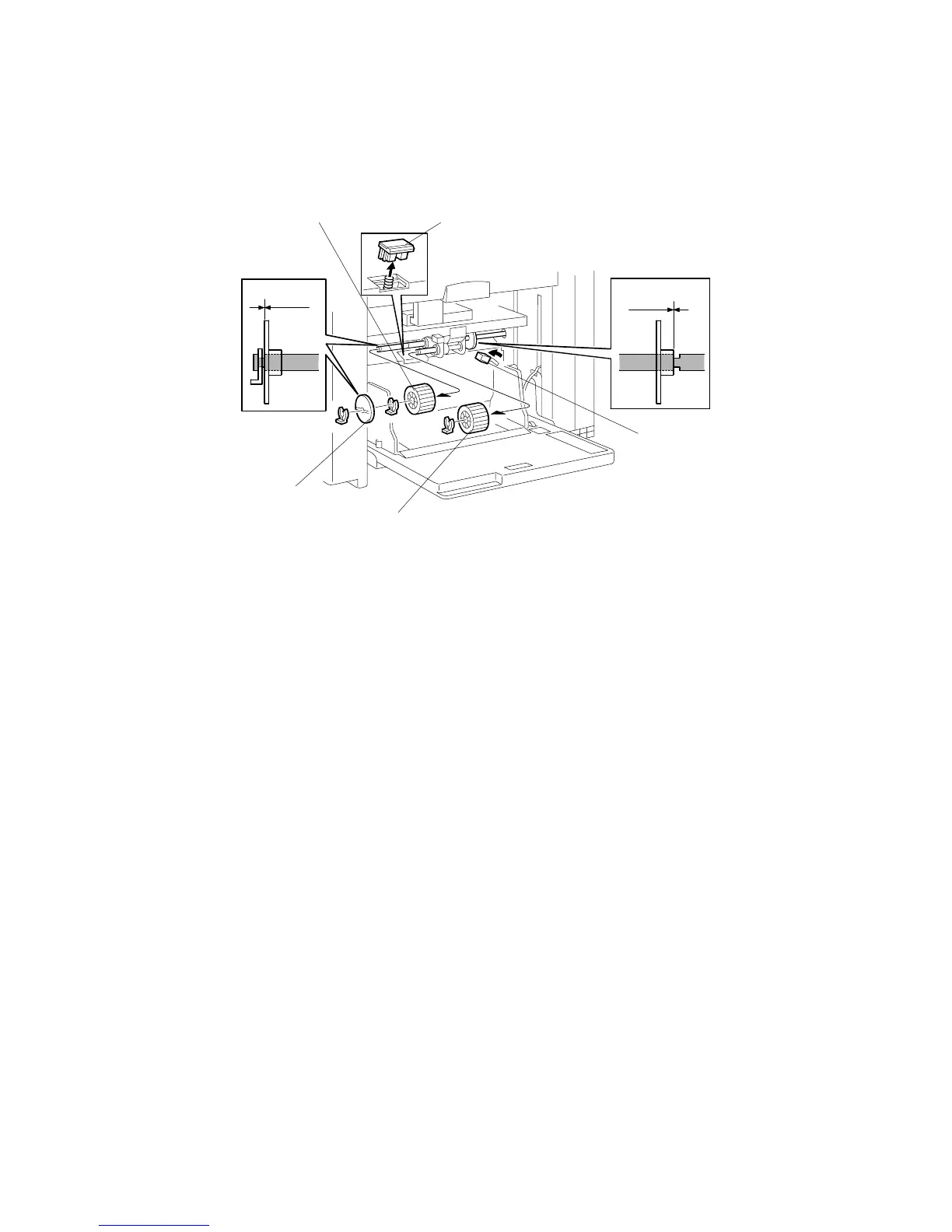

[A]: Pick-up roller ( x 1)
[B]: Paper guide ( x 1)
[C]: Paper feed roller ( x 1)
[D]: Friction pad
NOTE: Do not change the position and direction of the paper guide [B].
C267R019.WMF
[A]
[B]
[C] [D]
[E]
0 to 4 mm 0 to 4 mm
