Ricoh C231 - Registration Motor

PRINTING
SM 3-37 C267
C267 Service
Manual
3.8.5 REGISTRATION MOTOR
z Rear cover ( 3.2.3)
z MPU ( 3.3.1)

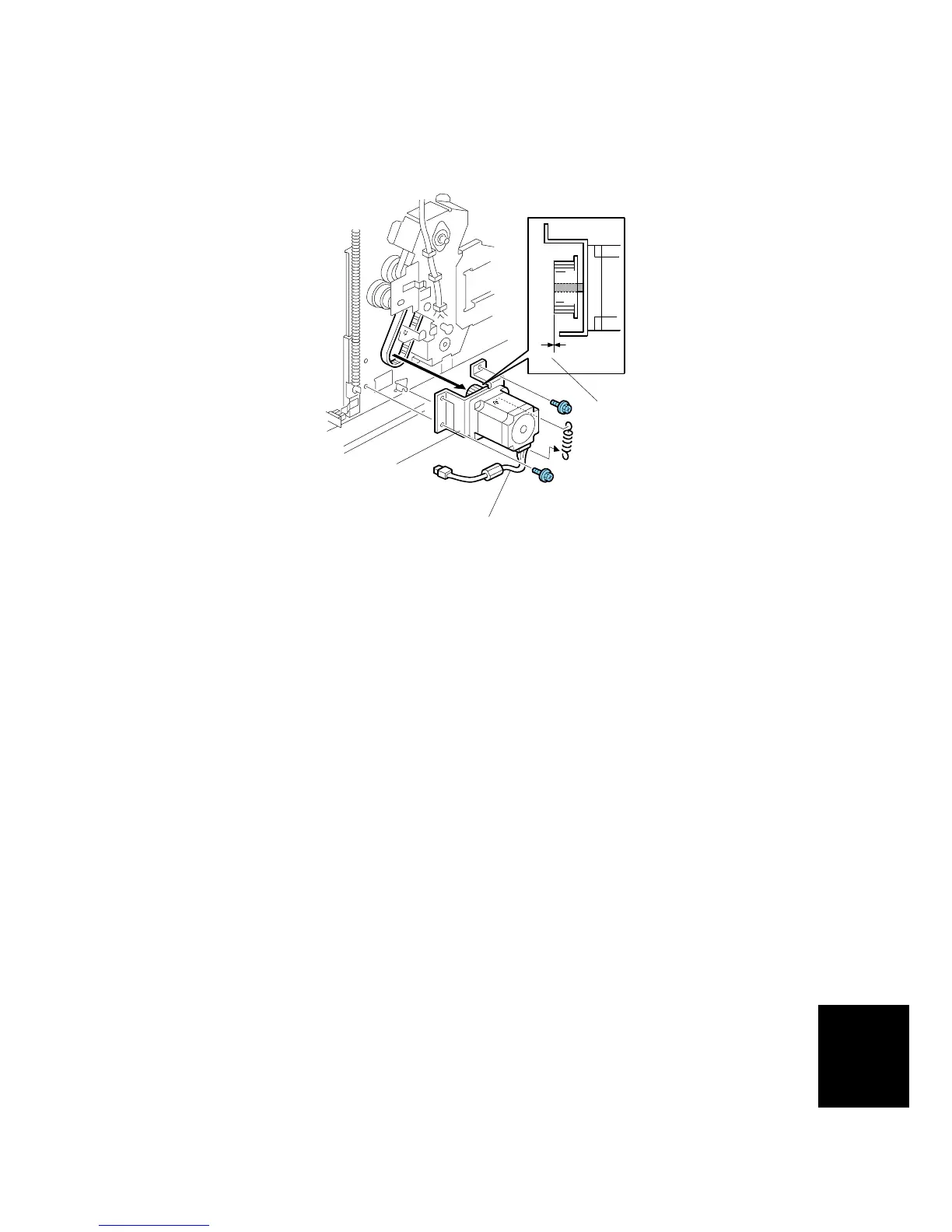

[A]: Registration motor (spring,  x3, belt,  x 1)
NOTE:
1) The side of the motor with the harness [B] should face downward, as
shown in the diagram.
2) The flange of the gear should face towards the motor as shown in the
diagram.
C267R021.WMF
[A]
[B]
0±0.5 mm
