Ricoh C231 - R2 Roller

ORIGINAL FEED SECTION
6-14
C231/C237/C238 SM

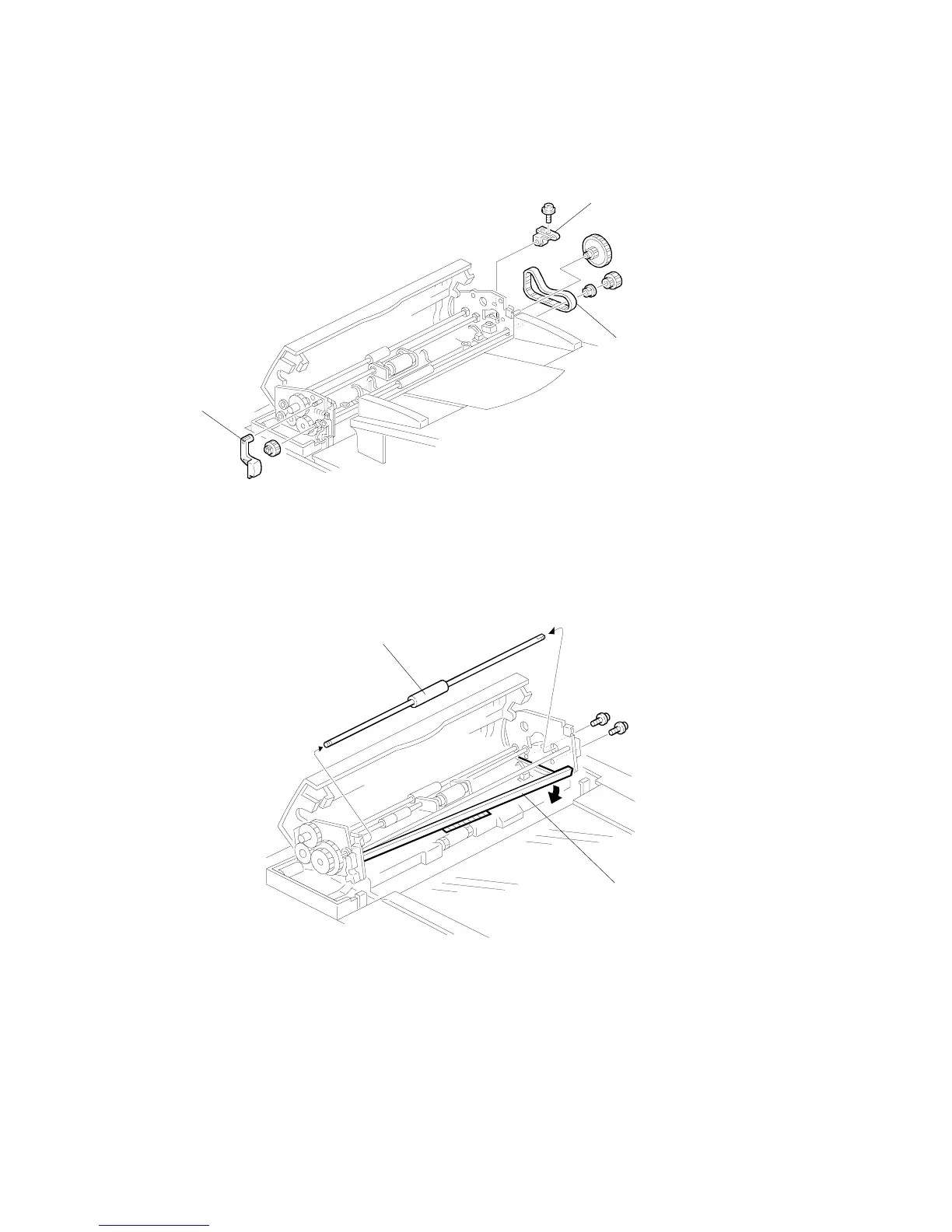

6.4.7 R2 ROLLER
A: ADF Release Lever
B: Timing Belt
C: Tensioning Roller Ass’y (1 screw)
Remove the R2 roller [D] while lowering the guide plate [E].
C231P513.WMF
C231P514.WMF
[A]
[B]
[C]
[D]
[E]
