Ricoh C231 - Master Clamper Opening Unit; Master Eject Position Sensor

MASTER EJECT
SM 3-27 C267
C267 Service
Manual

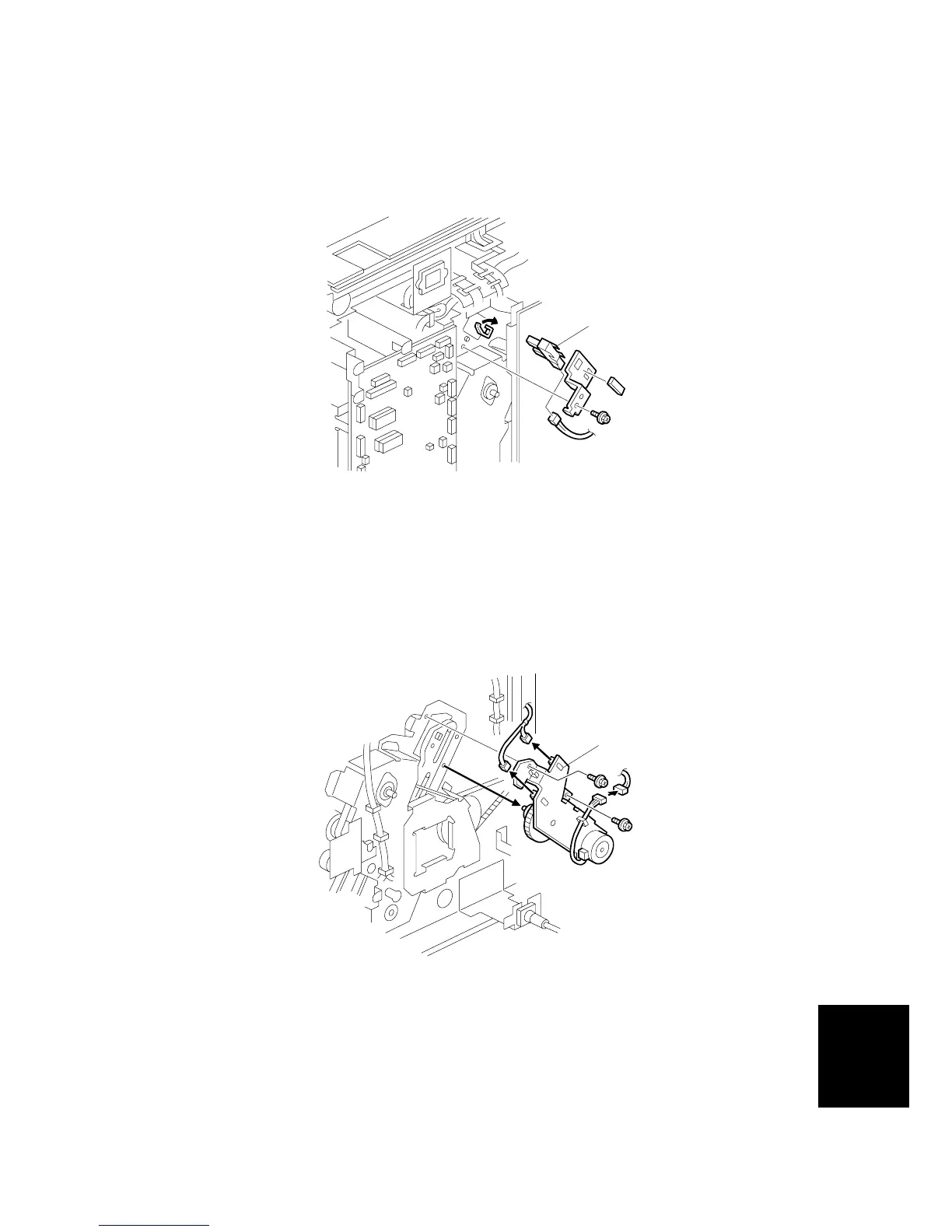

3.6.7 MASTER EJECT POSITION SENSOR
• Rear cover ( 3.2.3)
[A]: Master eject position sensor (= x 1,  x 1,  x 1)
3.6.8 MASTER CLAMPER OPENING UNIT
• Rear cover ( 3.2.3)
[A]: Master clamper opening unit ( x 3,  x 2)
C267R035.WMF
C267R023.WMF
[A]
[A]
