INSTALLATION PROCEDURE
C267 1-16 SM
Installation Procedure
CAUTION
To avoid serious injury, do not connect the power plug to the machine until
you are instructed to do so.

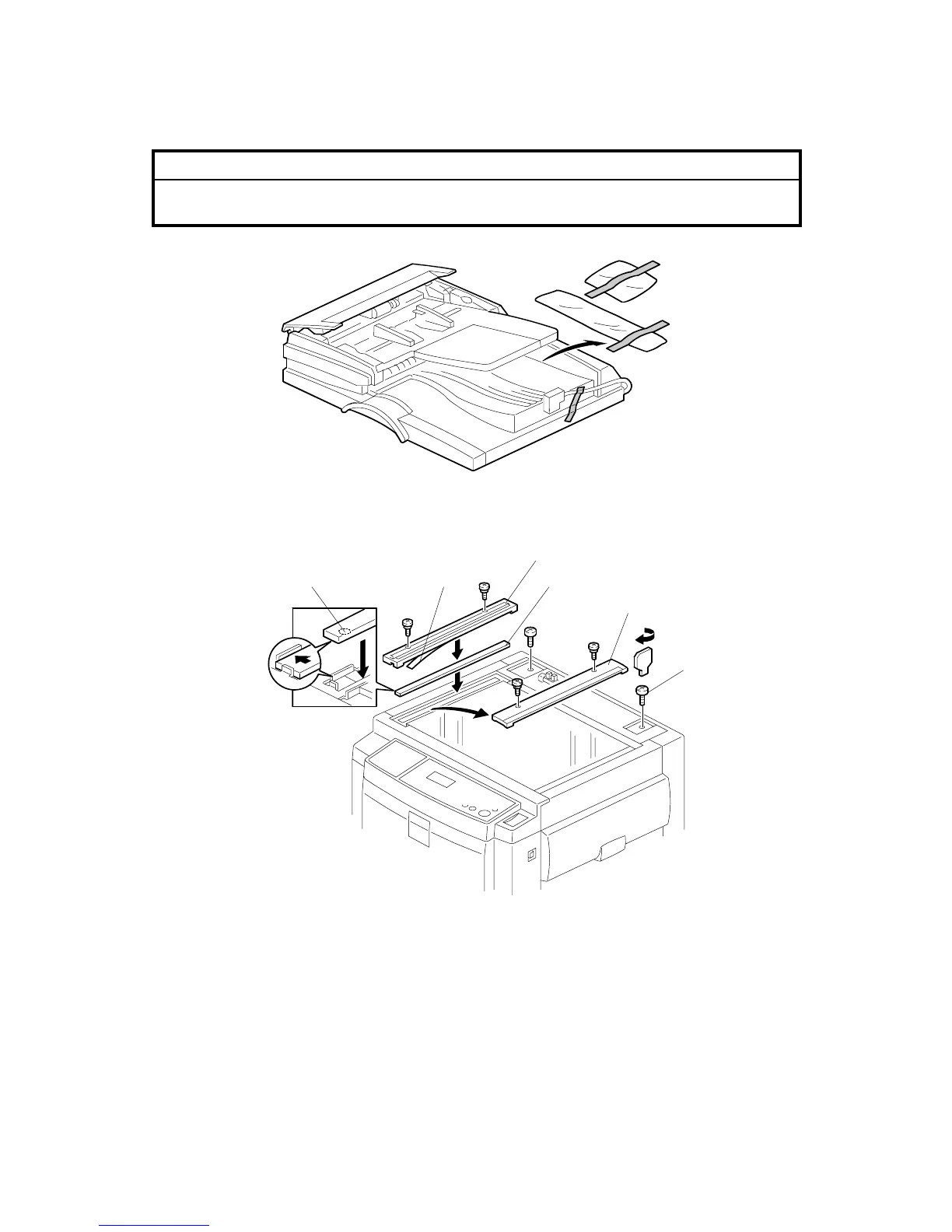

1. Remove the strips of tape.
2. Remove the left scale [A] ( x 2).
3. Place the DF exposure glass [B] on the glass holder.
NOTE: When installing the DF exposure glass, make sure that the white dot [C] is
positioned at the front side, as shown.
4. Peel off the backing [D] of the double-sided tape attached to the rear side of the
scale guide [E], then install the scale guide (2 screws removed in step 2).
5. Install the two stepped screws [F].
C267I909.WMF
C267I202.WMF
[A]
[B][C] [D]
[E]
[F]
To Next Page
