INSTALLATION PROCEDURE
C267 1-20 SM

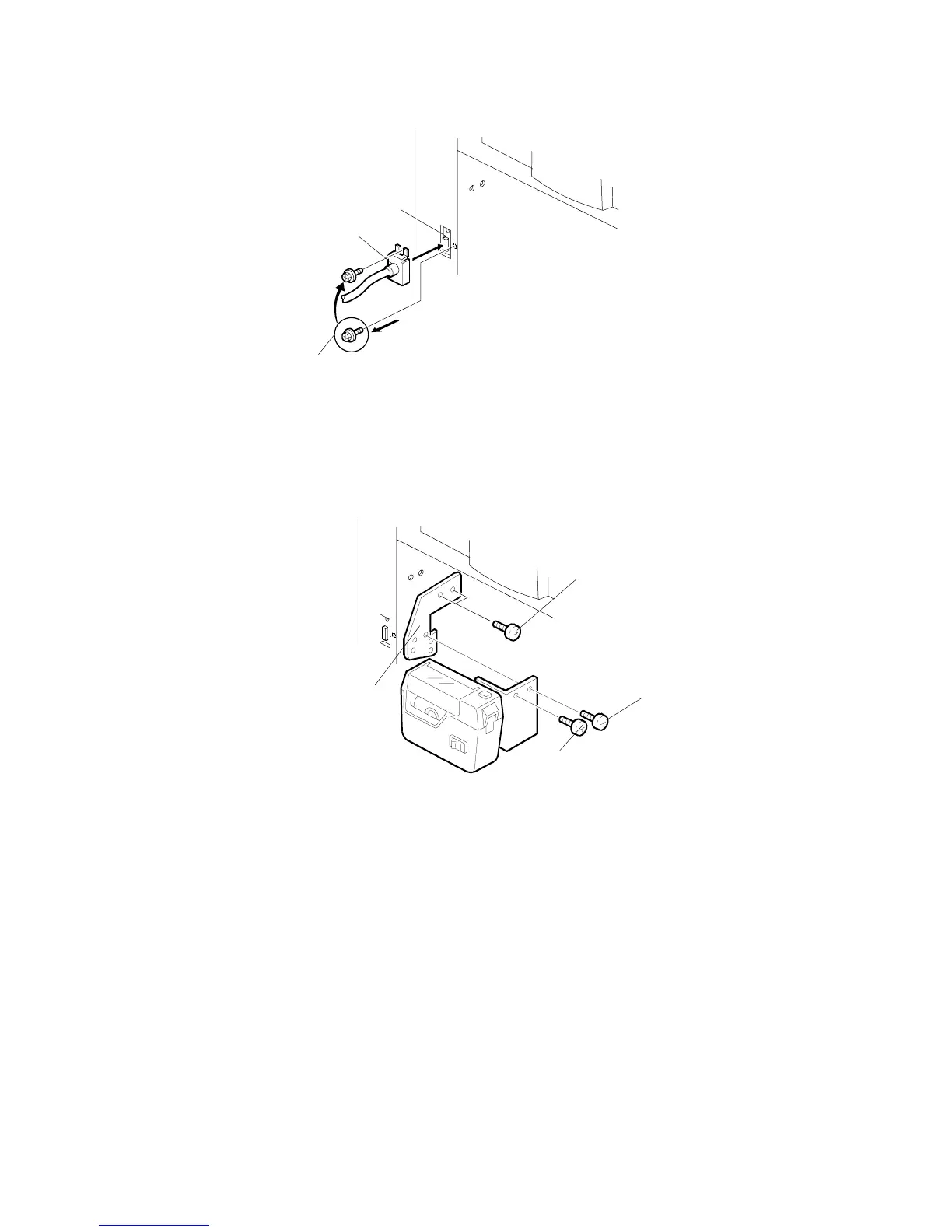

4. Connect the harness from the tape dispenser to the connector [B].
5. Remove the screw [C] that is beside the connector [B]. Reuse the screw to
secure the bracket [D], as shown.
6. Open the master eject unit.
7. Install the auxiliary bracket [E] on the tape dispenser with M4x8 screws
(accessories) [F].
8. Install the tape dispenser on the main body with two M4x8 screws [G]
(accessories) in the two outer holes in the tape dispenser bracket.
9. Close the master eject unit. Reinstall the paper delivery cover.
C267I901.WMF
C267I902.WMF
[B]
[C]
[D]
[E]
[F]
[F]
[G]
To Next Page
