BOARDS
SM 3-5 C267
C267 Service
Manual
3.3.2 PSU
NOTE: When the PSU is replaced, the thermal head voltage returns to the default.
Adjust the thermal head voltage ( 3.5.7) after installing the new board.

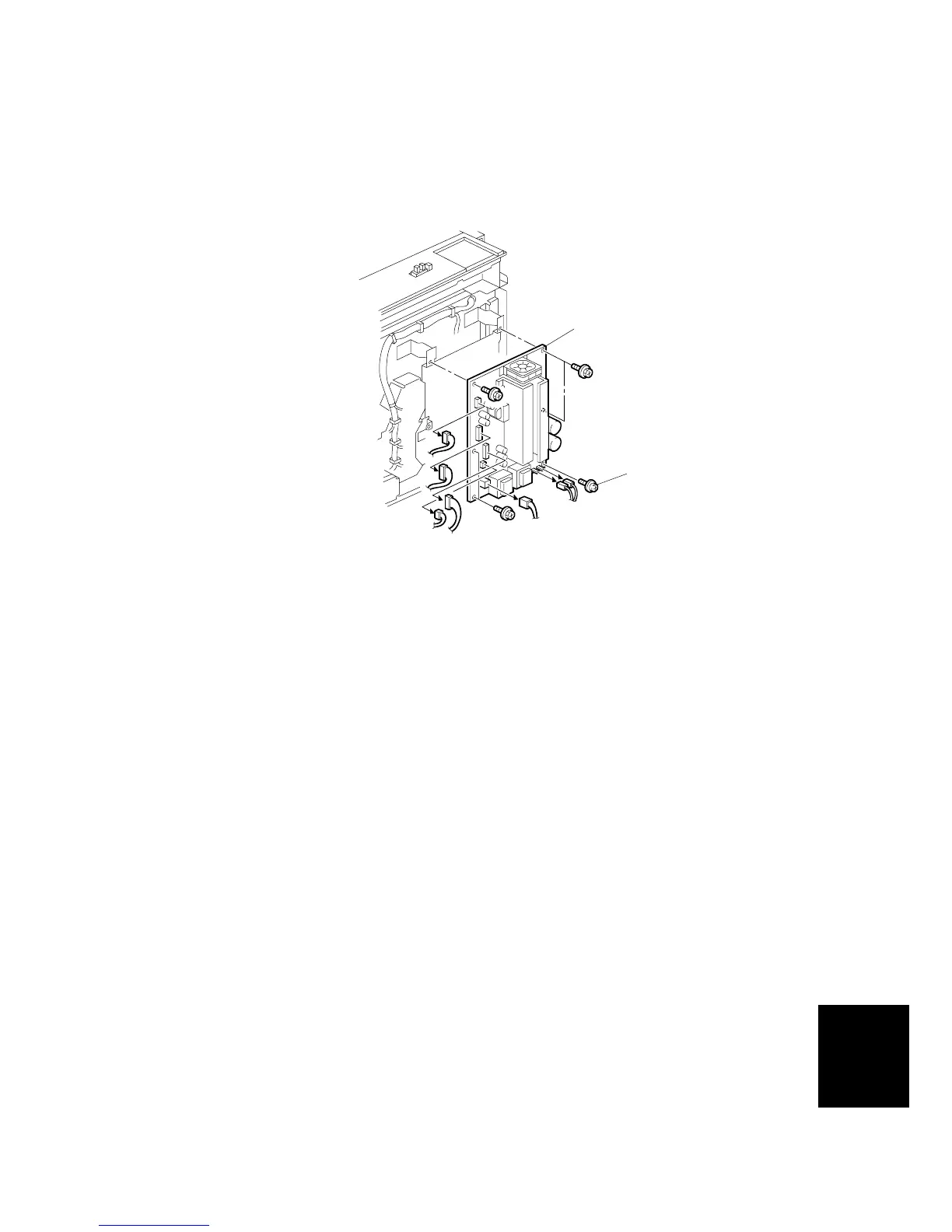

PSU board
• Rear cover ( 3.2.3)
[A]: PSU ( x 6,  x 7)
NOTE: The split washer screw [B] is used for grounding. Do not use another type
of screw here.
PSU board with bracket
• Rear cover ( 3.2.3)
[A]: PSU ( x 5,  x 7)
C267R005.WMF
[A]
[B]
