6.12.2 ADF JAM (P JAM LOCATION INDICATOR)
Feeding in the original (ADF)
Feeding in
The P jam indicator lights if the original registration sensor does not turn on within 5
seconds after the original feed motor turns on
Feeding out
When the scanner has fed out the correct length and feeds 150mm more, but the
original registration sensor still detects the original, the P jam indicator lights.
Just after turning on the main switch
If the original registration sensor detects an original, the P jam indicator lights.
Original Registration Sn
Original Feed Motor
Original feed Clutch
Feeding in
Finish Scanning
Feeding out

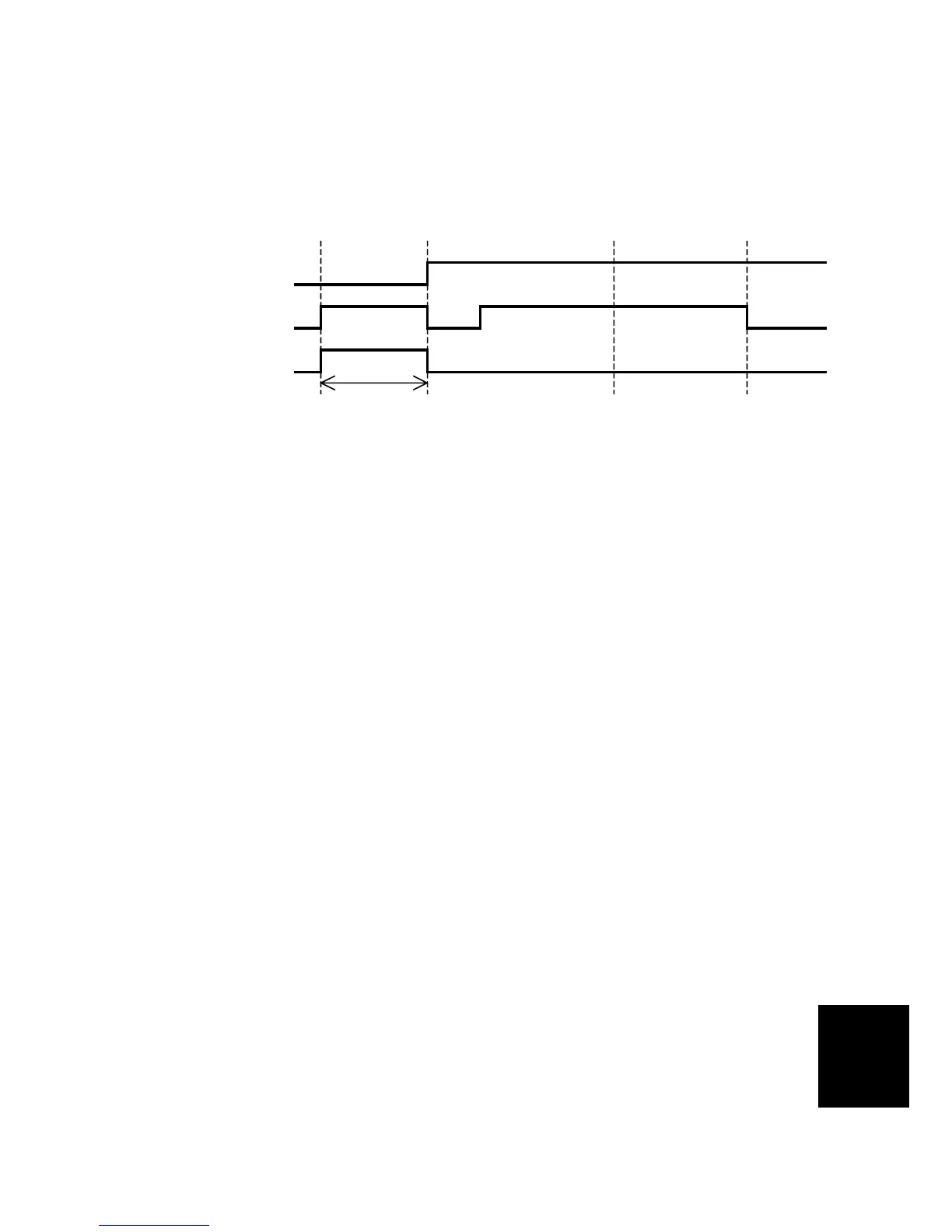

C267D904.WMF
