DRUM AND DRIVE SECTION
6-35
SM C231/C237/C238
Replacement
and
Adjustment
•

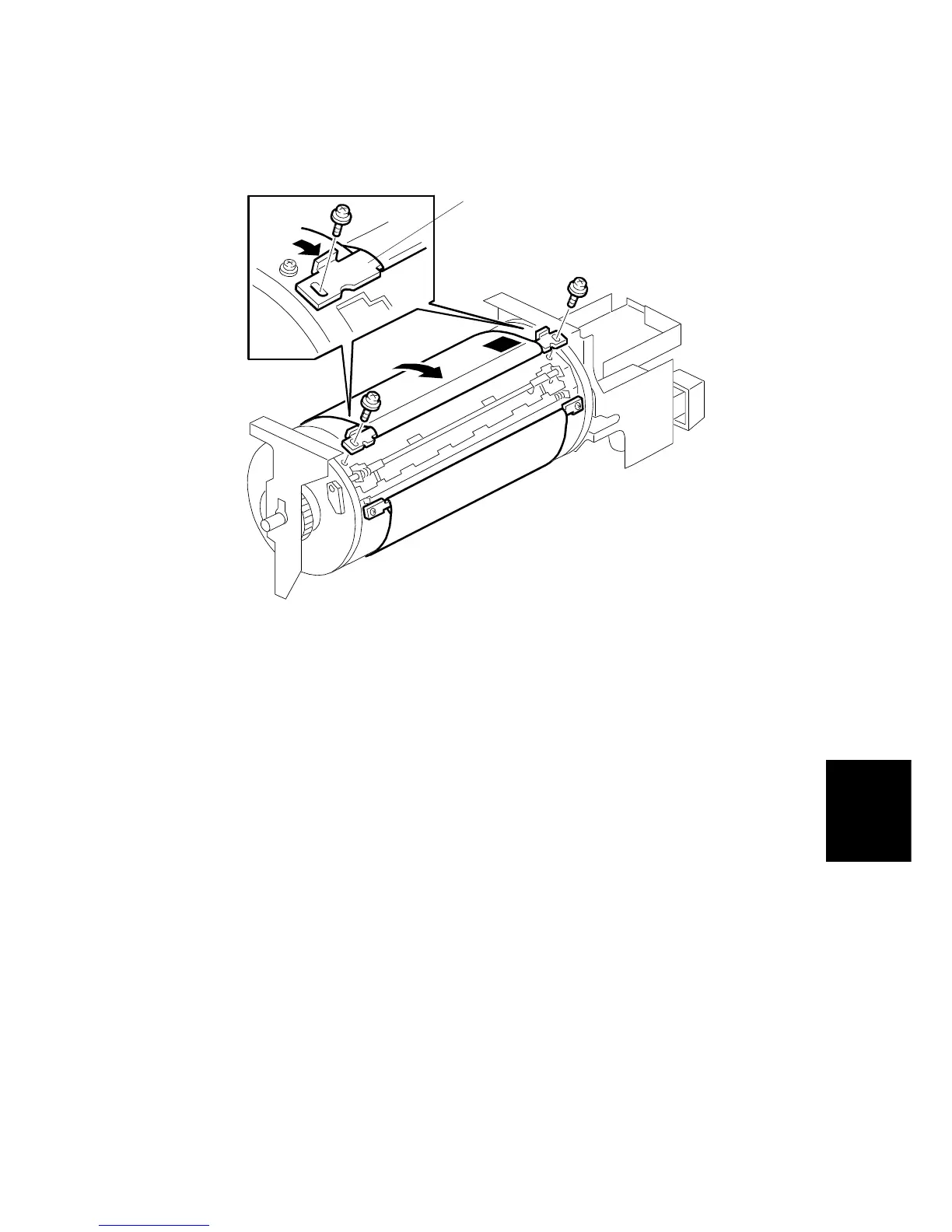

When replacing the cloth screen, spread the screen around the metal screen
while strongly pulling the stay [A]. Adjust the stay so that it is parallel to the
master clamper, then tighten the screws.
•
Make sure that the cloth screen is not wrinkled while spreading it around the
drum.
C231R556.WMF
[A]
