PAPER DELIVERY SECTION
6-54
C231/C237/C238 SM

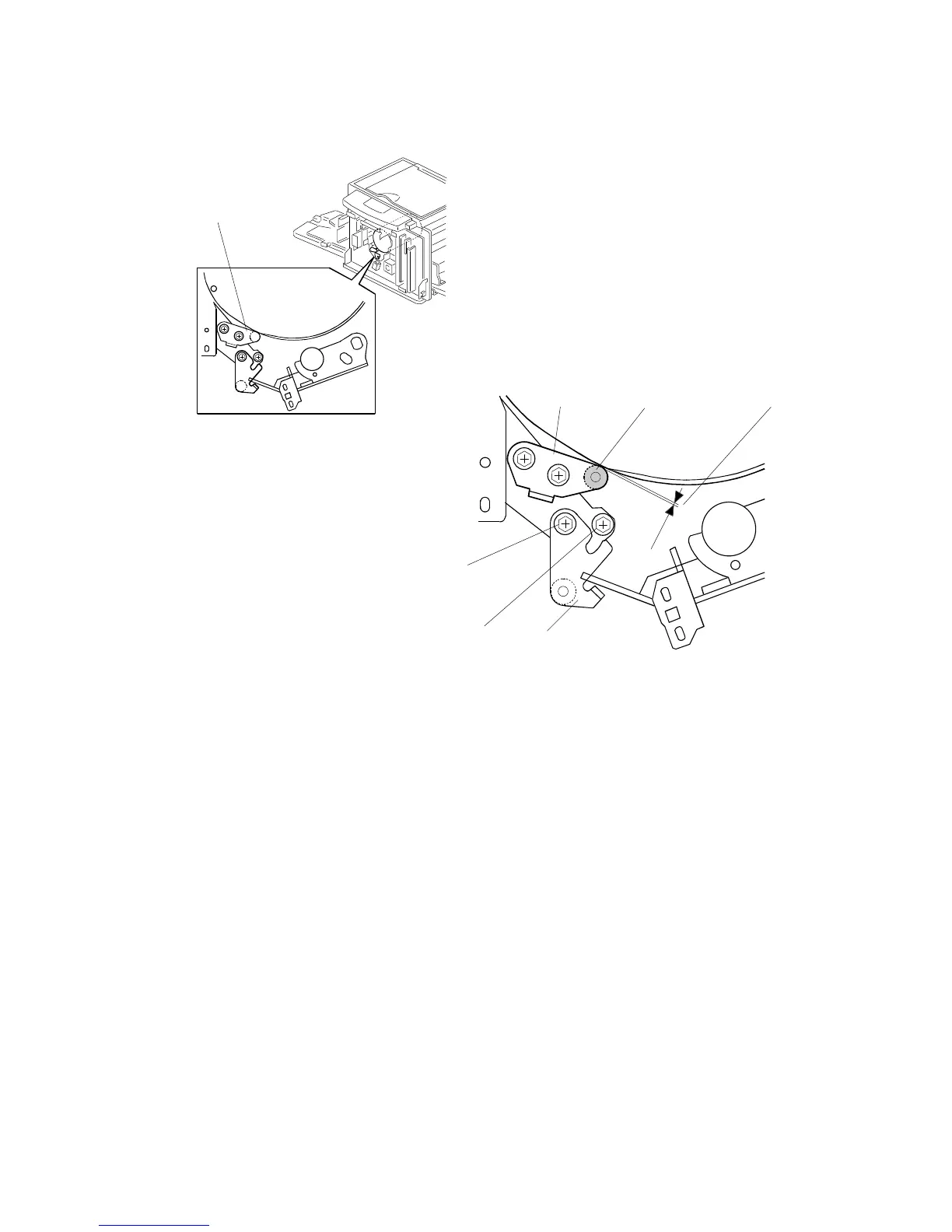

4. Loosen screw [A] then screw [B] in this order (do not remove them). Make sure
that the bracket [C] becomes free from engagement and the cam follower [D]
contacts the drum flange.
5. Measure the gap [E] between the cam follower and cam face (front drum
flange). It should be 0 to 0.5 mm.
6. If the gap is not correct, loosen the two screws securing the cam follower
bracket [F].
7. Retighten the two screws while pushing the cam follower against the cam face.
Make sure that the gap [E] is 0 or less than 0.5 mm.
NOTE:
Do not push the cam followers too strongly against the cam.
8. Reposition the bracket [C] and tighten the screws [A] and [B].
C231R575.WMF
C231R576.WMF
[F]
[A]
[F]
[C]
[D]
[E]
[B]
To Next Page
