INSTALLATION PROCEDURE
C231/C237/C238 1-16 SM
Installation Procedure
- For C238 -

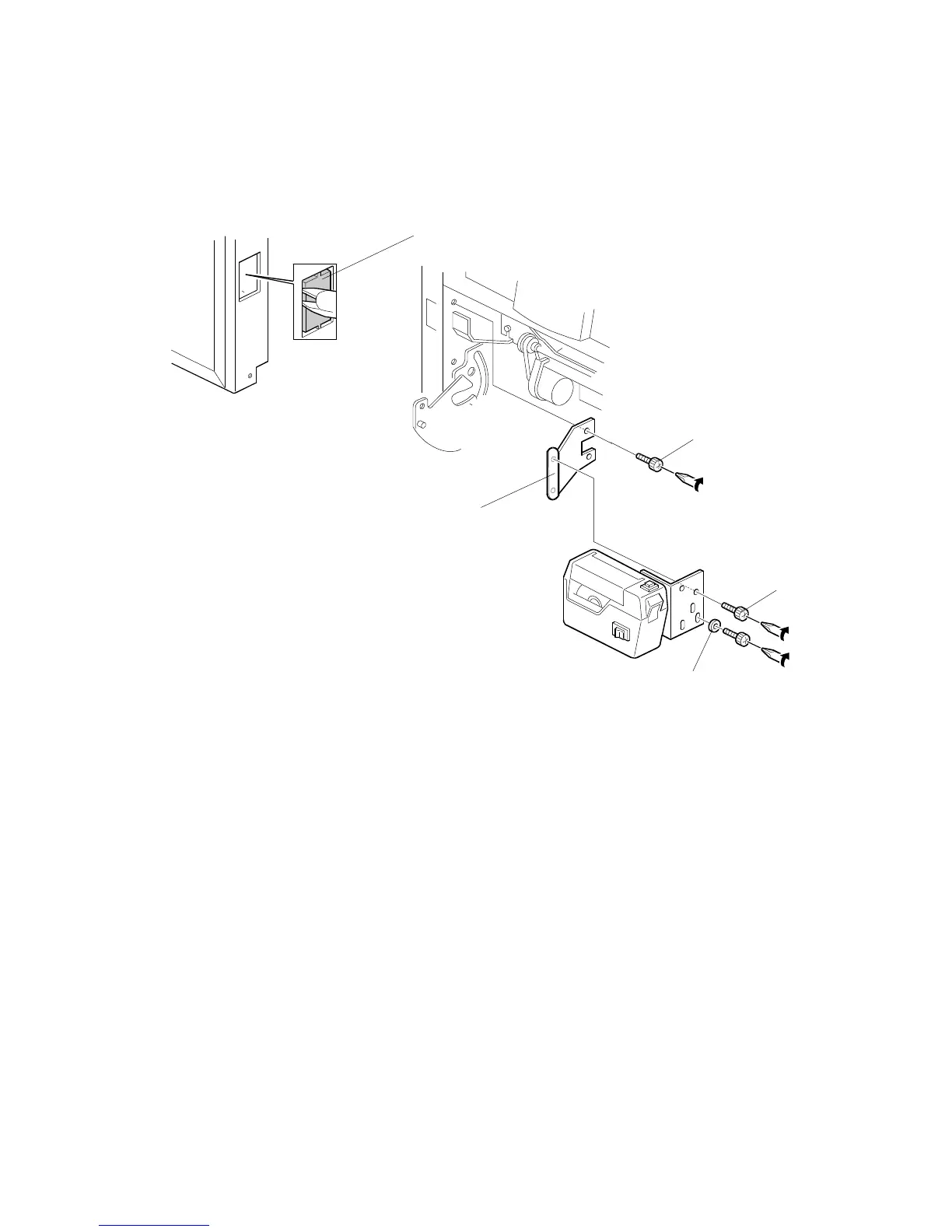

1. Turn off the main switch and unplug the power cord.
2. Remove the paper delivery plate (4 screws).
3. Cut the cap [A] off the rear cover of the main body with pliers, then connect the
tape marker cable to the main body.
4. Install the auxiliary bracket [B] on the tape marker with M4 x 8 screws
(accessories) [C].
5. Install the tape marker on the main body with two knob screws [D]
(accessories) in the two outer holes in the tape marker bracket.
NOTE:
1) Tighten the knob screws with a screwdriver to prevent them from
coming loose.
2) Install the lock washer [E] (accessories) with the lower of the two
knob screws.
6. Reinstall the paper delivery plate.
7. Refer to "Common Steps".
C238I006.WMF
C238I536.WMF
[B]
[C]
[D]
[E]
[A]
