INSTALLATION PROCEDURE
C267 1-10 SM

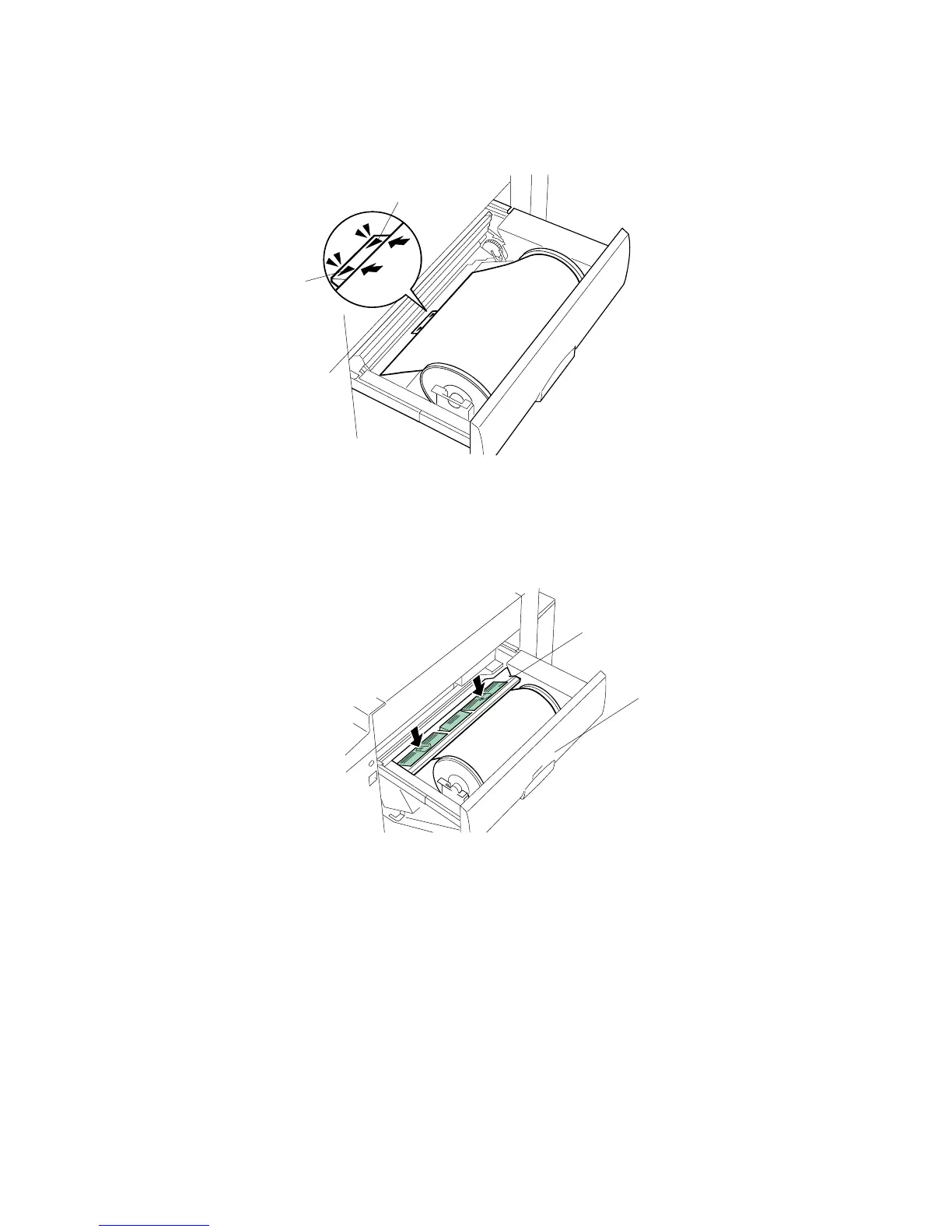

9. Install the master roll, and open the master making unit cover,
10. Insert the leading edge of the master roll under the platen roller. The arrows [B]
indicate the correct position of the master leading edge.
11. Close the master making unit cover [C] using both hands until it clicks into
place.
12. Close the master making unit [D].
C267I153.WMF
C267I154.WMF
[B]
[C]
[B]
[D]
