MASTER EJECT UNIT
SM 6-13 C267
C267 Service
Manual

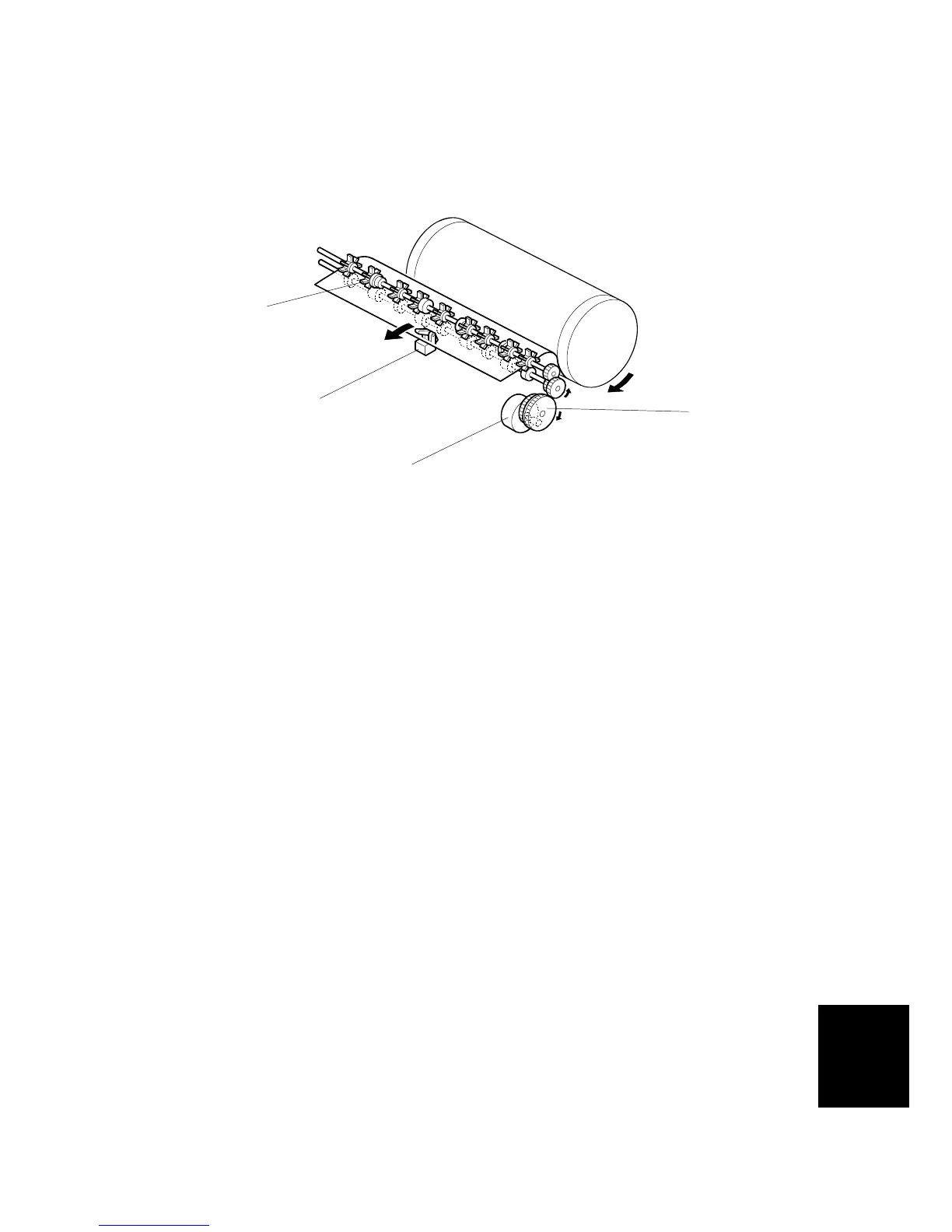

6.6.4 MASTER EJECT ROLLER MECHANISM
Mechanism
Master eject motor [A]
↓
Gears [B]
↓
Master eject rollers [C] – the upper roller has paddles
↓
Pick up the master and feed it into the master eject box
NOTE: During this process, the master eject sensor [D] detects master eject jams.
C267D937.WMF
[A]
[B]
[C]
[D]
