MASTER FEED
SM 6-15 C267
C267 Service
Manual
6.7 MASTER FEED
6.7.1 OVERVIEW
The master making unit makes an image on the master and feeds the master to
the drum. (: Digital Duplicators – Duplicating Process – Master Feeding)
Procedure

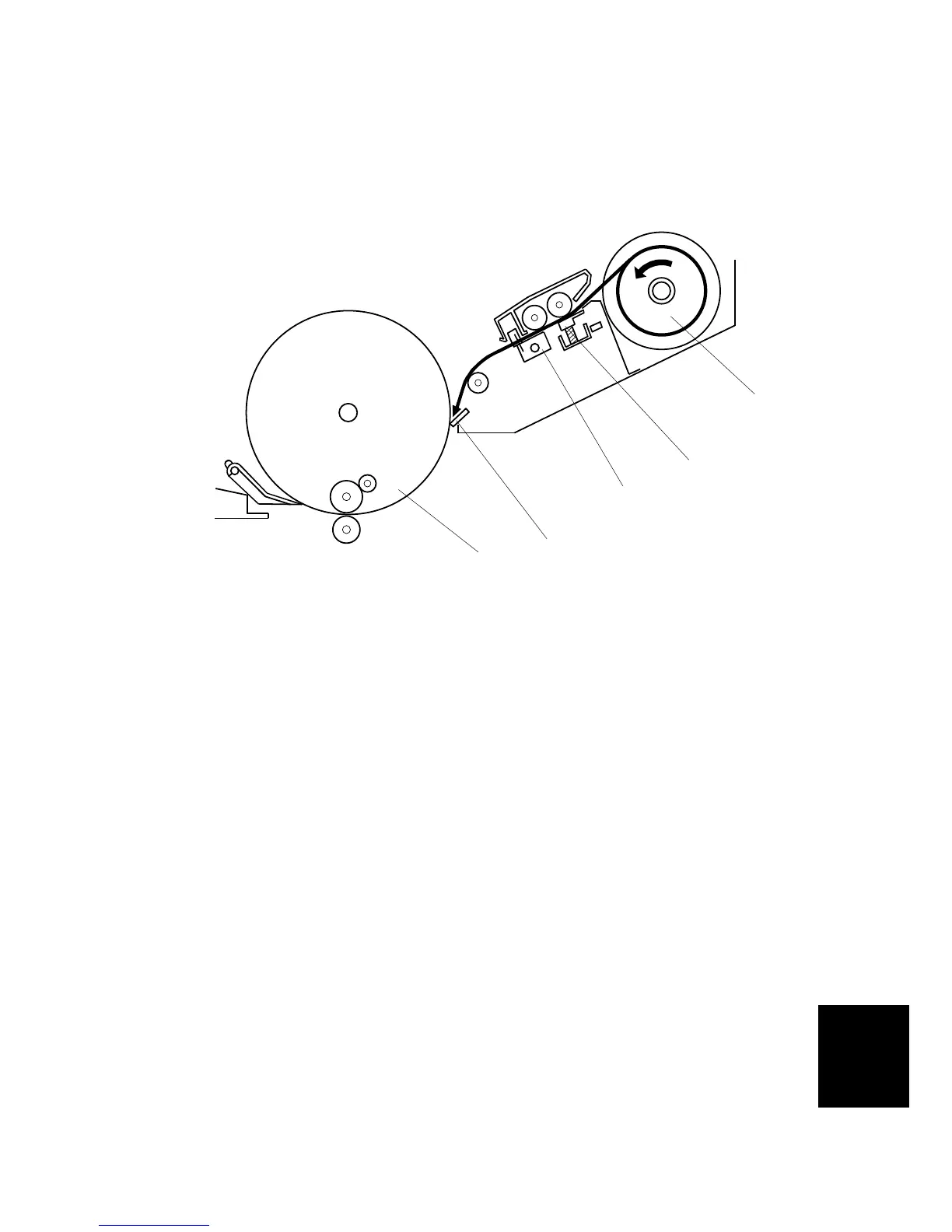

The machine feeds the master from the master roll [A].
↓
The thermal head [B] makes an image on the master.
↓
Clamper [C] opens. (The drum is at the master feed position.)
↓
The clamper clamps the master.
↓
The master is wrapped around the drum [D]. Then, the cutter [E] cuts the master.
Then, after cutting, the drum turns a bit more to complete the wrapping.
C267D939.WMF
[A]
[B]
[C]
[E]
[D]
