• When printing finishes and the printing pressure is released, the cam follower
arm [F] is engaged by the printing pressure release arm [D] and held in the lower
position. Therefore, after printing finishes, the cam follower is out of contact with
the cam, and the exit pawl moves away from the drum to its normal position.

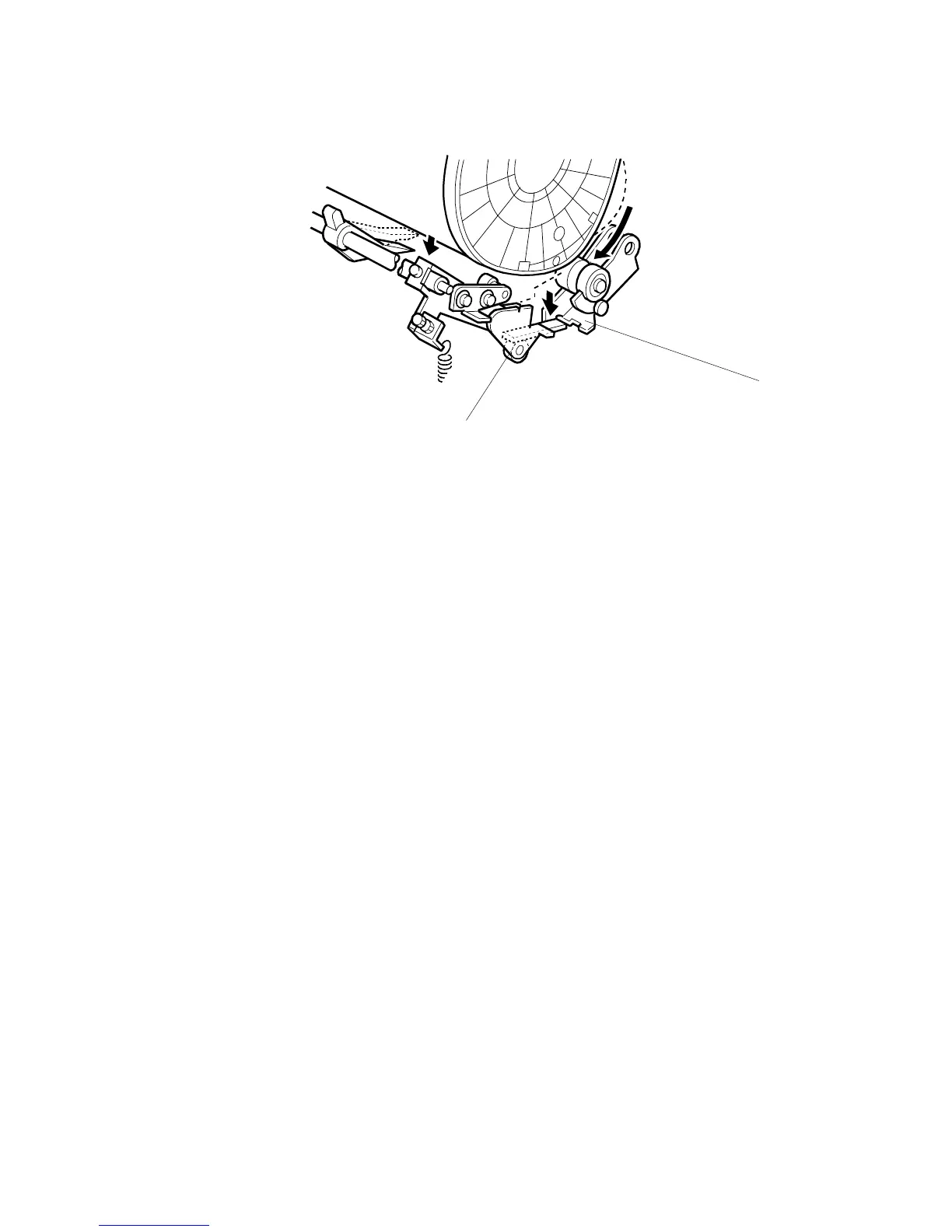

C267D024.WMF
