4. STARTUP
4 - 20
4.5.3 Status display mode
The servo status during operation is shown on the 5-digit, 7-segment LED display. Press the "UP" or
"DOWN" button to change display data as desired. When the required data is selected, the corresponding
symbol is displayed. Press the "SET" button to display that data. At only power-on, however, data appears
after the symbol of the status display selected in [Pr. PC36] has been shown for 2 s.

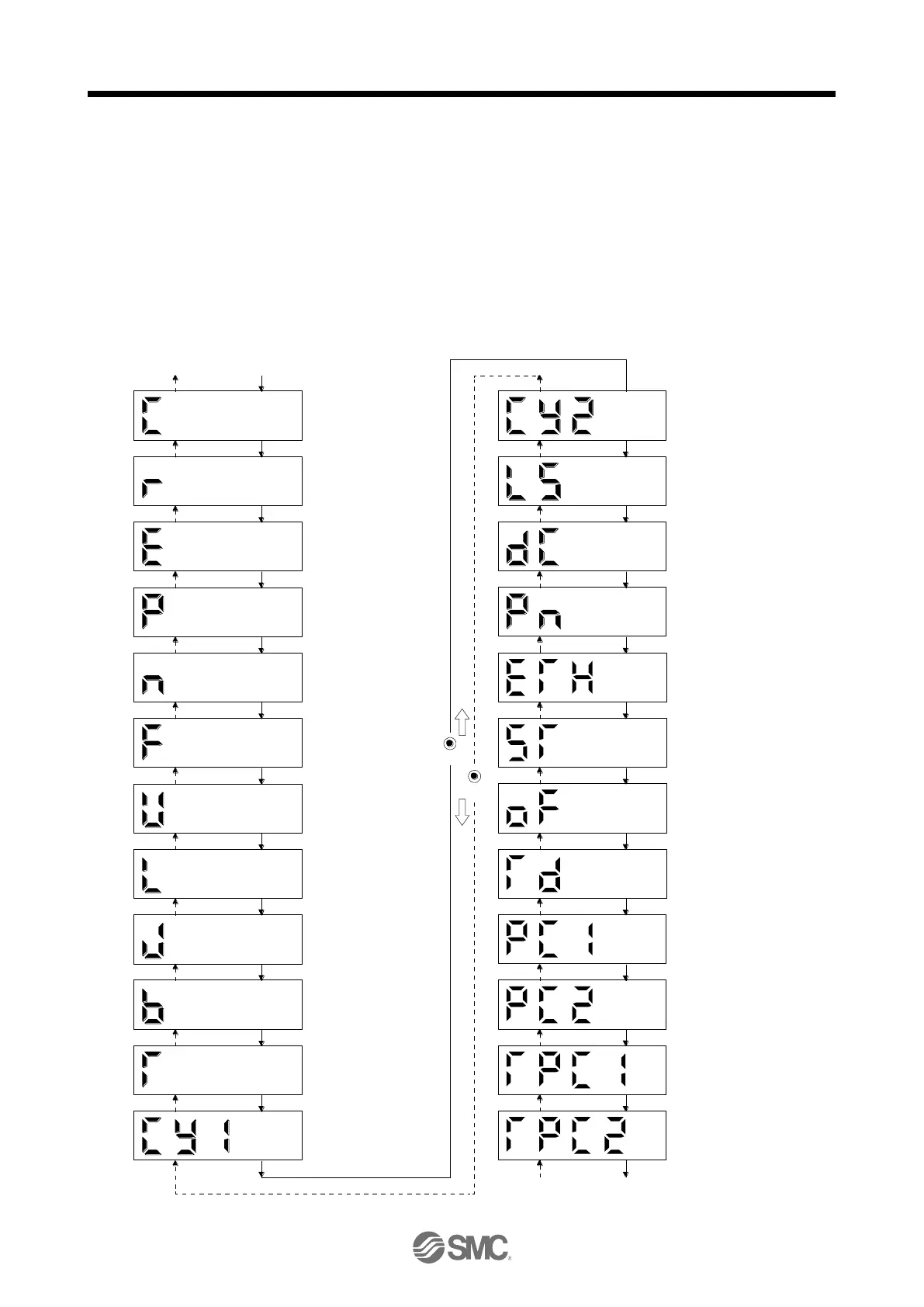

(1) Display transition
After selecting the status display mode with the "MODE" button, pressing the "UP" or "DOWN" button
changes the display as shown below.
(a) Standard control mode/DD motor control mode
Regenerative load ratio
Cumulative feedback
pulses
Effective load ratio
Peak load ratio
Instantaneous torque
Within one-revolution
position (1 pulse unit)
Servo motor speed/
Linear servo motor speed
Within one-revolution position
(1000 pulses unit)
Droop pulses
ABS counter
Cumulative command
pulses
Load to motor inertia ratio
Command pulse
frequency
Bus voltage
Internal temperature of encoder
Settling time
Oscillation detection frequency
Number of tough drives
Unit power consumption 1
(increment of 1 W)
Unit total power consumption 1
(increment of 1 Wh)
Unit power consumption 2
(increment of 1 kW)
Unit total power consumption 2
(increment of 100 kWh)
Unit total power consumption 2
(increment of 100 kWh)
Cumulative feedback pulses
Analog speed command
voltage
Analog speed limit
voltage
Analog torque limit voltage
Analog torque command
voltage
DOWN
UP
