3. SIGNALS AND WIRING

3 - 17

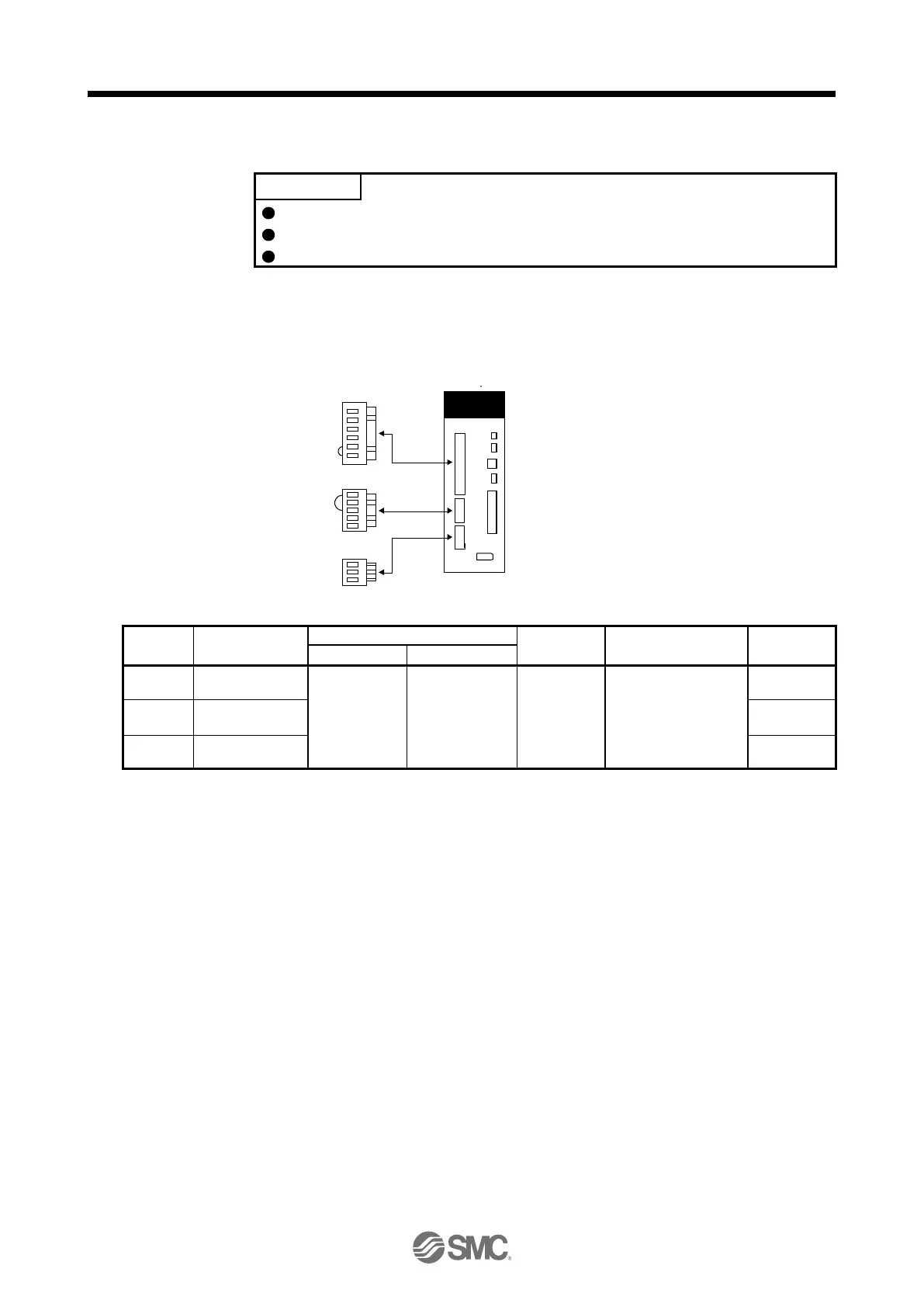

3.3.3 Wiring CNP1, CNP2, and CNP3

POINT

For the wire sizes used for wiring, refer to section 11.9.

When wiring, remove the power connectors from the driver.

Insert only one wire or ferrule to each wire insertion hole.

Use the driver power supply connector for wiring CNP1, CNP2, and CNP3.

(1) Connector

(a) LECSB2-T□

CNP2

CNP1

CNP3

Servo amplifier

Table 3.1 Connector and applicable wire

Connector

Receptacle

assembly

Applicable wire

Stripped

length [mm]

Manufacturer

Remarks

Size

Insulator OD

CNP1

K05A01490216

AWG 18 to 14

39 mm or shorter

MITSUBISHI

ELECTRIC SYSTEM &

SERVICE CO., LTD

(Note)

Open tool

comes with.

CNP2

K05A01490209

CNP3

K05A01490210

Note. Please purchase from distributor or distributor of Mitsubishi Electric Corporation.
