16. POSITIONING MODE
16.9 POINT TABLE SETTING METHOD
The following shows the setting method of point tables using Setup software (MR Configurator2
TM
).
16.9.1 Setting procedure

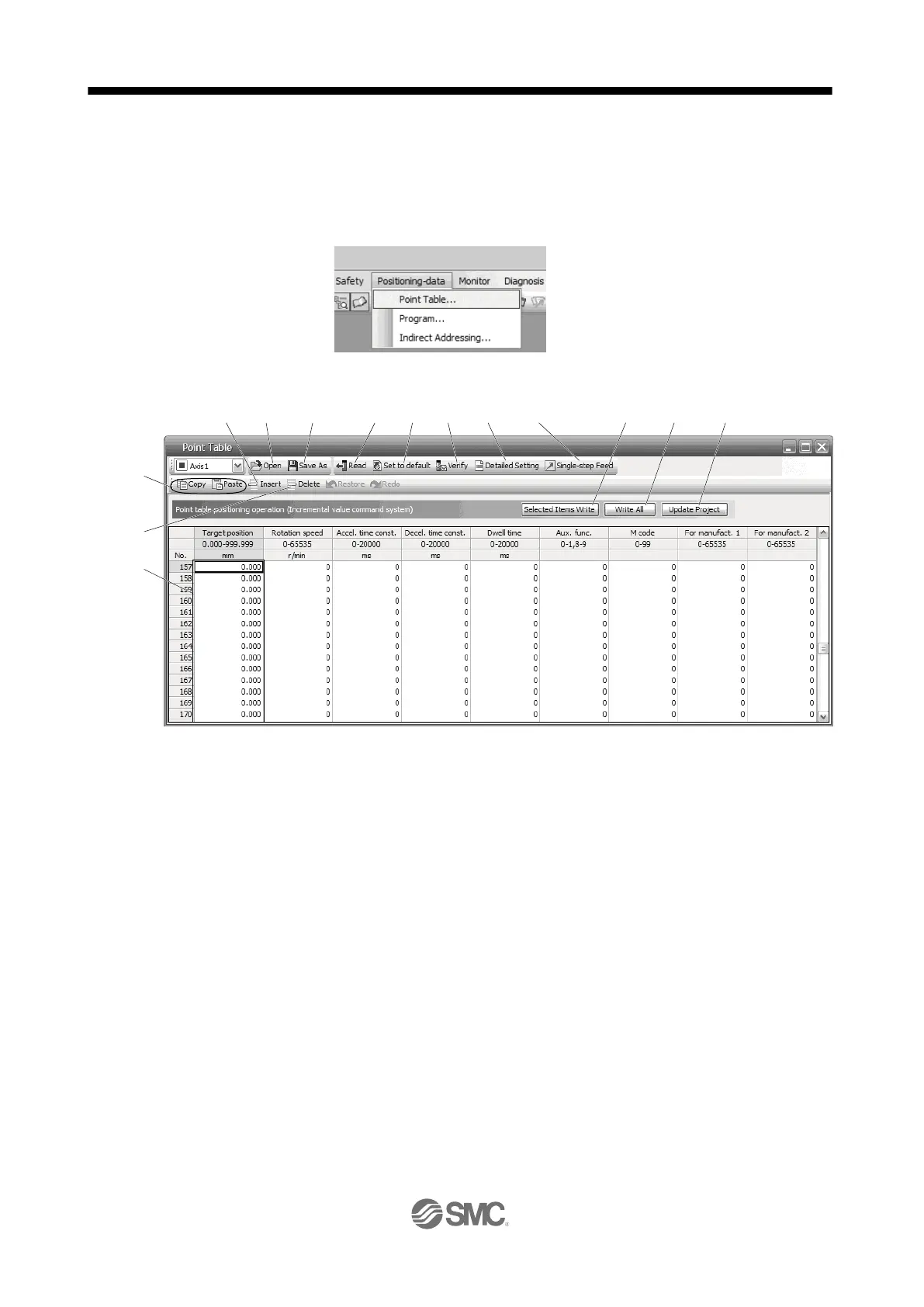

Click "Positioning-data" in the menu bar and click "Point Table" in the menu.
The following window will be displayed by clicking.
(1) Writing point table data (a)
Select changed point table data and click "Selected Items Write" to write the changed point table data to
the driver.
(2) Writing all point table data (b)
Click "Write All" to write all the point table data to the driver.
(3) Reading all point table data (c)
Click "Read" to read and display all the point table data from the driver.
(4) Initial setting of point table data (d)
Click "Set to default" to initialize all the data of point table No. 1 to 255. This also initializes data currently
being changed.
(a)(g)(f)(d)(c)(m)(l)(i)
(h)
(j)
(k)
(e) (b) (n)
