17．Positioning mode (pushing operation)
17.7 Point table type pushing operation
17.7.1 About Point table type pushing operation
Pushing operation is a function that generates a pushing torque in the direction from “Pushing start
position” to “Push limit position” within the pushing range (between “Pushing start position” and “Push
limit position”).
Point table method In the pushing operation, positioning operation or pushing operation can be selected
with the auxiliary function of the point table data.
Positioning start position to Pushing start position, and data of pushing operation by pushing torque
([0.1%] unit) within the pushing range are managed by point table data, and a series of operations are
executed. This can be done by turning on ST1 (start signal).

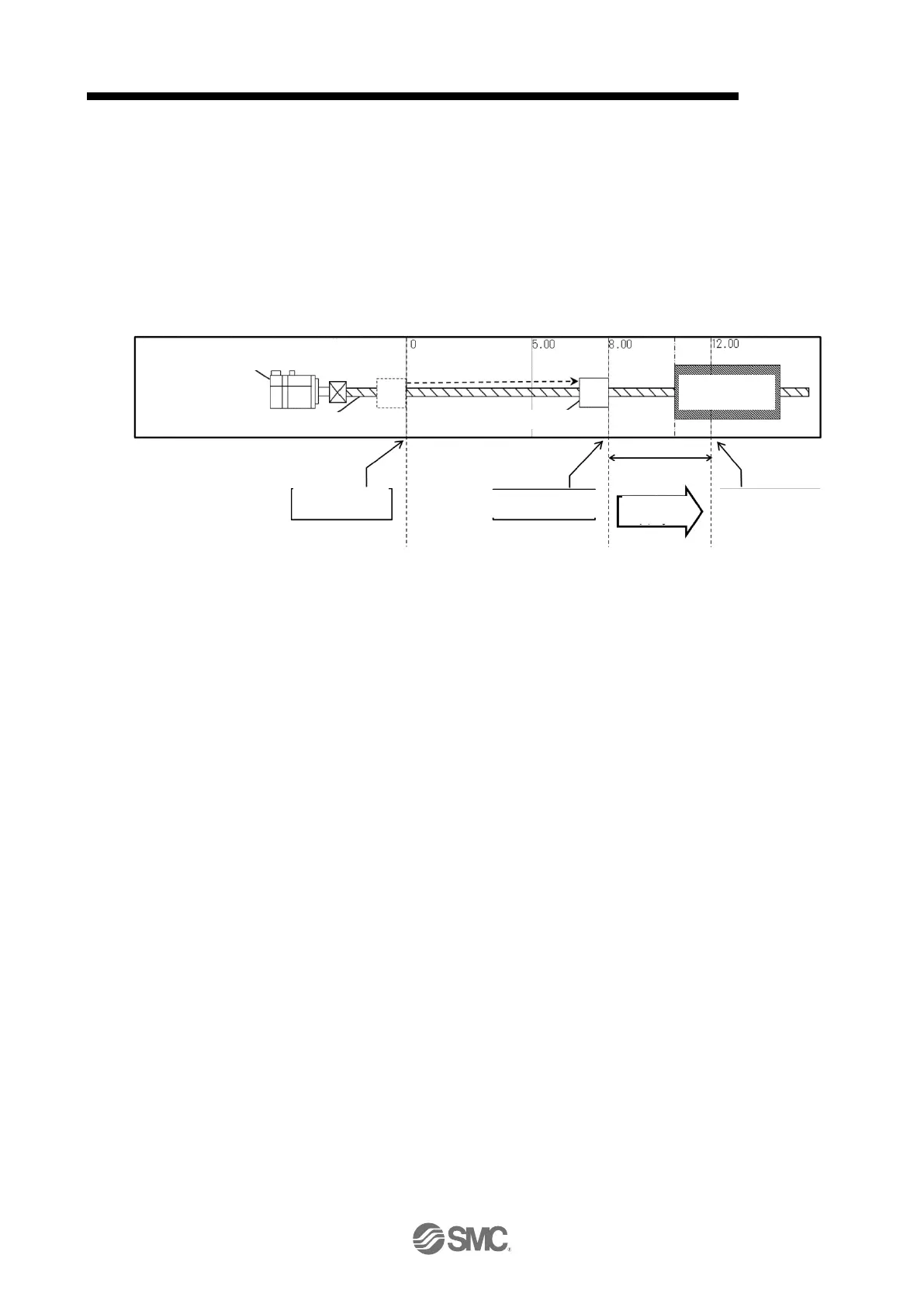

pushing
object
positioning
start position
Motor
pushing
torque
pushing range
position address
Table
Ball screw
pushing start position
(Push-back detection position)
push limit position
(Missed swing detection
position)
