11. OPTIONS AND PERIPHERAL EQUIPMENT
11 - 6

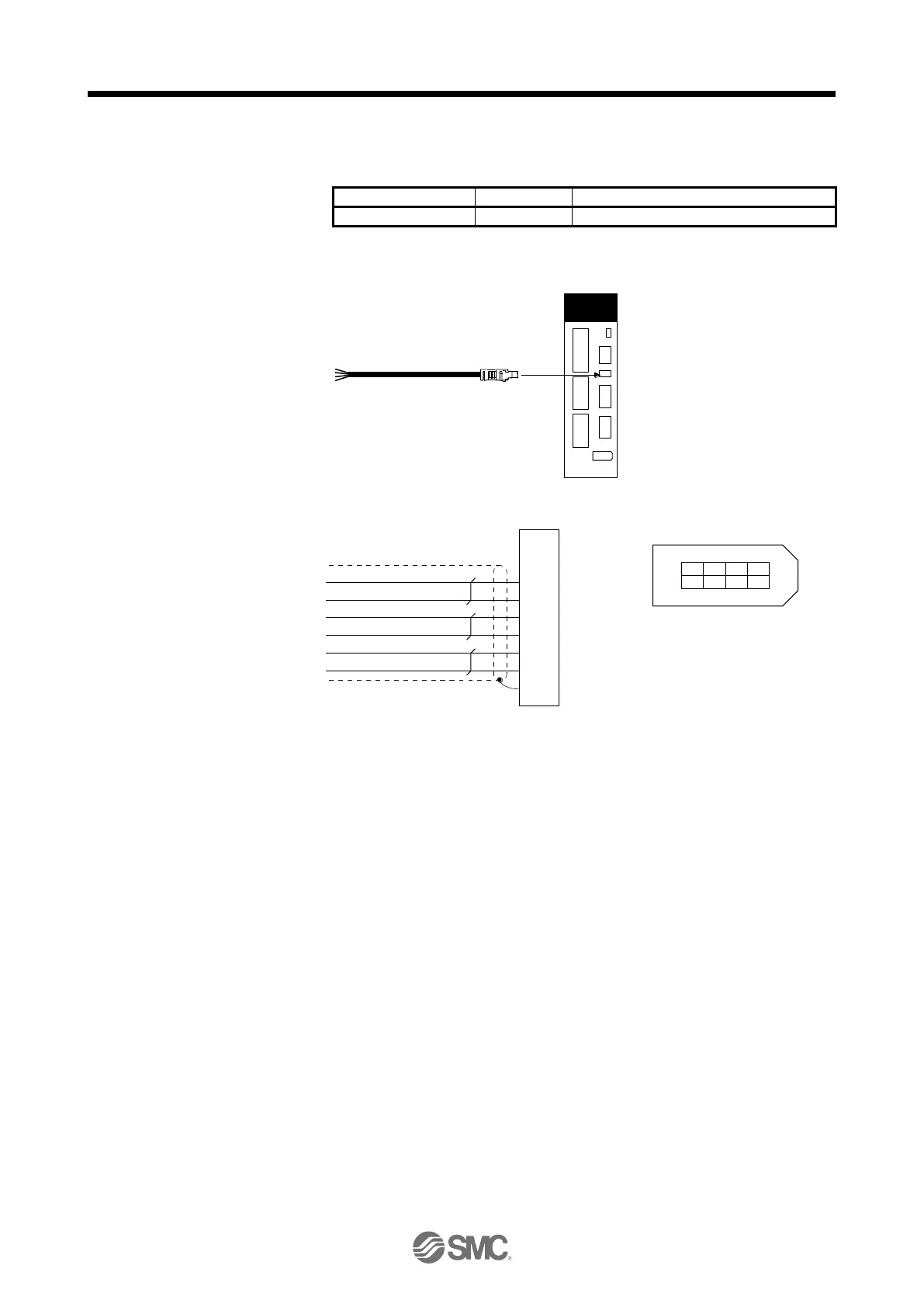

11.1.2 STO cable
This cable is for connecting an external device to the CN8 connector.
Cable model
Cable length
Application
LEC-MR-D05UDL3M
3 m
Connection cable for the CN8 connector
(1) Configuration diagram
Servo amplifier
MR-D05UDL3M-B
CN8
(2) Internal wiring diagram
1
2
3
6
7
Plate
STO2
TOFB1
TOFB2
Shield
STO1
TOFCOM8
4
5
STOCOM
Yellow (with black dots)
Yellow (with red dots)
Gray (with black dots)
Gray (with red dots)
White (with black dots)
White (with red dots)
(Note)
2
1
64 8
CN8 connector
3 5 7
Viewed from the connection part
Note.
Do not use the two core wires with orange insulator (with red or black dots).
LEC-MR-D05UDL3M
Driver
