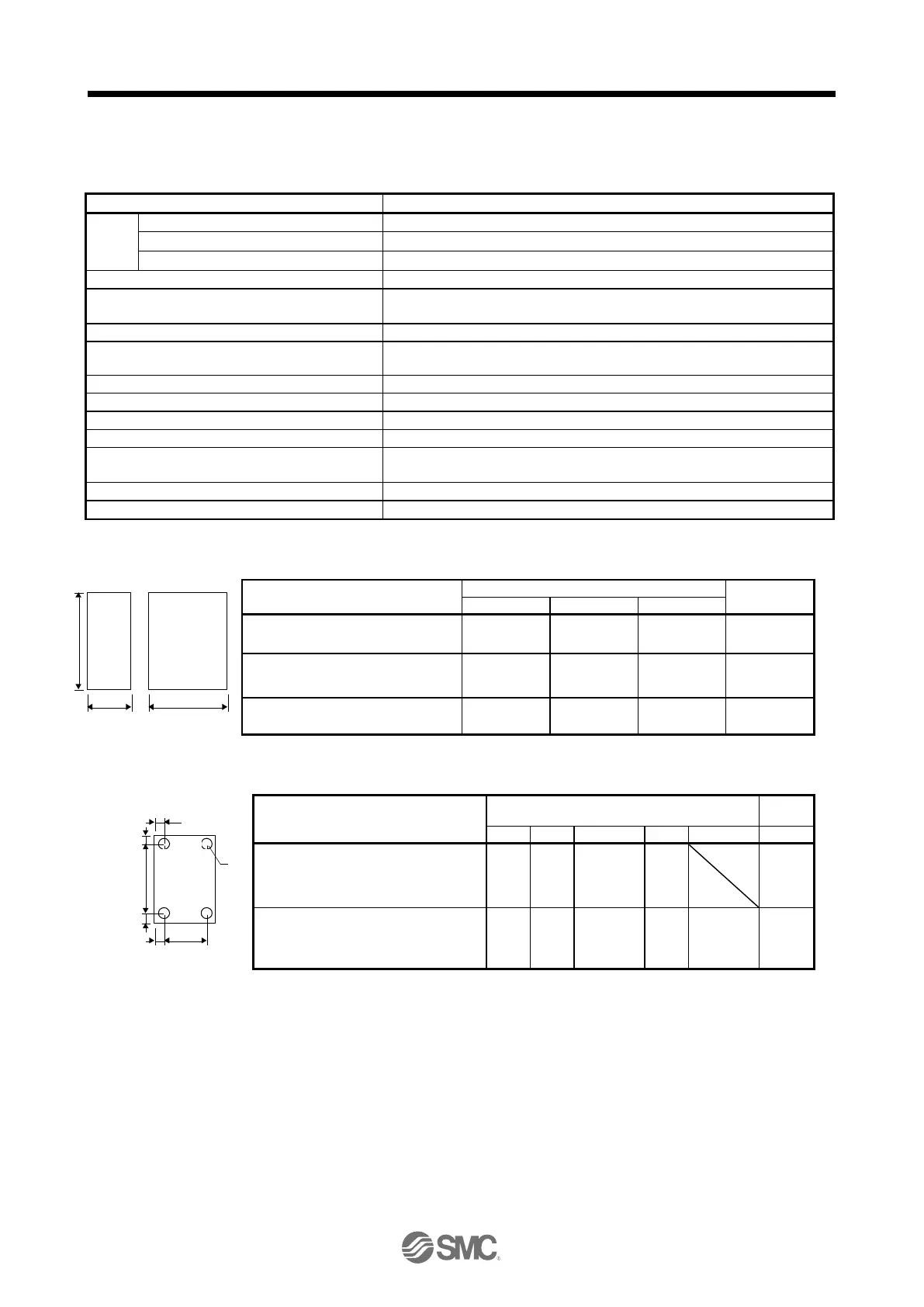

App. 4.8 Technical data
App. 4.8.1 LECSB2-T□ driver
Item
LECSB2-T5 / LECSB2-T7 / LECSB2-T8 / LECSB2-T9
Power
supply
Main circuit (line voltage)
3-phase or 1-phase 200 V AC to 240 V AC, 50 Hz/60 Hz
Control circuit (line voltage)
1-phase 200 V AC to 240 V AC, 50/60 Hz (Note 2)
Interface (SELV)
24 V DC (required current capacity: LECSB2-T□, 300 mA)
Control method
Sine-wave PWM control, current control method
Safety observation function (STO)
IEC/EN 61800-5-2 (Note 3)
EN ISO 13849-1 Category 3 PL e, IEC 61508 SIL 3,
EN 62061 SIL CL 3, and EN 61800-5-2
Mean time to dangerous failure
MTTFd ≥ 100 [years] (314a)
Effectiveness of fault monitoring of a system or
subsystem
DC = Medium, 97.6 [%]
Average probability of dangerous failures per hour
PFH = 6.4 × 10
-9
[1/h]
Mission time
T
M
= 20 [years]
Response performance
8 ms or less (STO input off → energy shut off)
Pollution degree
2 (IEC/EN 60664-1)
Overvoltage category
1-phase 100 V AC/200 V AC: II (IEC/EN 60664-1),
3-phase 200 V AC/400 V AC: III (IEC/EN 60664-1)
Protective class
I (IEC/EN 61800-5-1)
Short-circuit current rating (SCCR)
100 kA
App. 4.8.2 Driver dimensions
W D
H
Driver
Variable dimension [mm]
Mass [kg]
W
H
D
LECSB2-T5 / LECSB2-T7
40
168
135
0.8
LECSB2-T8
40
168
170
1.0
LECSB2-T9
60
168
185
1.4
App. 4.8.3 Mounting hole
da
c
b
c
d1
a1
e
Driver
Variable dimensions [mm]
Screw
size
a
a1
b
c
d
e
LECSB2-T5 / LECSB2-T7 / LECSB2-T8
6
6
156 ± 0.5
6
M5
LECSB2-T9
12
12
156 ± 0.5
6
42 ± 0.3
M5
