11. OPTIONS AND PERIPHERAL EQUIPMENT
11 - 10

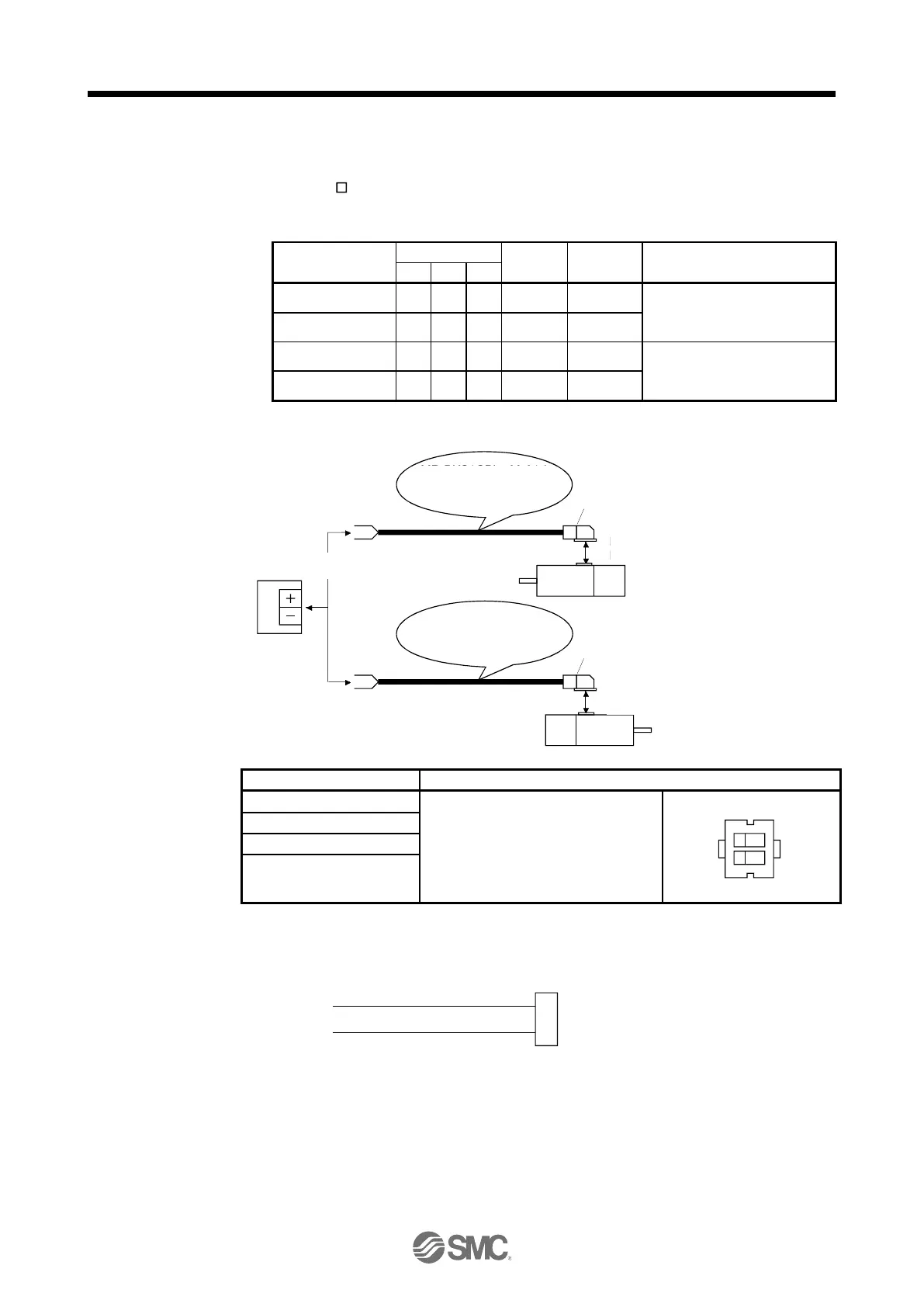

11.1.5 Lock cables
These cables are lock cables for the LE-- series servo motors. The numerals in the Cable length field of the
table are the symbols entered in the part of the cable model. The cables of the lengths with the symbols are
available.
Cable model
Cable length
Protective
structure
Flex life
Application
2m
5m
10m
LE-CSB-S□A
2
5
A
IP65
Standard
For LE-- servo motor
Axis side lead
LE-CSB-S□B
2
5
A
IP65
Standard
For LE-- servo motor
Counter axis side lead
LE-CSB-R□A
2
5
A
IP65
Robot cable
For LE-- servo motor
Axis side lead
LE-CSB-R□B
2
5
A
IP65
Robot cable
For LE-- servo motor
Counter axis side lead
(1) Connection of power supply for lock and servo motor
1)
Servo motor
HF-MP
HF-KP
24VDC power
supply for
electromagnetic
brake
MR-BKS1CBL M-A2-L
MR-BKS1CBL M-A2-H
MR-BKS2CBL03M-A2-L
1)
Servo motor
HF-MP
HF-KP
MR-BKS1CBL M-A1-L
MR-BKS1CBL M-A1-H
MR-BKS2CBL03M-A1-L
or
Cable model
1) For lock connector
LE-CSB-S□A
Connector: JN4FT02SJ1-R
Hood, socket insulator
Bushing, ground nut
Contact: ST-TMH-S-C1B-100-(A534G)
Crimping tool: CT160-3-TMH5B
(Japan Aviation Electronics Industry)
B1
B2
1
2
View seen from wiring side.
Signal layout
LE-CSB-S□B
LE-CSB-R□A
LE-CSB-R□B
(2) Internal wiring diagram
AWG 20
AWG 20
B1
B2
MR-BKS1CBL M-A1-H MR-BKS1CBL M-A2-H
MR-BKS2CBL03M-A1-L MR-BKS2CBL03M-A2-L
(Note)
Note. These are not shielded cables.
LE--
Servo motor
LE--
lock
LE-CSB-SA
LE-CSB-SB
LE-CSB-RA
LE-CSB-RB
LE-CSB-SA
LE-CSB-SB
LE-CSB-RA
LE-CSB-RB
