1. FUNCTIONS AND CONFIGURATION
1 - 15

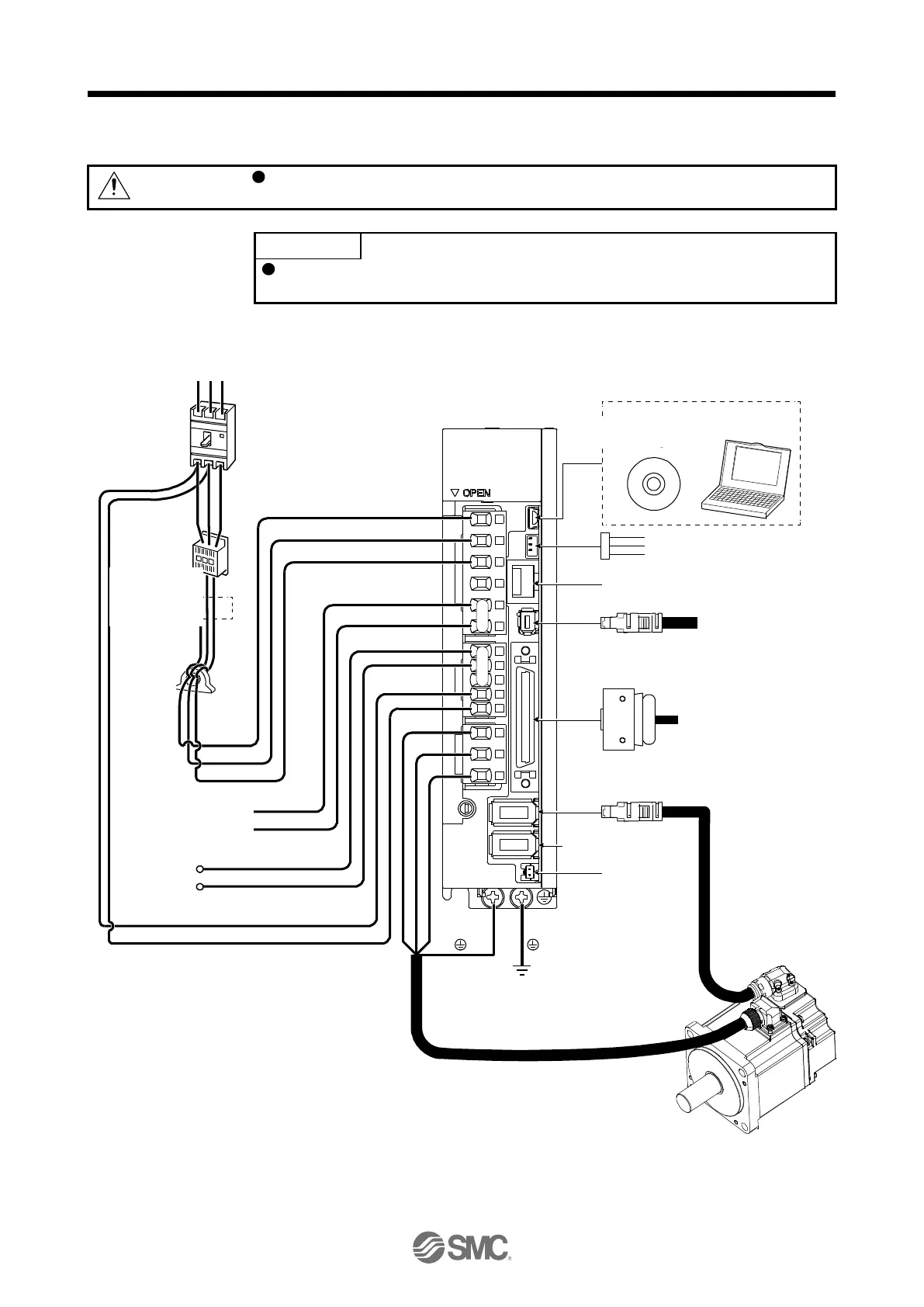

1.8 Configuration including peripheral equipment
CAUTION
Connecting a servo motor of the wrong axis to U, V, W, or CN2 of the driver may
cause a malfunction.
POINT
Equipment other than the driver and servo motor are optional or recommended
products.
(1) LECSB2-T□
The diagram shows LECSB2-T7.
CN4
CN5
P+
C
L11
L21
P3
P4
MR Configurator2
CN3
CN6
CN8
CN1
D (Note 5)
CN2
W
V
U
L1
L2
L3
R S T
CN2L (Note 4)
Line noise
filter
(FR-BSF01)
Regenerative
option
Servo motor
Personal
computer
(Note 3)
Magnetic
contactor
(MC)
Power factor
improving DC
reactor
(FR-HEL)
Molded-case
circuit breaker
(MCCB)
To safety relay or
MR-J3-D05 safety
logic unit
Junction terminal block
(Note 2)
Power
supply
Battery
To RS-422/RS-485 communication
controller, parameter unit, etc.
(Note 1)
Analog monitor
STO Cable
manufactured
by Mitsubishi
Electric
Corporation
(Note1)
setup software
（MR Configurator2
TM
）
manufac
tured
by
Mitsubi
shi
Electri
c
Corpora
tion
I/O Connector or
I/O Cable
