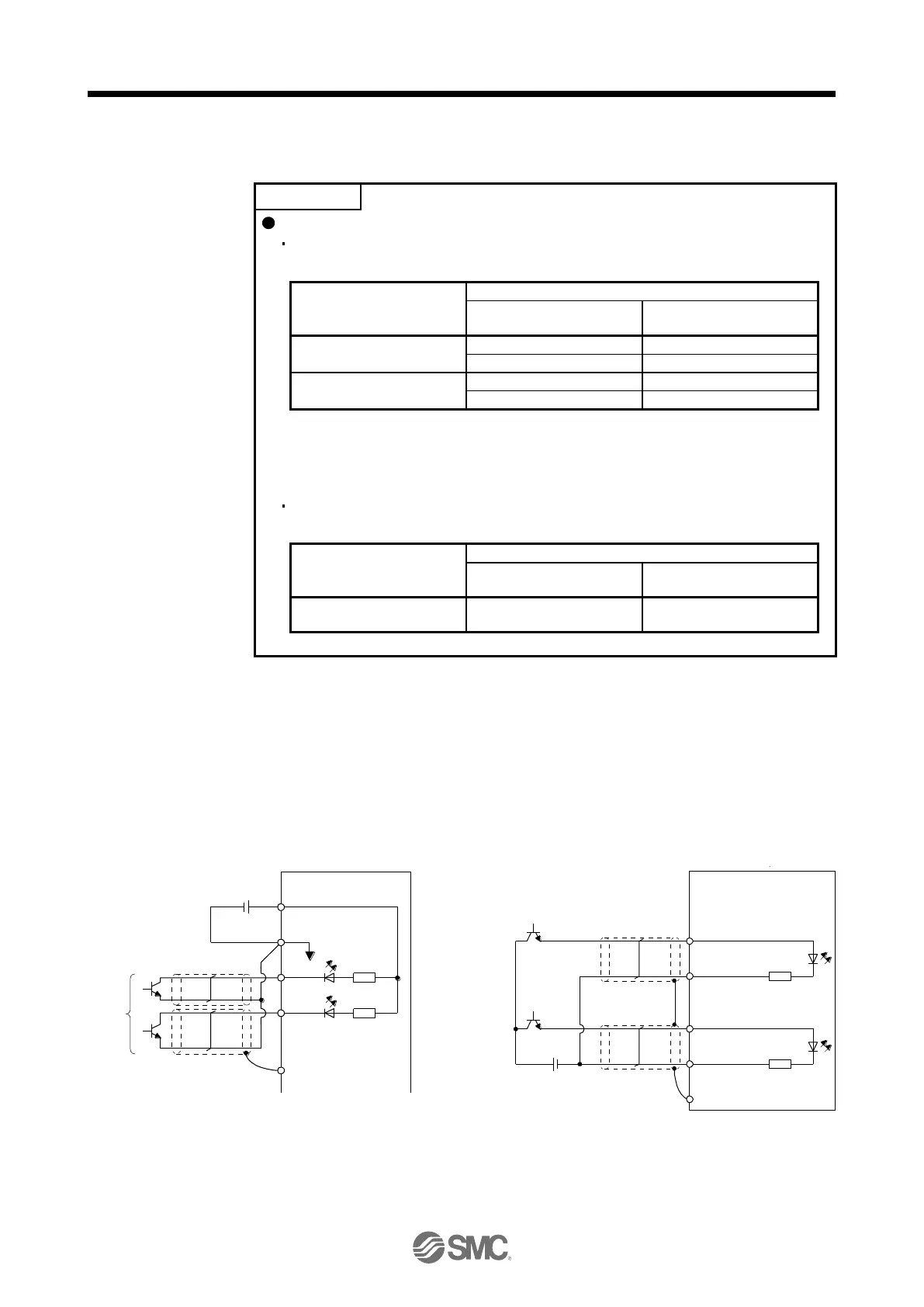

3. SIGNALS AND WIRING
3 - 32
3.6 Detailed explanation of signals
3.6.1 Position control mode
POINT
Adjust the logic of a positioning module and command pulse as follows.
MITSUBISHI ELECTRIC SYSTEM & SERVICE CO., LTD MELSEC iQ-R
series/MELSEC-Q series/MELSEC-L series positioning module
Signal type
Command pulse logic setting
Positioning module
Pr. 23 setting
LECSB2-T
driver [Pr. PA13]
setting
Open-collector type
Positive logic
Positive logic (_ _ 0 _)
Negative logic
Negative logic (_ _ 1 _)
Differential line driver type
Positive logic (Note)
Negative logic (_ _ 1 _)
Negative logic (Note)
Positive logic (_ _ 0 _)
Note.
For MITSUBISHI ELECTRIC SYSTEM & SERVICE CO., LTD MELSEC iQ-R series,
MELSEC-Q series and MELSEC-L series, the logic means N-side waveform. Therefore,
reverse the input pulse logic of the driver.
MITSUBISHI ELECTRIC SYSTEM & SERVICE CO., LTD MELSEC-F series
positioning module
Signal type
Command pulse logic setting
Positioning module (fixed)
LECSB2-T□ driver
[Pr. PA13] setting
Open-collector
Differential line driver
Negative logic
Negative logic (_ _ 1 _)
(1) Pulse train input
(a) Input pulse waveform selection
You can input command pulses in any of three different forms, and can choose positive or negative
logic. Set the command pulse train form in [Pr. PA13]. Refer to section 5.2.1 for details.
(b) Connection and waveform
1) Open-collector type
Connect as follows.
1.2 k Ω
Approx.
1.2 k Ω
Approx.
SD
Servo amplifier
OPC
PP
NP
DOCOM
24 V DC
(Note)
Servo amplifier
PP2
PG
VCES 1.0 V
ICEO 100 μA
(Note)
(Note)
Approx. 20 mA
Approx. 20 mA
NP2
SD
NG
VCES 1.0 V
ICEO 100 μA
24 V DC ± 10%
500 mA
Approx.
1.2 k Ω
Approx.
1.2 k Ω
For sink input interface
For source input interface
Note.
Pulse train input interface is comprised of a photocoupler.
If a resistor is connected to the pulse train signal line, it may malfunction due to reduction in current.
Driver
Driver
