SMC Networks LECSB2-T Series User Manual

16 - 171

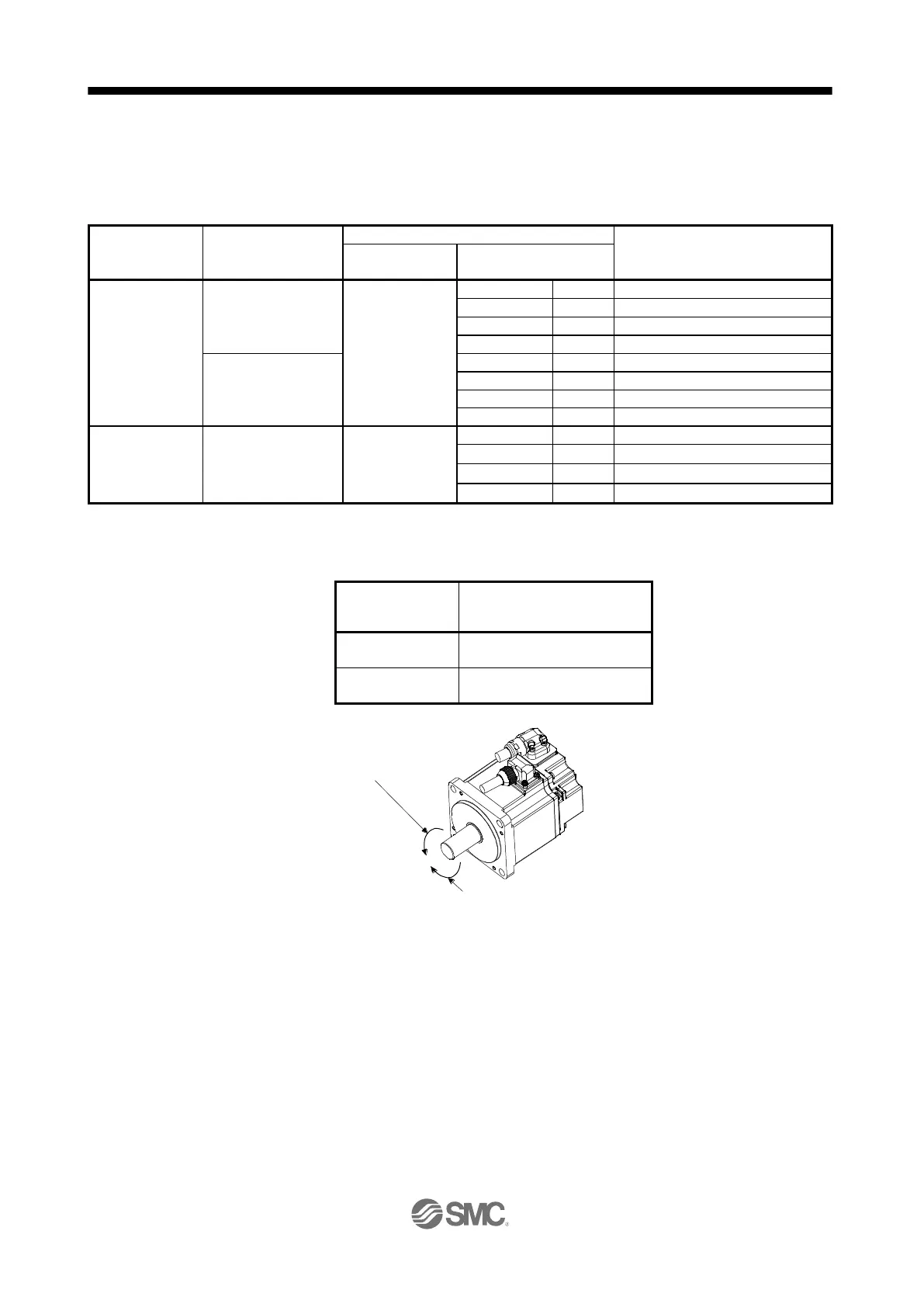

16. POSITIONING MODE
16.11.3 Basic settings of signals and parameters
(1) Parameter
(a) Setting range of the position data
The following shows the setting of [Pr. PA01].
Command method
Travel command
[Pr. PT01]
Position data input range
Positioning
command method
Position data unit
Absolute value
command method
Absolute value travel
command
("MOV", "MOVA")
_ _ _ 0
_ 0 _ _
[mm]
-999999 to 999999 [×10
STM
μm]
_ 1 _ _
[inch]
-999999 to 999999 [×10
(STM-4)
inch]
_ 2 _ _
[degree]
-360.000 to 360.000
_ 3 _ _
[pulse]
-999999 to 999999
Incremental value
travel command
("MOVI", "MOVIA")
_ 0 _ _
[mm]
-999999 to 999999 [×10
STM
μm]
_ 1 _ _
[inch]
-999999 to 999999 [×10
(STM-4)
inch]
_ 2 _ _
[degree]
-999.999 to 999.999
_ 3 _ _
[pulse]
-999999 to 999999
Incremental value
command method
Incremental value
travel command
("MOVI", "MOVIA")
_ _ _ 1
_ 0 _ _
[mm]
-999999 to 999999 [×10
STM
μm]
_ 1 _ _
[inch]
-999999 to 999999 [×10
(STM-4)
inch]
_ 2 _ _
[degree]
-999.999 to 999.999
_ 3 _ _
[pulse]
-999999 to 999999
(b) Rotation direction selection/travel direction selection ([Pr. PA14])
Select the servo motor rotation direction when ST1 (Forward rotation start) is switched on.
[Pr. PA14] setting
Servo motor rotation direction
when ST1 (Forward rotation
start) is switched on
0
(Initial value)
CCW rotation with + position data
CW rotation with - position data
1
CW rotation with + position data
CCW rotation with - position data
Forward rotation
(CCW)
Reverse rotation
(CW)
