16. POSITIONING MODE
16.13.3 Group specification
CAUTION
Set only one driver capable of returning data in a group. If multiple driver return
data under commands from the PC or PLC...etc, the driver may malfunction.
When using multiple driver, you can set parameters with commands per group.
Up to 6 groups of a to f can be set. Set groups for each station with the communication commands of
Mitsubishi general-purpose AC servo protocol.

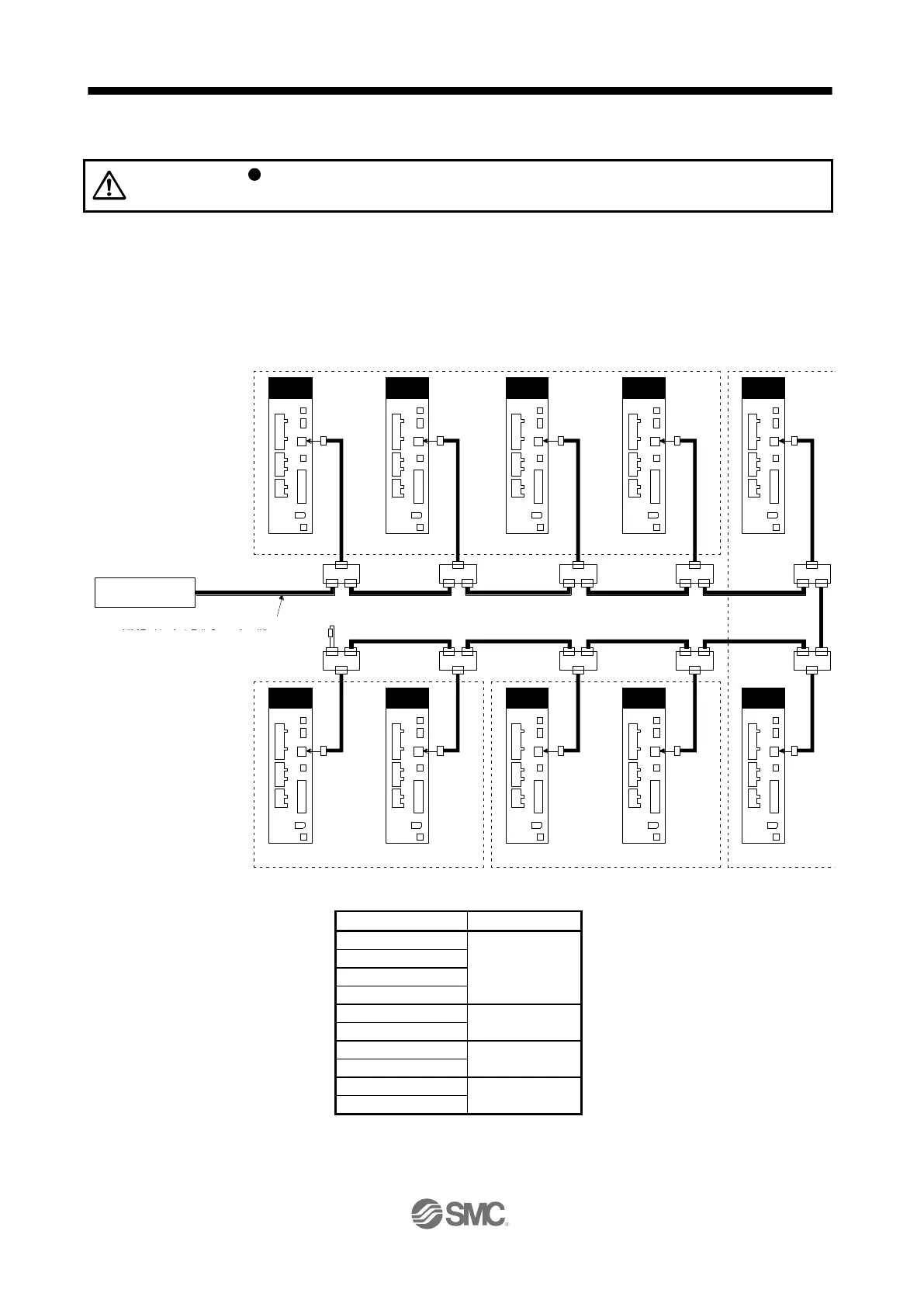

(1) Group setting example
Driver station No.
Group setting
Station 0
Station 1
a
Station 2
Station 3
Station 4
b
Station 5
Station 6
c
Station 7
Station 8
d
Station 9
For cable connection diagram, refer to section
14.1.1 of "MR-J4-_A_(-RJ) Servo Amplifier
Instruction Manual".
CN3CN3CN3
Axis No. 3
(station 2)
Axis No. 4
(station 3)
Axis No. 5
(station 4)
RS-422/RS-485
compatible controller
CN3CN3
Axis No. 1
(station 0)
Axis No. 2
(station 1)
CN3CN3CN3
Axis No. 8
(station 7)
Axis No. 7
(station 6)
Axis No. 6
(station 5)
CN3CN3
Axis No. 10
(station 9)
Axis No. 9
(station 8)
Group a
Group b
Group d Group c
