4. STARTUP
4 - 32
4.5.8 Output signal (DO) forced output
POINT
When the servo system is used in a vertical lift application, turning on MBR
(Electromagnetic lock interlock) by the DO forced output after assigning it to
connector CN1 will release the electromagnetic lock, causing a drop. Take drop
preventive measures on the machine side.
Output signals can be switched on/off forcibly independently of the servo status. This function is used for
output signal wiring check, etc. This operation must be performed in the servo off state by turning off the SON
(Servo-on).

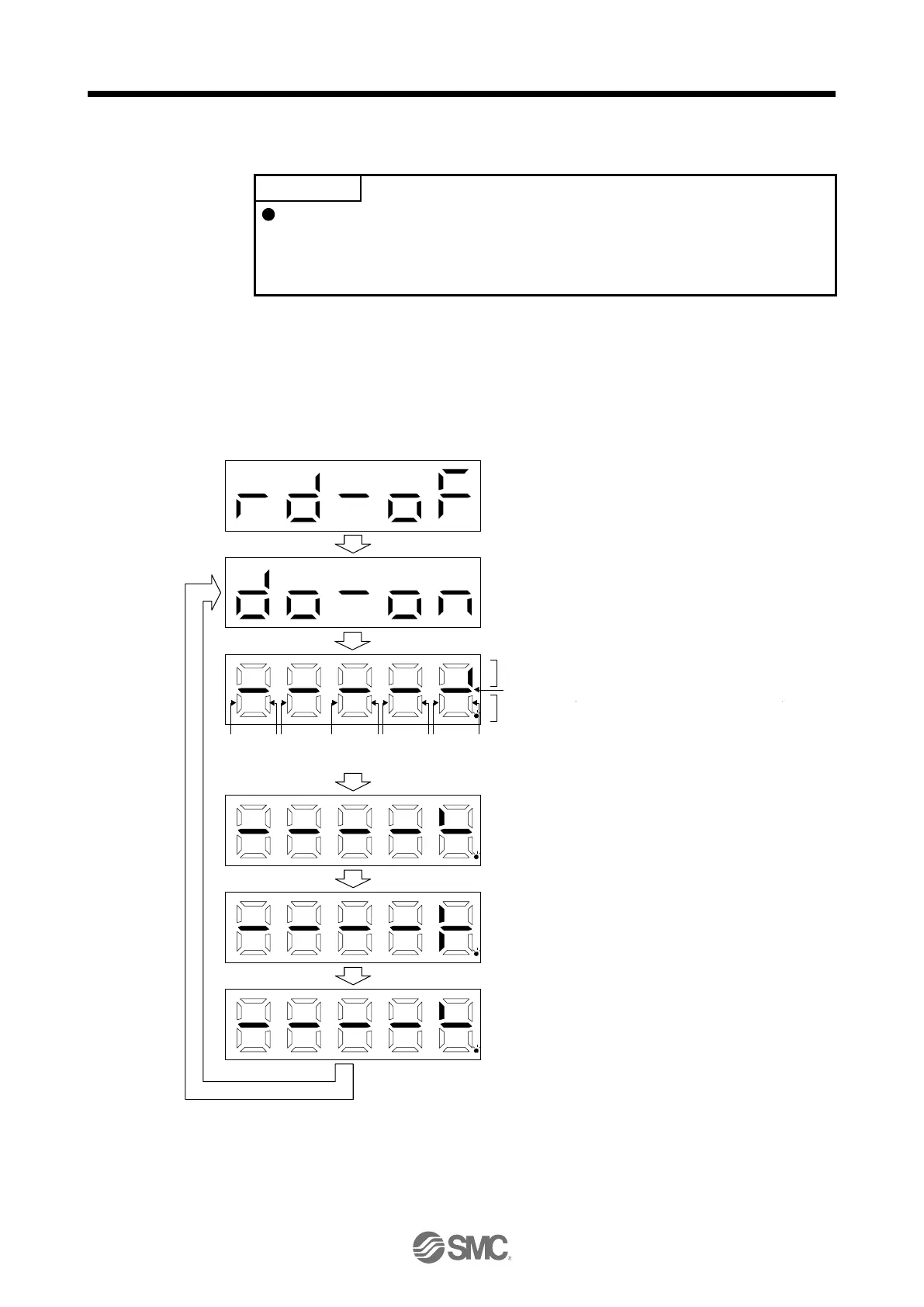

Operation
Call the display screen shown after power-on. Using the "MODE" button, show the diagnostic screen.
……
……
……
……
……
Switch on/off the signal below the lit segment.
Indicates on/off of output signal. Definitions of
on/off are the same as those for the external I/O
signals. (Light on: on, light off: off)
Press the "UP" button three times.
Press the "SET" button for 2 s or more.
CN1
33
CN1
48
CN1
22
CN1
25
CN1
23
CN1
24
CN1
49
Press the "MODE" button once.
Press the "UP" button once.
CN1-24 switches on.
(Between CN1-24 and DOCOM are connected.)
The lit LED moves to the upper LED of CN1-24.
Press the "DOWN" button once.
CN1-24 switches off.
Press the "SET" button for 2 s or more.
Always lit (The leftmost digit is always lit only for MR-J4-_A_
-RJ servo amplifiers with software version B3 or later.)
CN1
14
(Note)
CN1
13
(Note)
