4. STARTUP
4 - 24

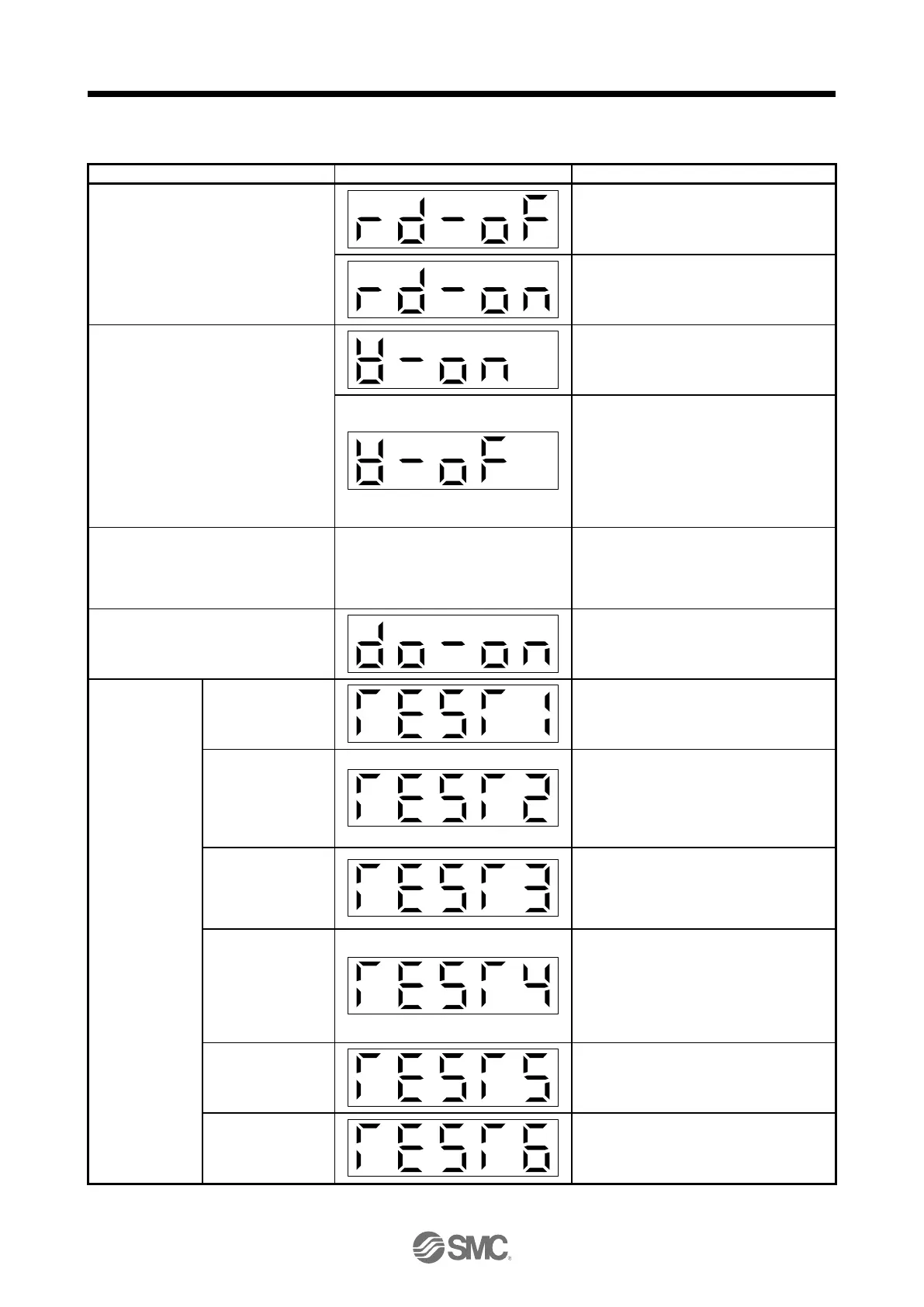

4.5.4 Diagnostic mode
Not ready
Indicates that the driver is being initialized or
an alarm has occurred.
Ready
Indicates that the servo was switched on after
completion of initialization and the driver is
ready to operate.
Drive recorder enabled/disabled display
Drive recorder enabled
When an alarm occurs in the status, the drive
recorder will operate and write the status of
occurrence.
Drive recorder enabled
The drive recorder will not operate on the
following conditions.
1. You are using the graph function of Setup
software (MR Configurator2
TM
).
2. You are using the machine analyzer
function.
3. [Pr. PF21] is set to "-1".
External I/O signal display
This Indicates the on/off status of external I/O
signal.
The upper segments correspond to the input
signals and the lower segments to the output
signals.
Output signal (DO) forced output
This allows digital output signal to be
switched on/off forcibly.
For details, refer to section 4.5.8.
JOG operation can be performed when there
is no command from an external PC or
PLC...etc.
For details, refer to section 4.5.9 (2).
Positioning operation can be performed when
there is no command from an external PC or
PLC...etc.
Setup software (MR Configurator2
TM
) is
required to perform positioning operation.
For details, refer to section 4.5.9 (3).
Without connecting the servo motor, output
signals or status display monitoring can be
provided in response to the input device as if
the servo motor is actually running.
For details, refer to section 4.5.9 (4).
Machine analyzer
operation
Merely connecting the driver allows the
resonance point of the mechanical system to
be measured.
Setup software (MR Configurator2
TM
) is
required to perform machine analyzer
operation.
Refer to section 11.7 for details.
