1. FUNCTIONS AND CONFIGURATION
1 - 13
g）STO cable(3m)
* MR-D05UDL3M of Mitsubishi Electric Corporation.
It is a cable that connects the driver with the equipment when the safety function is used.
Do not use other cables.

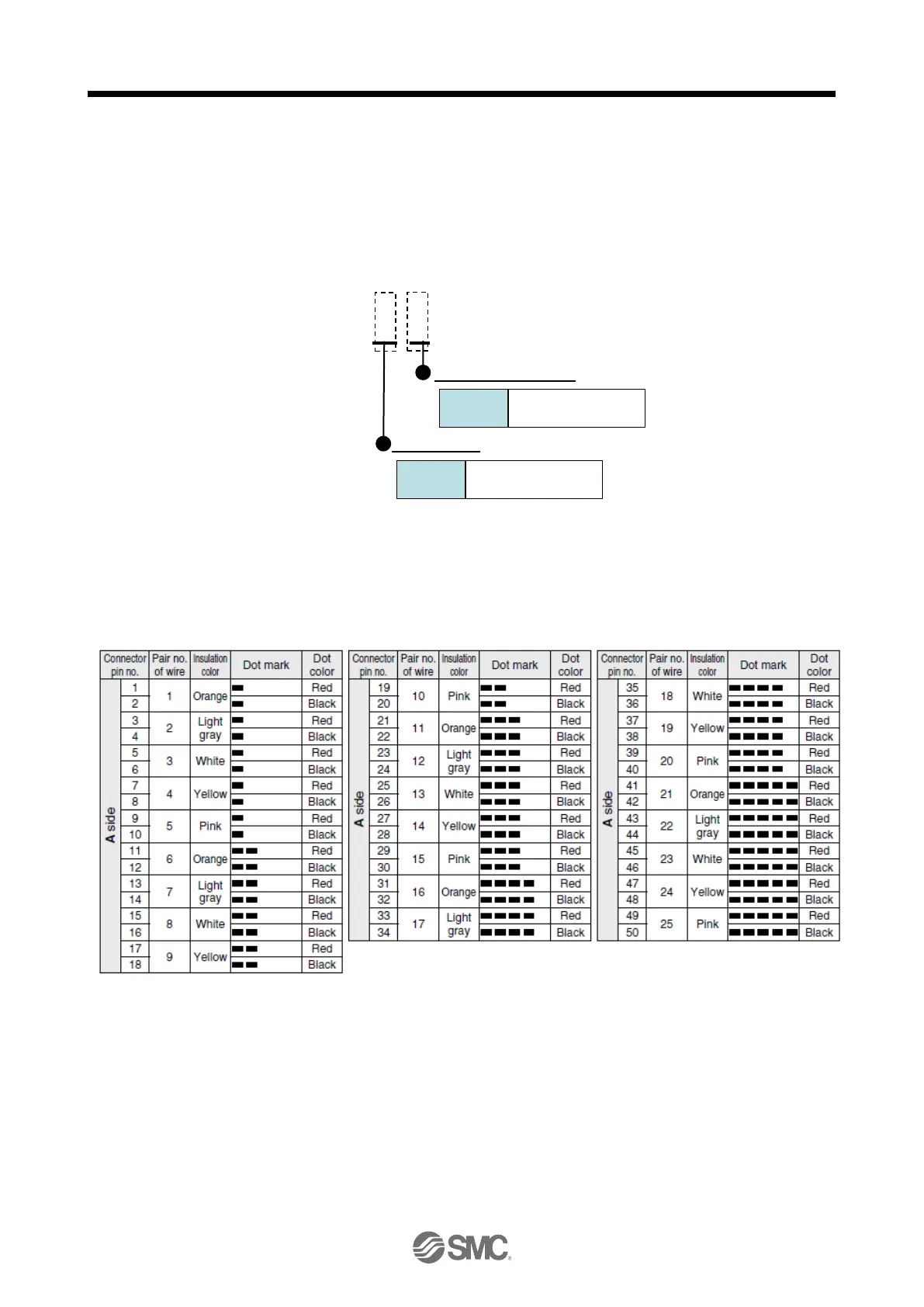

h） I/O Connector
*LEC-CSNB-1 is 10120-3000PE (Connector)/ 10320-52F0-008（Shell kit）of Sumitomo 3M
Limited or equivalent goods.
*Conductor size:AWG24
Wiring
LEC-CSNB-1: Pin nos. 1 to 50
ＬＥＣ-MR-D05UDL3M
ＬＥC-CＳＮB-1
Driver Type
LECSB2-T
B
Cable length(L)[m]
1.5
1
(In other than the positioning mode, the electric actuator
cannot operate unless the forced stop (EM2) wiring is
performed, so an I/O connector or I/O cable is required.)
