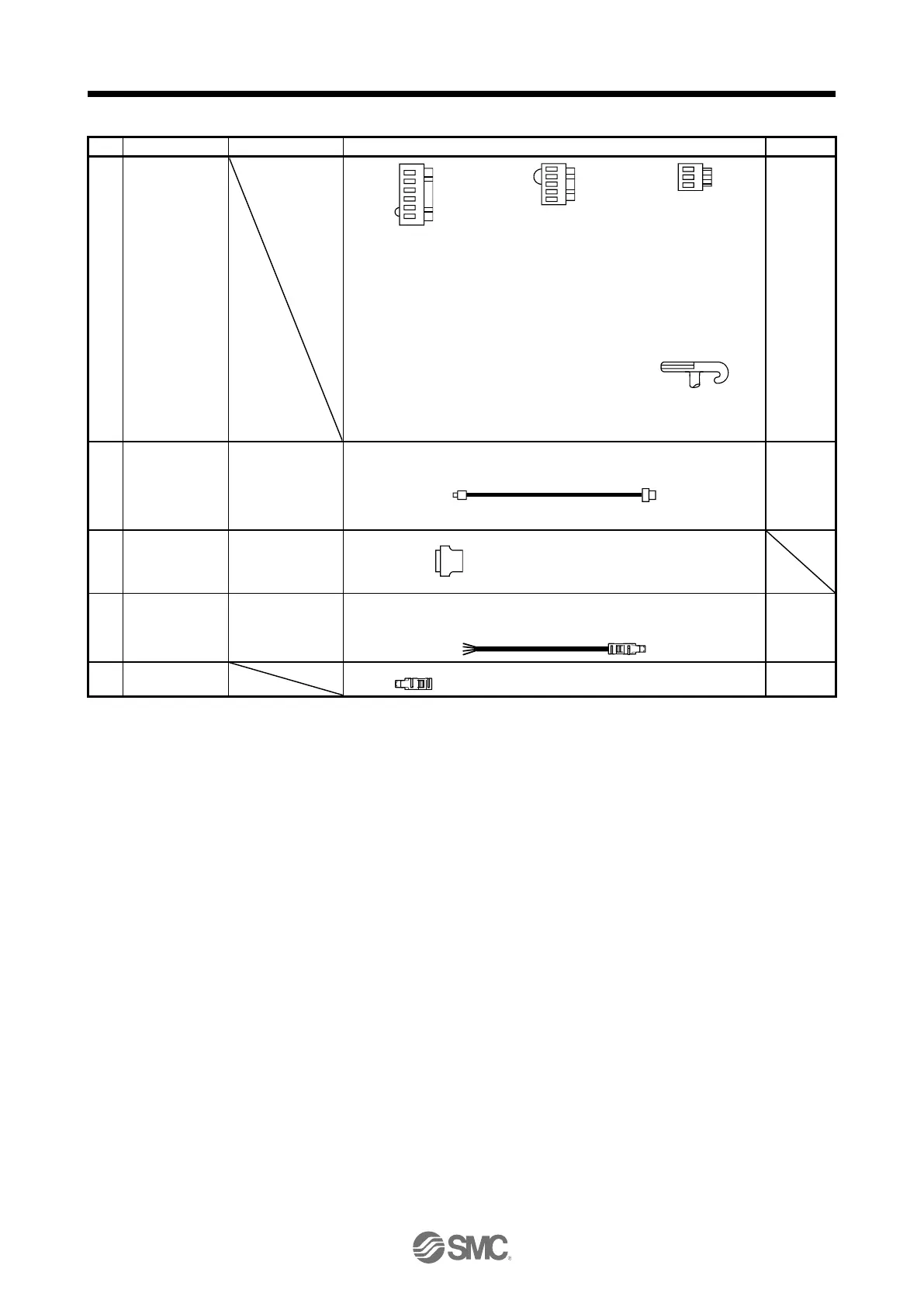

11. OPTIONS AND PERIPHERAL EQUIPMENT
11 - 4
No.
Product name
Model
Description
Application
1)
Driver power
connector set
Supplied
with drivers
of 750 W
or less
CNP1 Connector:
K05A01490216
(MITSUBISHI
ELECTRIC SYSTEM &
SERVICE CO., LTD)
(Open tool comes with)
CNP2 Connector:
K05A01490209
(MITSUBISHI
ELECTRIC SYSTEM &
SERVICE CO., LTD)
CNP3 Connector:
K05A01490210
(MITSUBISHI
ELECTRIC SYSTEM &
SERVICE CO., LTD)
Applicable wire size: 0.8 mm
2
to 2.1 mm
2
(AWG 18 to 14)
Insulator OD: to 3.9 mm
Open tool
(CNP1 Connector
comes with)
2)
USB cable
LEC-MR-J3USB
Cable length: 3 m
CN5 connector
mini-B connector (5 pins)
Personal computer connector
A connector
For
connection
with PC-AT
compatible
personal
computer
3)
Connector set
LE-CSNS
Connector: 10120-3000PE
Shell kit: 10320-52F0-008
(Sumitomo 3M Limited or
equivalent)
4)
STO cable
LEC-MR-
D05UDL3M
Connector set: 2069250-1
(TE Connectivity)
Connection
cable for
the CN8
connector
5)
Short-circuit
connector
Supplied
with driver
