11. OPTIONS AND PERIPHERAL EQUIPMENT

11 - 26

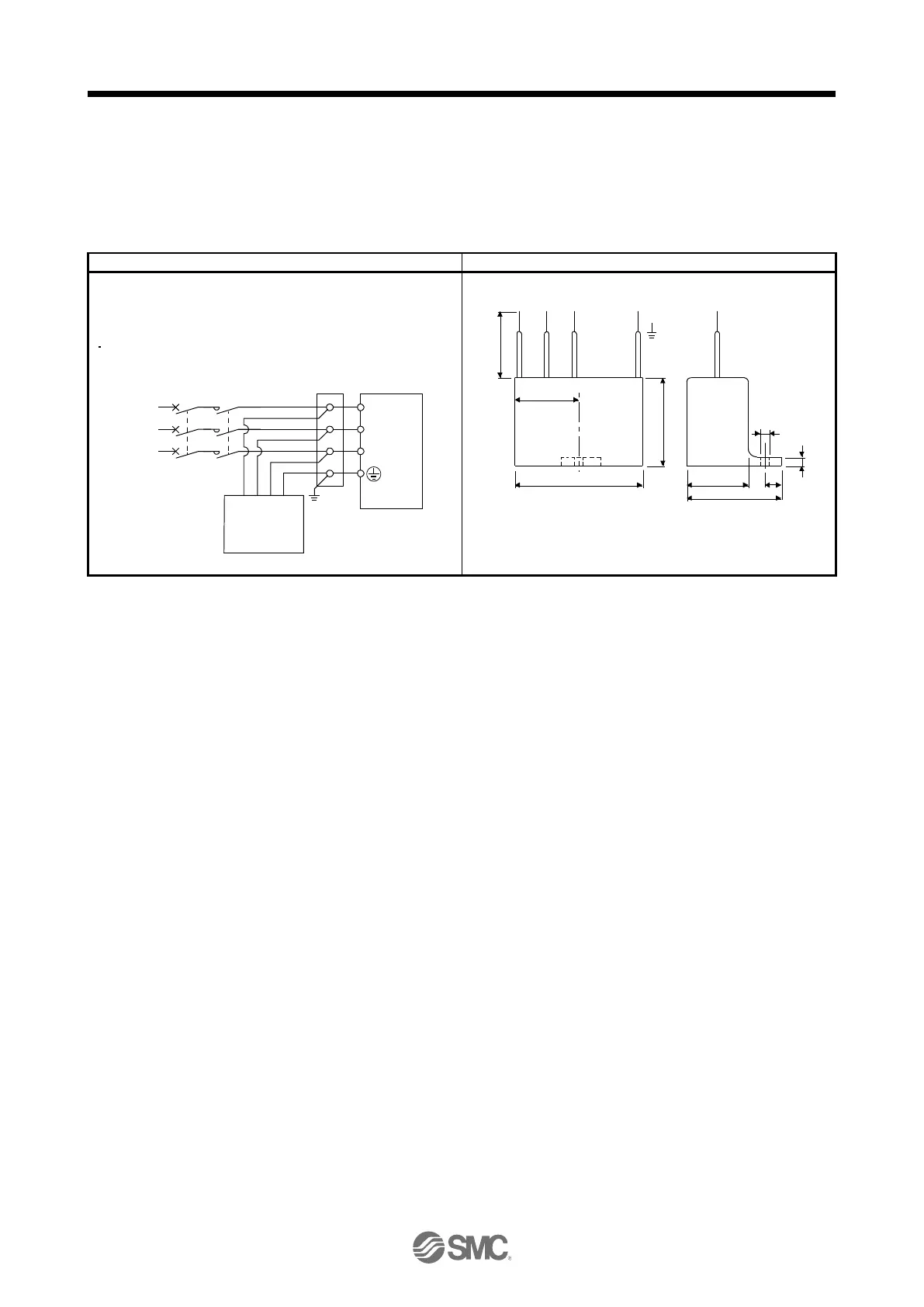

(e) Radio noise filter (FR-BIF of Mitsubishi Electric Corparation)

This filter is effective in suppressing noises radiated from the power supply side of the driver

especially in 10 MHz and lower radio frequency bands. The FR-BIF is designed for the input

only.

200 V class: FR-BIF

Connection diagram

Dimensions [Unit: mm]

Make the connection cables as short as possible. Grounding is

always required.

When using the FR-BIF with a single-phase power supply, always

insulate the lead wires that are not used for wiring.

LECSB2-T

□

Radio noise

filter

Servo amplifier

Power

supply

MCCB

Terminal

block

Leakage current: 4 mA

Red BlueWhite Green

φ5

hole

Approx. 300

Driver
